购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

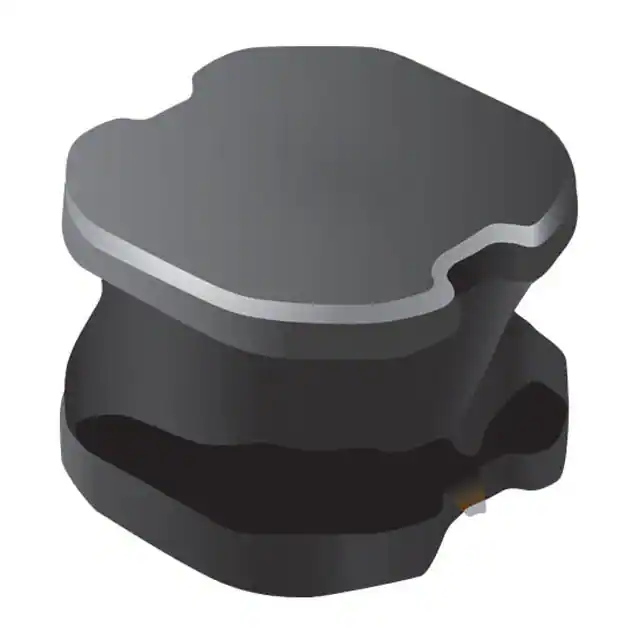

SRN6045-2R2YFIXED IND 2.2UH 3.5A 25.1MOHM SM |
33,036 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 6A | Shielded | 25.1mOhm Max | 15 @ 7.96MHz | 35MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045-150MFIXED IND 15UH 1.9A 95.8MOHM SMD |
24,818 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.9 A | 2.3A | Shielded | 95.8mOhm Max | 17 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045-100MFIXED IND 10UH 2.5A 58.6MOHM SMD |
22,232 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 3A | Shielded | 58.6mOhm Max | 17 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045-470MFIXED IND 47UH 1.1A 257 MOHM SMD |
16,332 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.3A | Shielded | 257mOhm Max | 13 @ 2.52MHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SRN6045-101MFIXED IND 100UH 700MA 494MOHM SM |
9,635 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 700 mA | 800mA | Shielded | 494mOhm Max | 22 @ 796kHz | 5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
.jpg)
|
LPWI201610H1R0TFIXED IND 1UH 3.1A 45 MOHM SMD |
7,366 |
|
规格书 |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.1 A | 3.6A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SRN6045-330MFIXED IND 33UH 1.4A 188 MOHM SMD |
1,184 |
|
规格书 |
SRN6045 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.5A | Shielded | 188mOhm Max | 17 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|

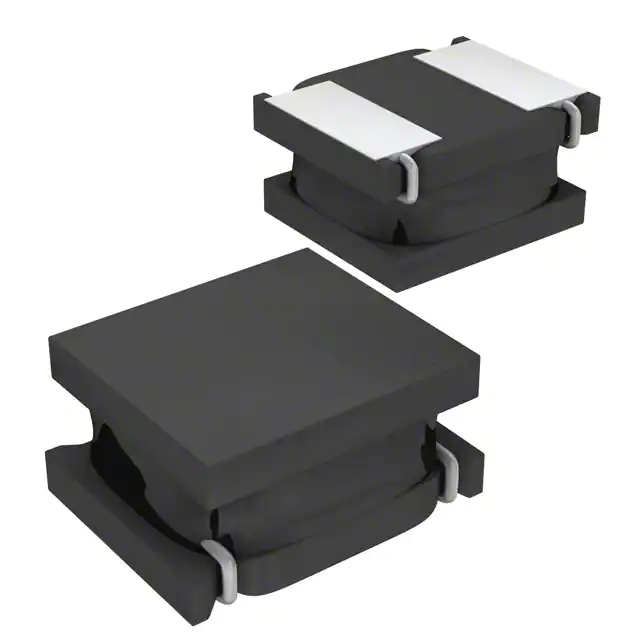

IFSC1008ABER1R0M01FIXED IND 1UH 2.4A 0.043OHM SMD |
27,589 |
|
规格书 |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 2.4 A | 2.5A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IFSC1008ABER100M01FIXED IND 10UH 810MA 0.409OHM SM |
18,945 |
|
规格书 |
IFSC-1008AB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 810 mA | 800mA | Shielded | 409mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
.jpg)
|

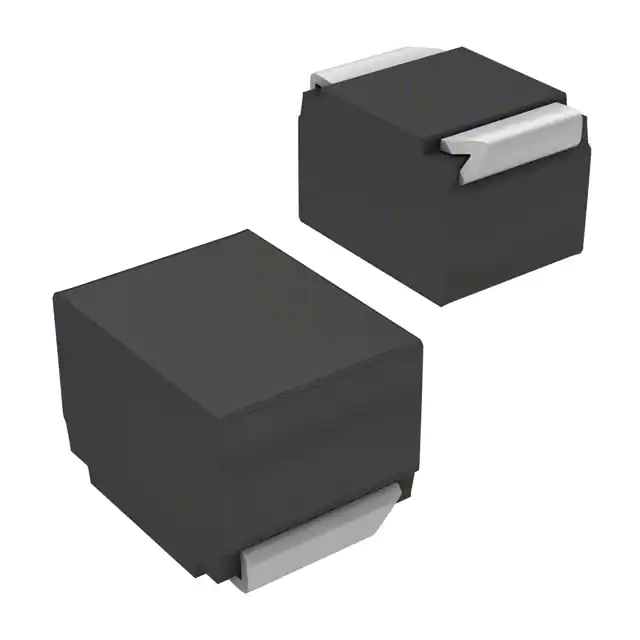

B82422H1104K000FIXED IND 100UH 150MA 4.8OHM SMD |
3,570 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 150 mA | - | Unshielded | 4.8Ohm Max | 20 @ 796kHz | 8MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
TFM252012ALMA4R7MTAAFIXED IND 4.7UH 1.6A 200MOHM SMD |
3,418 |
|
规格书 |
TFM-ALMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 1.6 A | 1.9A | Shielded | 200mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
0420CDMCCDS-3R3MCFIXED IND 3.3UH 3.5A 87MOHM SMD |
35,067 |
|
规格书 |
0420CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 3.3 µH | ±20% | 3.5 A | 4.7A | Shielded | 87mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.079" (2.00mm) |
|
SRP2512A-4R7MFIXED IND 4.7UH 1.55A 235MOHM SM |
23,685 |
|
规格书 |
SRP2512A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.55 A | 1.9A | Shielded | 235mOhm Max | 39 @ 1MHz | 37MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
B82422H1223K000FIXED IND 22UH 330MA 1 OHM SMD |
20,317 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 330 mA | - | Unshielded | 1Ohm Max | 12 @ 2.52MHz | 21MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1103K000FIXED IND 10UH 500MA 460MOHM SMD |
10,395 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 500 mA | - | Unshielded | 460mOhm Max | 12 @ 2.52MHz | 30MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
TFM201610ALMA1R0MTAAFIXED IND 1UH 3.1A 60 MOHM SMD |
10,303 |
|
规格书 |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

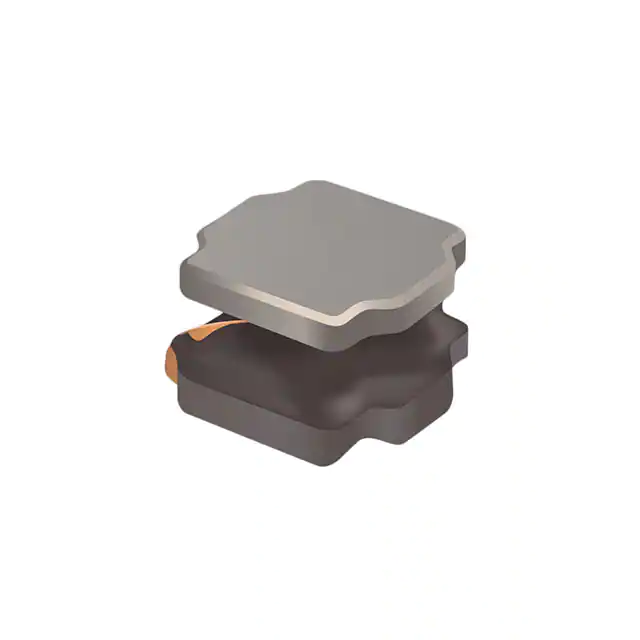

SRN6045TA-6R8MFIXED IND 6.8UH 3.6A 34 MOHM SMD |
63,253 |
|
规格书 |
SRN6045TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.6 A | 5.7A | Semi-Shielded | 34mOhm | 15 @ 1MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
B82422H1472K000FIXED IND 4.7UH 700MA 250MOHM SM |
28,226 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 700 mA | - | Unshielded | 250mOhm Max | 10 @ 2.52MHz | 46MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1474K000FIXED IND 470UH 76MA 20 OHM SMD |
24,491 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 76 mA | - | Unshielded | 20Ohm Max | 20 @ 796kHz | 3.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
B82422H1222K000FIXED IND 2.2UH 800MA 160MOHM SM |
21,551 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 800 mA | - | Unshielded | 160mOhm Max | 10 @ 2.52MHz | 90MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
