购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

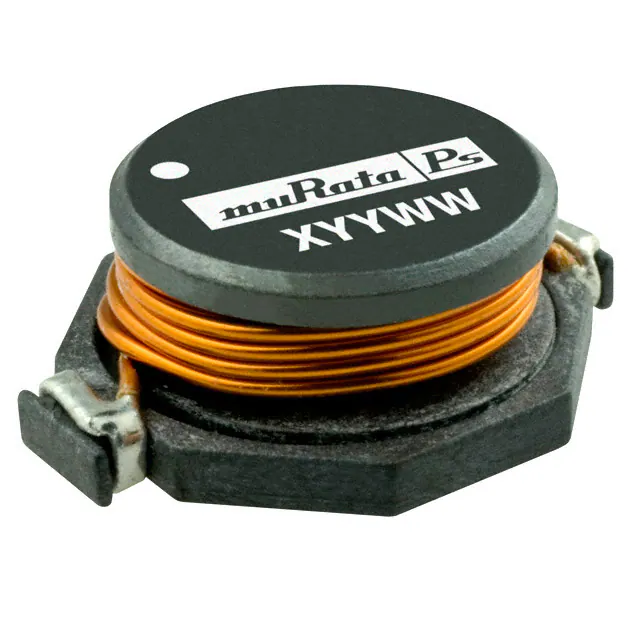

28153CFIXED IND 15UH 4.77A 28MOHM SMD Murata Power Solutions Inc. |
3,018 |
|
规格书 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | - | 4.77 A | - | Unshielded | 28mOhm Max | 31 @ 1MHz | 17.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28155CFIXED IND 1.5MH 410MA 2.62OHM SM Murata Power Solutions Inc. |
1,217 |
|
规格书 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 mH | - | 410 mA | - | Unshielded | 2.62Ohm Max | 19.8 @ 800kHz | 3.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28332CFIXED IND 3.3UH 9.3A 7.5MOHM SMD Murata Power Solutions Inc. |
4,029 |
|
规格书 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | - | 9.3 A | - | Unshielded | 7.5mOhm Max | 34.6 @ 1MHz | 42MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28333CFIXED IND 33UH 3.22A 63MOHM SMD Murata Power Solutions Inc. |
3,495 |
|
规格书 |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | - | 3.22 A | - | Unshielded | 63mOhm Max | 42.8 @ 1MHz | 11.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

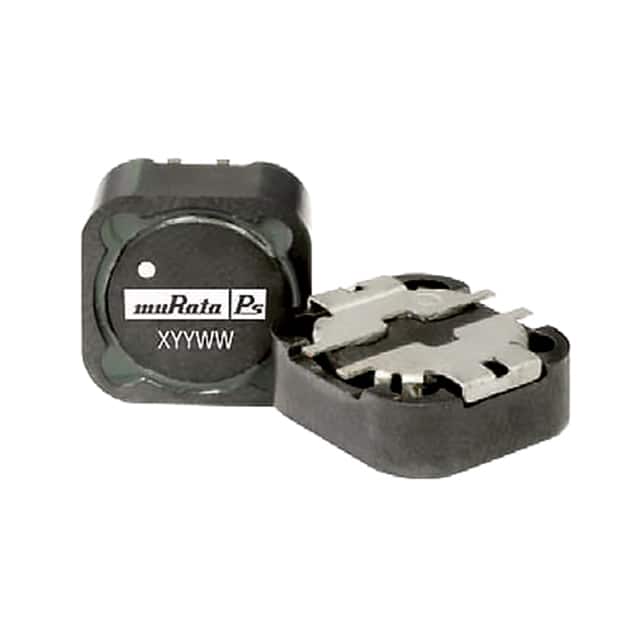

47100SCFIXED IND 10UH 3.8A 32.3MOHM SMD Murata Power Solutions Inc. |
2,177 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | - | Shielded | 32.3mOhm Max | 22 @ 1MHz | 22MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47101SCFIXED IND 100UH 1.3A 267MOHM SMD Murata Power Solutions Inc. |
3,711 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.3 A | - | Shielded | 267mOhm Max | 20 @ 800kHz | 8MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47220SCFIXED IND 22UH 2.7A 62.9MOHM SMD Murata Power Solutions Inc. |
3,027 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.7 A | - | Shielded | 62.9mOhm Max | 29 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47221SCFIXED IND 220UH 800MA 629MOHM SM Murata Power Solutions Inc. |
3,000 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 800 mA | - | Shielded | 629mOhm Max | 20 @ 800kHz | 6MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47330SCFIXED IND 33UH 2.2A 91.1MOHM SMD Murata Power Solutions Inc. |
4,920 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 2.2 A | - | Shielded | 91.1mOhm Max | 23 @ 1MHz | 13MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47470SCFIXED IND 47UH 1.9A 168MOHM SMD Murata Power Solutions Inc. |
2,601 |
|
规格书 |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.9 A | - | Shielded | 168mOhm Max | 23 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
