BOM
购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

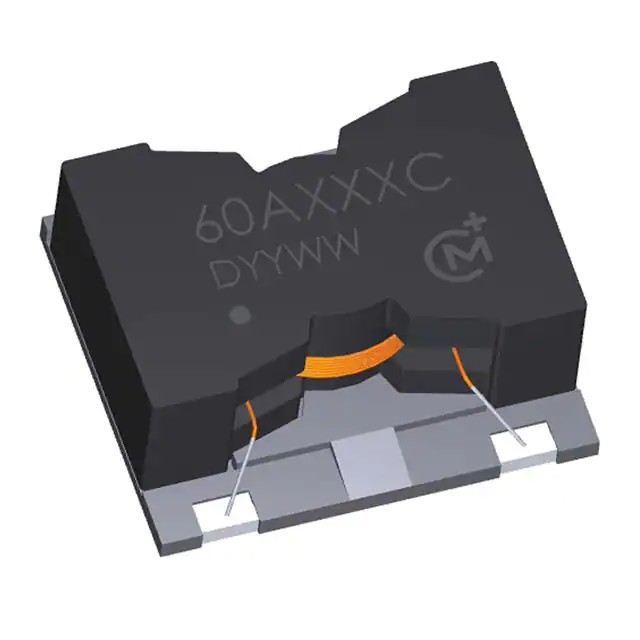

60A233CFIXED IND 23UH 8.4A 12 MOHM SMD Murata Power Solutions Inc. |
2,356 |
|
规格书 |
6000A | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 23 µH | ±10% | 8.4 A | 11A | Unshielded | 12mOhm Max | - | 13MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.748" W (22.00mm x 19.00mm) | 0.472" (12.00mm) |
|
32100CFIXED IND 10UH 4.5A 20 MOHM TH Murata Power Solutions Inc. |
2,097 |
|
规格书 |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 10 µH | ±15% | 4.5 A | - | Unshielded | 20mOhm Max | 3.1 @ 1MHz | 69MHz | - | -40°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|

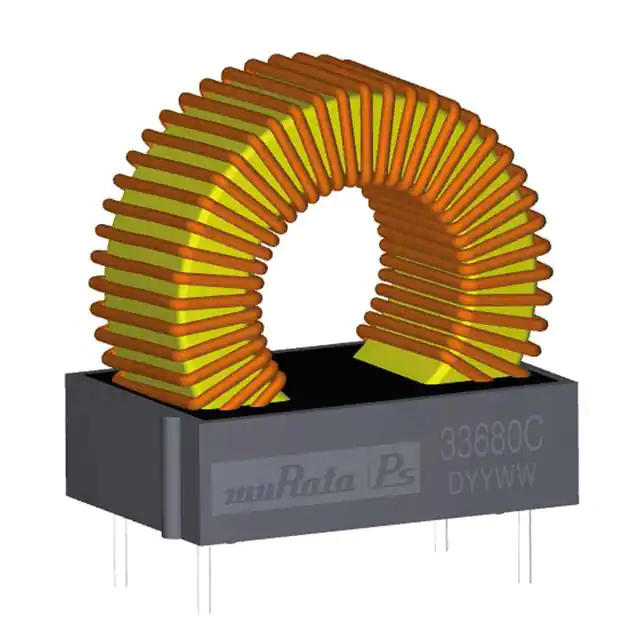

33151CFIXED IND 150UH 2A 84 MOHM TH Murata Power Solutions Inc. |
2,841 |
|
规格书 |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 150 µH | ±15% | 2 A | - | Unshielded | 84mOhm Max | 3.8 @ 800kHz | 7.2MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
|
33331CFIXED IND 330UH 1.3A 126 MOHM TH Murata Power Solutions Inc. |
1,567 |
|
规格书 |
3300 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 330 µH | ±15% | 1.3 A | - | Unshielded | 126mOhm Max | 3.4 @ 800kHz | 1.9MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 1.142" L x 0.642" W (29.00mm x 16.30mm) | 1.220" (31.00mm) |
|
17226CFIXED IND 22MH 50MA 75 OHM TH Murata Power Solutions Inc. |
4,160 |
|
规格书 |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 22 mH | ±10% | 50 mA | - | Unshielded | 75Ohm Max | 100 @ 50kHz | 340kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17685CFIXED IND 6.8MH 80MA 20 OHM TH Murata Power Solutions Inc. |
2,260 |
|
规格书 |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 6.8 mH | ±10% | 80 mA | - | Unshielded | 20Ohm Max | 145 @ 150kHz | 850kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17336CFIXED IND 33MH 40MA 108 OHM TH Murata Power Solutions Inc. |
1,460 |
|
规格书 |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 mH | ±10% | 40 mA | - | Unshielded | 108Ohm Max | 95 @ 50kHz | 280kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17106CFIXED IND 10MH 70MA 34 OHM TH Murata Power Solutions Inc. |
2,010 |
|
规格书 |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 mH | ±10% | 70 mA | - | Unshielded | 34Ohm Max | 155 @ 150kHz | 620kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
15103CFIXED IND 10UH 9.01A 10.6MOHM TH Murata Power Solutions Inc. |
3,352 |
|
规格书 |
1500 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 µH | ±10% | 9.01 A | - | Unshielded | 10.6mOhm Max | 112 @ 1MHz | 30MHz | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.661" Dia (16.80mm) | 0.839" (21.30mm) |
|
|
15104CFIXED IND 100UH 2.62A 110MOHM TH Murata Power Solutions Inc. |
1,133 |
|
规格书 |
1500 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 100 µH | ±10% | 2.62 A | - | Unshielded | 110mOhm Max | 89 @ 1MHz | 3MHz | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.661" Dia (16.80mm) | 0.839" (21.30mm) |
