购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHA0420NSGR47MFIXED IND 470NH 7A 14 MOHM SMD Mentech Technology USA Inc. |
3,000 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 7 A | 9.5A | - | 14mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.071" (1.80mm) |
|
MHA0530NSG1R5MFIXED IND 1.5UH 6A 22 MOHM SMD Mentech Technology USA Inc. |
2,000 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 6 A | 8A | - | 22mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.110" (2.80mm) |
|
MHA0724NSG1R0MFIXED IND 1UH 9A 13.5 MOHM SMD Mentech Technology USA Inc. |
1,500 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 9 A | 15A | - | 13.5mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.087" (2.20mm) |
|
MHA0730NSGR47MFIXED IND 470NH 18A 4.1MOHM SMD Mentech Technology USA Inc. |
1,500 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 18 A | 20A | - | 4.1mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.110" (2.80mm) |
|
MHA0730NSG2R2MFIXED IND 2.2UH 7A 17.5MOHM SMD Mentech Technology USA Inc. |
1,500 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 7 A | 10A | - | 17.5mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.110" (2.80mm) |
|
MHA0730SGR15MAFIXED IND 150NH 35A 0.9MOHM SMD Mentech Technology USA Inc. |
1,495 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 35 A | 41A | - | 0.9mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.110" (2.80mm) |
|

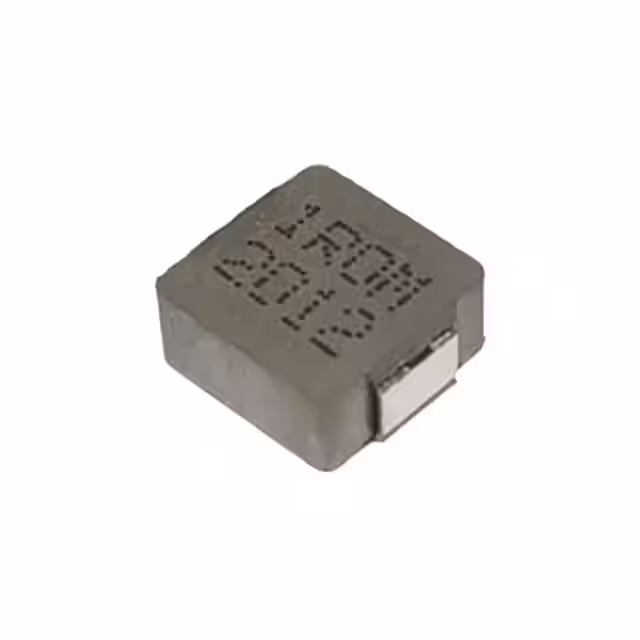

MHA0730NSG1R0MFIXED IND 1UH 10A 7.5 MOHM SMD Mentech Technology USA Inc. |
1,495 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 10 A | 15A | - | 7.5mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.110" (2.80mm) |
|

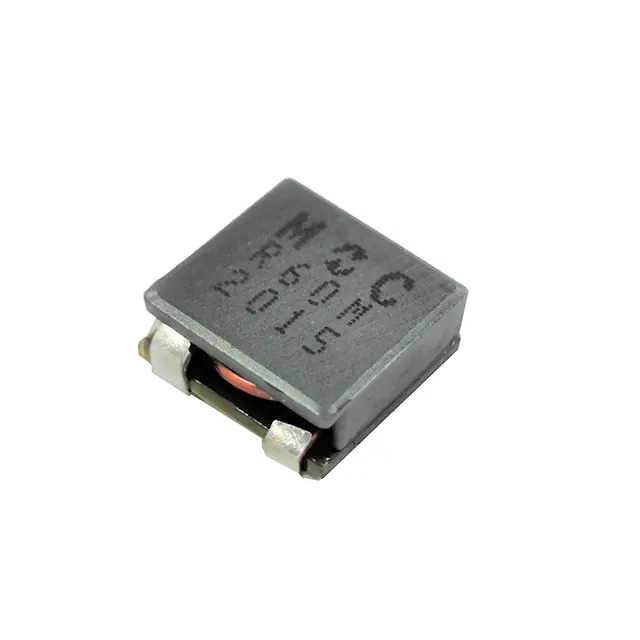

MHW1306SG1R0MFIXED IND 1UH 20A 1.18 MOHM SMD Mentech Technology USA Inc. |
450 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 1 µH | ±20% | 20 A | 30A | - | 1.18mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" L x 0.492" W (12.70mm x 12.50mm) | 0.240" (6.10mm) |
|

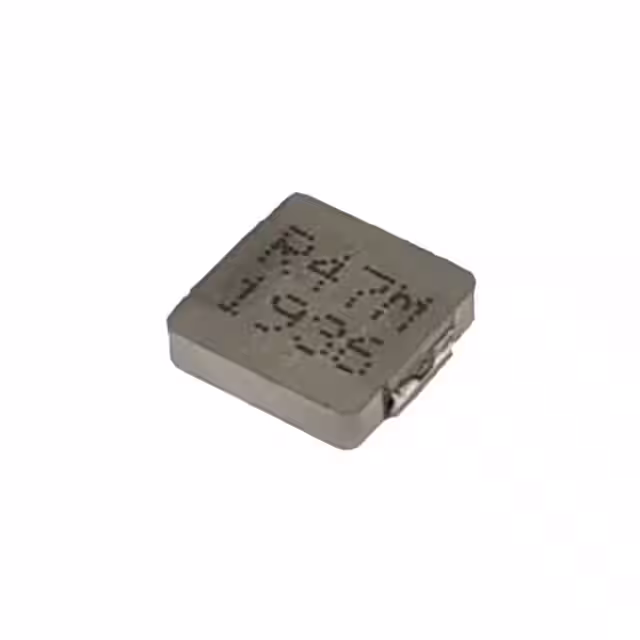

MHA0718NSGR47MFIXED IND 470NH 11A 8.4MOHM SMD Mentech Technology USA Inc. |
2,000 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 11 A | 18A | - | 8.4mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (6.90mm x 6.50mm) | 0.071" (1.80mm) |
|
MHA1040NSGR15MFIXED IND 150NH 48A 0.55MOHM SMD Mentech Technology USA Inc. |
700 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 48 A | 65A | - | 0.55mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.272" L x 0.256" W (11.15mm x 10.00mm) | 0.150" (3.80mm) |
