购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

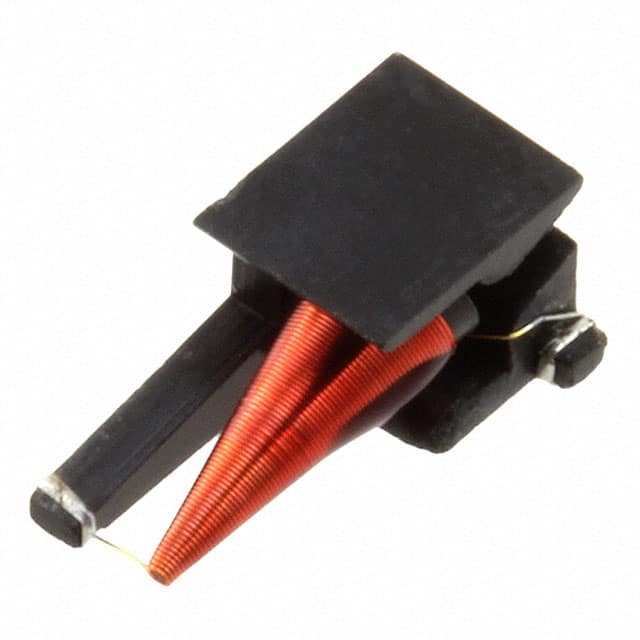

506WLSN6R00KT236TFIXED IND 6UH 236MA 2.8 OHM SMD KYOCERA AVX |
2,152 |
|
规格书 |
506WLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6 µH | ±10% | 236 mA | - | Unshielded | 2.8Ohm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.245" L x 0.133" W (6.22mm x 3.38mm) | 0.117" (2.97mm) |
|
LMLP0405M5R6DTASFIXED IND 5.6UH 1.8A 115MOHM SMD KYOCERA AVX |
837 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.6 µH | ±20% | 1.8 A | 3.5A | Shielded | 115mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.157" W (4.45mm x 4.00mm) | 0.079" (2.00mm) |
|
LMLP0506MR47DTASFIXED IND 470NH 13.5A 8.5MOHM SM KYOCERA AVX |
409 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 13.5 A | 12A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|
L04022R7BHNTRFIXED IND 2.7NH 250MA 250MOHM SM KYOCERA AVX |
615 |
|
规格书 |
Accu-L® 0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.1nH | 250 mA | - | Unshielded | 250mOhm Max | 15 @ 450MHz | 9.5GHz | - | - | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
|

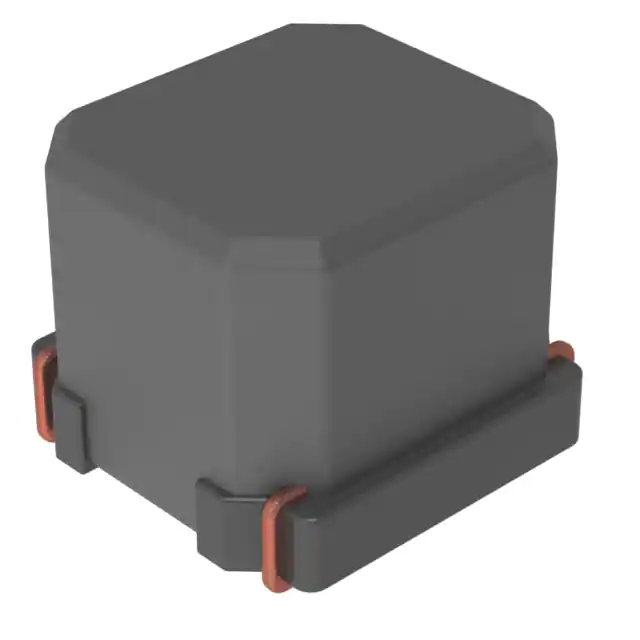

LMLP1011MR47DTASFIXED IND 470NH 25A 1.55MOHM SMD KYOCERA AVX |
484 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 25 A | 35A | Shielded | 1.55mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
LMLP07C7M2R2DTASFIXED IND 2.2UH 10A 12 MOHM SMD KYOCERA AVX |
1,326 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 10 A | 14A | Shielded | 12mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
LMLP07C7M4R7DTASFIXED IND 4.7UH 6.5A 30.8MOHM SM KYOCERA AVX |
798 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 6.5 A | 10A | Shielded | 30.8mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
LMLP07C7M330DTASFIXED IND 33UH 2A 200 MOHM SMD KYOCERA AVX |
695 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 2 A | 3.5A | Shielded | 200mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|

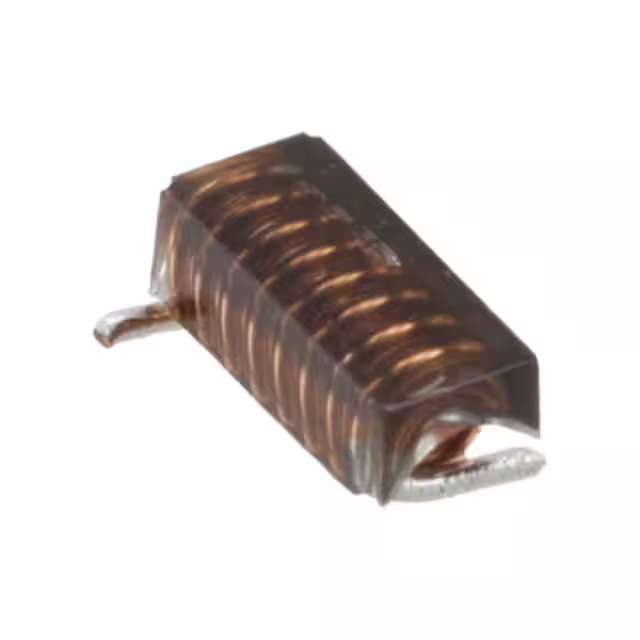

AL12B35N5JTRFIXED IND 35.5NH 4A 6.8 MOHM SMD KYOCERA AVX |
556 |
|
规格书 |
AL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 35.5 nH | ±5% | 4 A | - | Unshielded | 6.8mOhm Max | 112 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
|
LMLP13B3M1R2DTASFIXED IND 1.2UH 30A 2.5MOHM SMD KYOCERA AVX |
429 |
|
规格书 |
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 30 A | 48A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.504" W (13.50mm x 12.80mm) | 0.256" (6.50mm) |
