购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFC212236A-471K470uH, 10%, 54.5mOhm, 26.3Amp Ma ITG Electronics, Inc. |
1,332 |
|
规格书 |
PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 470 µH | ±10% | 13.4 A | 26.3A | Shielded | 54.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC212236A-681K680uH, 10%, 74.0mOhm, 21.9Amp Ma ITG Electronics, Inc. |
1,020 |
|
规格书 |
PFC212236A | Radical, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Alloy | 680 µH | ±10% | 11.2 A | 21.9A | Shielded | 74mOhm | - | - | - | -55°C ~ 130°C | - | - | Through Hole | - | - | 2.370" (60.20mm) |
|
|
PFC282820B-900MHFPFC CHOKE 90.0UH, 28.0A, 12.5 M ITG Electronics, Inc. |
1,023 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 90 µH | ±20% | 15.5 A | 14.4A | Unshielded | 12.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-330MHFPFC CHOKE 33.0UH, 46.0A, 4.5 M ITG Electronics, Inc. |
4,756 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 33 µH | ±20% | 26 A | 23.7A | Unshielded | 4.5mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-161MHFPFC CHOKE 165.0UH, 20.8A, 22.3M ITG Electronics, Inc. |
3,714 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 165 µH | ±20% | 11.7 A | 10.7A | Unshielded | 22.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-121MHFPFC CHOKE 125.0UH, 23.8A, 16.7M ITG Electronics, Inc. |
3,301 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 125 µH | ±20% | 13.5 A | 12.3A | Unshielded | 16.7mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|
|
PFC282820B-221MHFPFC CHOKE 220.0UH, 17.9A, 31.0M ITG Electronics, Inc. |
4,364 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 220 µH | ±20% | 10 A | 9.2A | Unshielded | 31mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.787" W (27.50mm x 20.00mm) | 1.102" (28.00mm) |
|

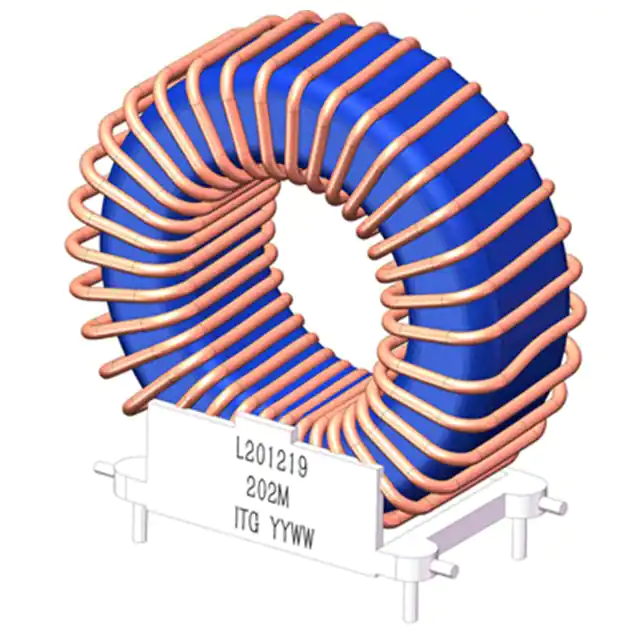

L201219-831MHF836.7uH, 20%, 80 mOhm DCR, 5.2A ITG Electronics, Inc. |
2,918 |
|
规格书 |
L201219 | Radial, Vertical Cylinder, 4 Leads (Open) | Bulk | Active | Toroidal | Alloy Powder | 836.7 µH | ±20% | 5.2 A | 3.3A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Through Hole | - | 1.319" L x 0.787" W (33.50mm x 20.00mm) | 1.457" (37.00mm) |
|
|
PFC282822B-171MHFPFC CHOKE 175.0UH, 20.4A, 23.8M ITG Electronics, Inc. |
4,498 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 175 µH | ±20% | 11 A | 10.5A | Unshielded | 23.8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
|
|
PFC282822B-381MHFPFC CHOKE 380.0UH, 14.0A, 56.3M ITG Electronics, Inc. |
4,738 |
|
规格书 |
- | Radial, Horizontal, 4 Leads | Bulk | Active | Wirewound | Alloy Powder | 380 µH | ±20% | 7 A | 7.2A | Unshielded | 56.3mOhm | - | - | - | -55°C ~ 150°C | 100 kHz | - | Through Hole | Radial | 1.083" L x 0.846" W (27.50mm x 21.50mm) | 1.102" (28.00mm) |
