购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHQ05-2N5J-RC2.5NH 5% CERAMIC CORE HI Q CHIP Allied Components International |
4,742 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 2.5 nH | ±5% | 1.6 A | - | Unshielded | 20mOhm Max | 80 @ 1.5GHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-48NG-RC48NH 2% CERAMIC CORE HI. Q CHIP Allied Components International |
1,920 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 48 nH | ±2% | 1.2 A | - | Unshielded | 110mOhm Max | 65 @ 500MHz | 1.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
|
CHQ05-30NG-RC30NH 2% CERAMIC CORE HI. Q CHIP Allied Components International |
2,376 |
|
规格书 |
- | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 30 nH | ±2% | 1.2 A | - | Unshielded | 95mOhm Max | 65 @ 500MHz | 1.95GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.070" W (2.29mm x 1.78mm) | 0.060" (1.52mm) |
|
AS40-180K-RC18UH 10% AXIAL SHIELDED INDUCTOR Allied Components International |
1,120 |
|
规格书 |
AS40 | Axial | Tape & Reel (TR) | Active | - | - | 18 µH | ±10% | 300 mA | 235mA | Shielded | 890mOhm Max | 45 @ 2.5MHz | 45MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
PCS104-221M-RC220UH 20% SMD POWER INDUCTOR Allied Components International |
1,471 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 920 mA | - | Shielded | 756mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PCS104-680M-RC68UH 20% PWR CHIP SHIELDED IND. Allied Components International |
2,997 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.5 A | - | Shielded | 213mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PCHC40-2R2M-RC2.2UH 20% PWR CHIP HIGH CURRENT Allied Components International |
1,574 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 7.4 A | 7.8A | Unshielded | 11mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|
AS40-182K-RC1800UH 10% AXIAL SHIELDED IND. Allied Components International |
1,876 |
|
规格书 |
AS40 | Axial | Bag | Active | - | - | 1.8 mH | ±10% | 50 mA | 30mA | Shielded | 29.9Ohm Max | 45 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
AS40-223K-RC22MH 10% AXIAL SHIELDED INDUCT. Allied Components International |
3,661 |
|
规格书 |
AS40 | Axial | Bag | Active | - | - | 22 mH | ±20% | 17 mA | 9mA | Shielded | 274Ohm Max | 27 @ 79kHz | 250kHz | - | -55°C ~ 125°C | 79 kHz | - | Through Hole | Axial | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

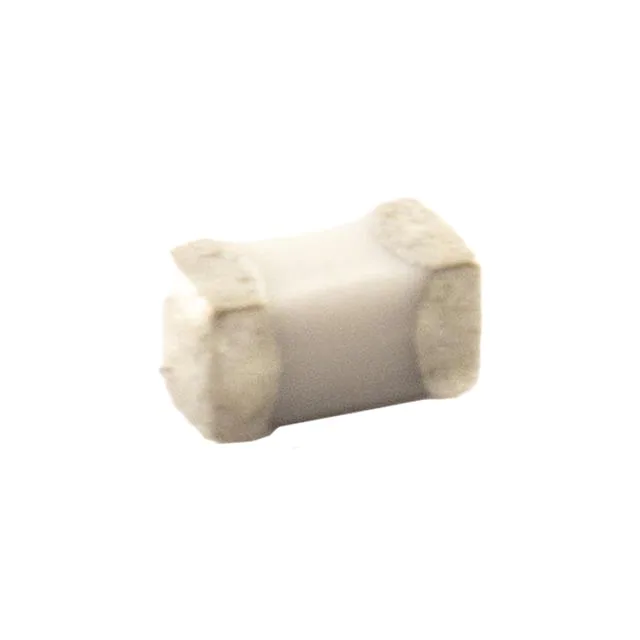

HFC03-3N9S-RC3.9NH 0.3NH 0402 HI-FREQ CHIP Allied Components International |
3,676 |
|
规格书 |
- | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | - | 3.9 nH | ±0.3nH | 400 mA | - | Unshielded | 180mOhm Max | 8 @ 100kHz | 6.1GHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
