购物车场效应晶体管（FETs）、MOSFETs
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 漏极到源极电压 (Vdss) | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | FET 特性 | 功耗（最大值） | 工作温度 | 等级 | 认证 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NVMFS5C450NLWFAFT3GMOSFET N-CH 40V 27A/110A 5DFN |
5,806 |
|
规格书 |
- | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 27A (Ta), 110A (Tc) | 4.5V, 10V | 2.8mOhm @ 40A, 10V | 2V @ 250µA | 35 nC @ 10 V | ±20V | 2100 pF @ 20 V | - | 3.7W (Ta), 68W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|

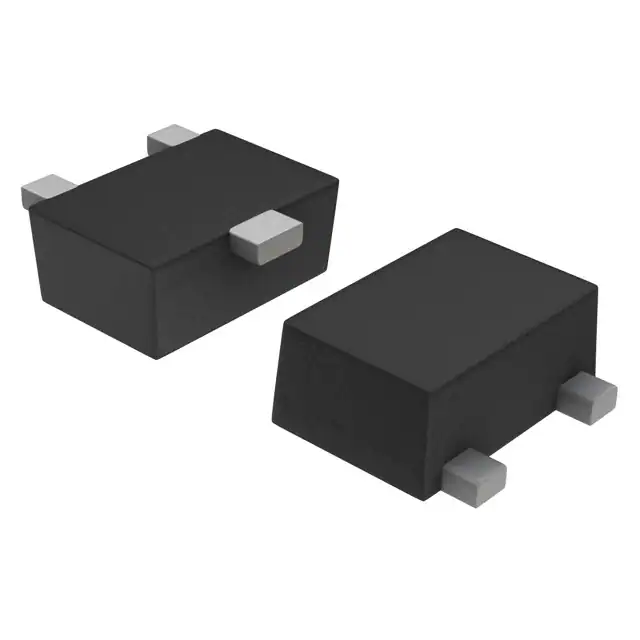

SSM3K35MFV,L3FMOSFET N-CH 20V 180MA VESM |
6,818 |
|
- |
- | SOT-723 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 180mA (Ta) | 1.2V, 4V | 3Ohm @ 50mA, 4V | 1V @ 1mA | - | ±10V | 9.5 pF @ 3 V | - | 150mW (Ta) | 150°C | - | - | Surface Mount | VESM |
|
TPCC8093,L1QMOSFET N-CH 20V 21A 8TSON |
6,672 |
|
- |
U-MOSVII | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 21A (Ta) | 2.5V, 4.5V | 5.8mOhm @ 10.5A, 4.5V | 1.2V @ 500µA | 16 nC @ 5 V | ±12V | 1860 pF @ 10 V | - | 1.9W (Ta), 30W (Tc) | 150°C | - | - | Surface Mount | 8-TSON Advance (3.1x3.1) |
|
TPCP8J01(TE85L,F,MMOSFET P-CH 32V 5.5A PS-8 |
2,906 |
|
- |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 32 V | 5.5A (Ta) | 4V, 10V | 35mOhm @ 3A, 10V | 2V @ 1mA | 34 nC @ 10 V | ±20V | 1760 pF @ 10 V | - | 2.14W (Ta) | 150°C (TJ) | - | - | Surface Mount | PS-8 |
|
AO4476ALMOSFET N-CH 30V 15A 8SOIC |
8,516 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta) | 4.5V, 10V | 7.7mOhm @ 15A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 1380 pF @ 15 V | - | 3.1W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
AOD5N50MMOSFET N-CH 500V 5A TO252 |
7,860 |
|
- |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 5A (Tc) | 10V | 1.6Ohm @ 2.5A, 10V | 4.5V @ 250µA | 14 nC @ 10 V | ±30V | 670 pF @ 25 V | - | 104W (Tc) | -50°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
AON6414ALMOSFET N-CH 30V 13A/30A 8DFN |
3,752 |
|
规格书 |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 30A (Tc) | 4.5V, 10V | 8mOhm @ 20A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 1380 pF @ 15 V | - | 2.3W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
|
AON6562MOSFET N-CH 30V 29A/32A 8DFN |
9,182 |
|
- |
AlphaMOS | 8-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 29A (Ta), 32A (Tc) | 4.5V, 10V | 5mOhm @ 20A, 10V | 2.4V @ 250µA | 33 nC @ 10 V | ±20V | 1550 pF @ 15 V | - | 6W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (5x6) |
|
AON7400ALMOSFET N-CH 30V 15A/40A 8DFN |
8,656 |
|
规格书 |
- | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 40A (Tc) | 4.5V, 10V | 7.5mOhm @ 20A, 10V | 2.5V @ 250µA | 24 nC @ 10 V | ±20V | 1380 pF @ 15 V | - | 3.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
MT8386M5MOSFET N-CH 30V |
5,733 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

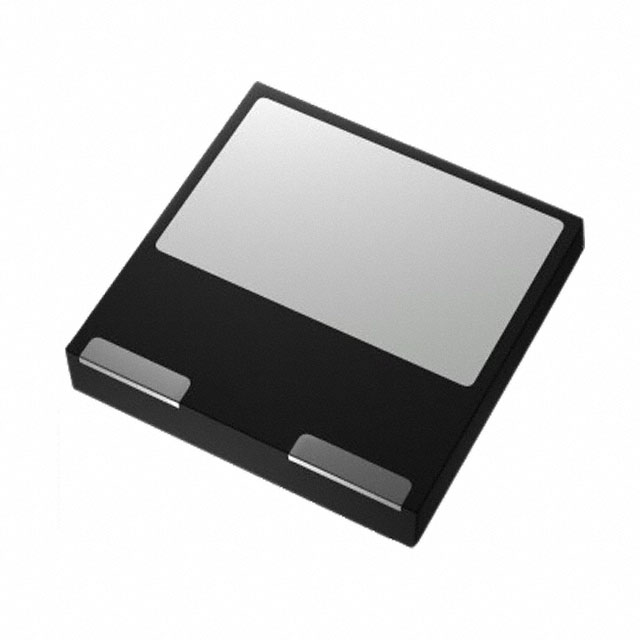

TPH3208LSGGANFET N-CH 650V 20A 3PQFN |
8,696 |
|
规格书 |
- | 3-PowerDFN | Tube | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 14A, 8V | 2.6V @ 300µA | 42 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-PQFN (8x8) |
|
TP90H180PSGANFET N-CH 900V 15A TO220AB |
8,284 |
|
规格书 |
- | TO-220-3 | Tube | Obsolete | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 900 V | 15A (Tc) | 10V | 205mOhm @ 10A, 10V | 2.6V @ 500µA | 10 nC @ 8 V | ±18V | 780 pF @ 600 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

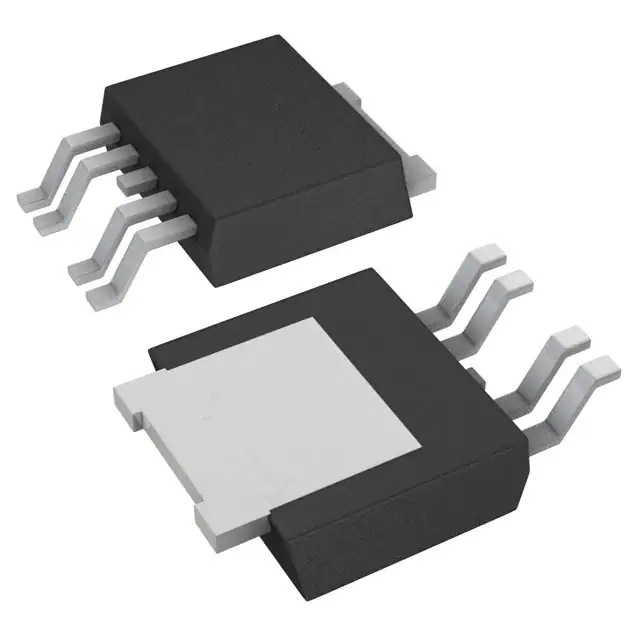

SPD50P03LGXTMOSFET P-CH 30V 50A TO252-5 |
5,333 |
|
- |
OptiMOS™ P | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 7mOhm @ 50A, 10V | 2V @ 250µA | 126 nC @ 10 V | ±20V | 6880 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-5 |
|
IPI045N10N3GXKMOSFET N-CH 100V 137A TO262-3 |
7,812 |
|
- |
OptiMOS™ 3 | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 137A (Tc) | 6V, 10V | 4.5mOhm @ 100A, 10V | 3.5V @ 150µA | 117 nC @ 10 V | ±20V | 8410 pF @ 50 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO262-3 |
|
IPP023NE7N3GMOSFET N-CH 75V 120A TO220-3 |
5,063 |
|
规格书 |
OptiMOS™ 3 | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 120A (Tc) | 10V | 2.3mOhm @ 100A, 10V | 3.8V @ 273µA | 206 nC @ 10 V | ±20V | 14400 pF @ 37.5 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
SPP04N80C3XKMOSFET N-CH 800V 4A TO220-3 |
7,878 |
|
- |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 4A (Tc) | 10V | 1.3Ohm @ 2.5A, 10V | 3.9V @ 240µA | 31 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
SPP06N80C3XKMOSFET N-CH 800V 6A TO220-3 |
6,201 |
|
- |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 3.8A, 10V | 3.9V @ 250µA | 41 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
|
SPP08N80C3XKMOSFET N-CH 800V 8A TO220-3 |
5,373 |
|
- |
CoolMOS™ | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 650mOhm @ 5.1A, 10V | 3.9V @ 470µA | 60 nC @ 10 V | ±20V | 1100 pF @ 100 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3 |
|
IPW65R045C7300XKSA1MOSFET N-CH 650V 46A TO247 |
6,262 |
|
- |
CoolMOS™ C7 | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3 |
|
|
PH1530CL,115MOSFET N-CH 30V LFPAK |
5,191 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
