购物车穿心电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电容 | 容差 | 额定电压 | 电流 | 直流电阻 (DCR)（最大值） | 工作温度 | 插入损耗 | 温度系数 | 额定值 | 安装类型 | 尺寸 / 尺寸 | 高度（最大值） | 螺纹尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YFF15PC1V224MT000NCOMMERCIAL GRADE FEED THROUGH FI |
29,984 |
|
规格书 |
YFF-P | 0402 (1005 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 35V | 2 A | 45mOhm | -55°C ~ 105°C | 40dB @ 4MHz ~ 2GHz | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
KGN05ZS60E435MH3-TERMINAL, 0402 X6S 4.3UF20% 2. |
30,000 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.3 µF | ±20% | 2.5V | 2 A | 30mOhm | -55°C ~ 105°C | - | X6S | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
KGN05ZS60G435MH3-TERMINAL, 0402 X6S 4.3UF20% 4V |
29,880 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 4.3 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 105°C | - | X6S | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
KGN05CR50G106MH3-TERMINAL, 0402 X5R 10UF20% 4V |
29,960 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 85°C | - | X5R | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.028" (0.70mm) | - |
|
|
KGN05CS60E106MH3-TERMINAL, 0402 X6S 10UF20% 2.5 |
30,000 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 10 µF | ±20% | 2.5V | 2 A | 30mOhm | -55°C ~ 105°C | - | X6S | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.028" (0.70mm) | - |
 4 PC Pad.jpg)
|
YFF15SC1E471MT000NCAP FEEDTHRU 470PF 20% 25V 0402 |
18,749 |
|
规格书 |
YFF-SC | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 470 pF | ±20% | 25V | 1 A | 300mOhm | -55°C ~ 125°C | 30dB @ 600MHz ~ 4GHz | - | - | Surface Mount | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.014" (0.35mm) | - |
|
|
YFF15AC0G105MT0Q0NAUTOMOTIVE GRADE FEED THROUGH FI |
19,930 |
|
规格书 |
YFF-AC | 0402 (1005 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 1 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 125°C | 40dB @ 1MHz ~ 2.6GHz | - | AEC-Q200 | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
YFF15AC1V224MT0Y0NAUTOMOTIVE GRADE FEED THROUGH FI |
20,000 |
|
规格书 |
YFF-AC | 0402 (1005 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 35V | 2 A | - | -55°C ~ 125°C | 40dB @ 4MHz ~ 2GHz | - | AEC-Q200 | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.020" (0.50mm) | - |
|
|
KGN05BR50G156MH3-TERMINAL, 0402 X5R 15UF20% 4V |
29,955 |
|
规格书 |
KGN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | 15 µF | ±20% | 4V | 2 A | 30mOhm | -55°C ~ 85°C | - | X5R | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) | - |
|
W3F11A2218AT1ACAP FEEDTHRU 220PF 100V 1206 |
9,964 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 220 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F11A2208AT3ACAP FEEDTHRU 22PF 100V 1206 |
9,750 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 22 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
|
W3F11A2208AT1FCAP FEEDTHRU 22PF 100V 1206 |
5,175 |
|
规格书 |
W3F | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 22 pF | -20%, +50% | 100V | 300 mA | 600mOhm | -55°C ~ 125°C | - | C0G, NP0 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.050" (1.27mm) | - |
|
YFF31PC1C474MT000NCAP FEEDTHRU 0.47UF 20% 16V 1206 |
3,480 |
|
规格书 |
YFF-P | 1206 (3216 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 16V | 2 A | 40mOhm | -55°C ~ 125°C | 40dB @ 2MHz ~ 1GHz | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.057" (1.45mm) | - |
|

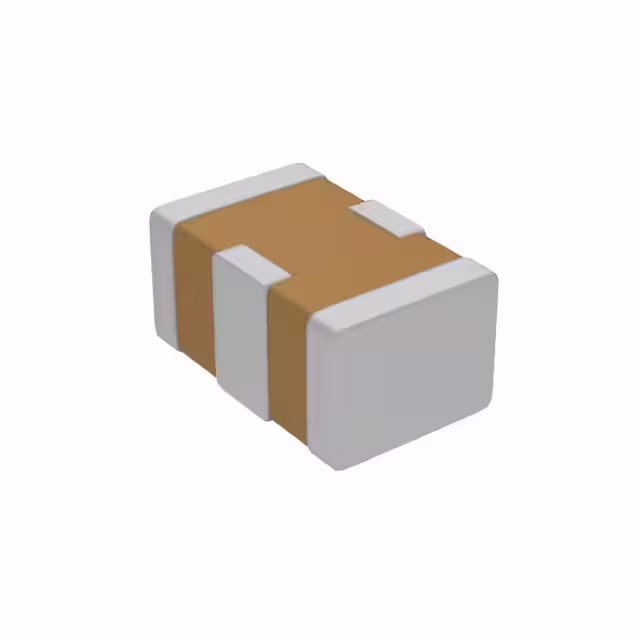

0805J1000102MXTE01CAP FEEDTHRU 1000PF 100V 0805 |
4,280 |
|
规格书 |
EMI Filter | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 1000 pF | ±20% | 100V | 300 mA | - | -55°C ~ 125°C | 27dB @ 100MHz | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.15mm) | - |
-4-PC-Pad.jpg)
|
0805J1000222MXTE01CAP CER |
8,680 |
|
规格书 |
FlexiCap™ | 0805 (2012 Metric) | Tape & Reel (TR) | Active | 2200 pF | ±20% | 100V | 300 mA | - | -55°C ~ 125°C | 34dB @ 100MHz | X7R | - | Surface Mount | 0.079" L x 0.049" W x 0.045" H (2.00mm x 1.25mm x 1.15mm) | 0.045" (1.15mm) | - |
|
W2F15C4738AT3ACAP FEEDTHRU 0.047UF 50V 0805 |
9,795 |
|
规格书 |
W2F | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 0.047 µF | -20%, +50% | 50V | 300 mA | 600mOhm | -55°C ~ 125°C | - | X7R | - | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
W2H15C1038AT1ACAP FEEDTHRU |
4,232 |
|
规格书 |
W2H | 0805 (2012 Metric), 4 PC Pad | Tape & Reel (TR) | Active | 10000 pF | -20%, +50% | 50V | 1 A | 150mOhm | -55°C ~ 125°C | - | X7R | AEC-Q200 | Surface Mount | 0.079" L x 0.049" W (2.01mm x 1.25mm) | 0.045" (1.14mm) | - |
|
|
NFM31PC276D0E3LCAP CER 4.3UF 4V 3-TERM 0402 |
2,802 |
|
规格书 |
NFM | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 27 µF | ±20% | 2.5V | 6 A | 5mOhm | -55°C ~ 105°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) | - |
|
NFM31HK103R2A3LCAP FEEDTHRU 0.01UF 20% 50V 1206 |
2,605 |
|
规格书 |
EMIFIL®, NFM31 | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | 10000 pF | ±20% | 50V | 6 A | 1.5mOhm | -55°C ~ 125°C | - | - | AEC-Q200 | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.059" (1.50mm) | - |
|
|
1806J1000220MCTE01MULTI-LAYERED CERAMIC CAPACITOR |
4,700 |
|
规格书 |
EMI Filter | 1806 (4516 Metric) | Tape & Reel (TR) | Active | 22 pF | ±20% | 100V | 300 mA | 350mOhm | -55°C ~ 125°C | 16dB @ 1GHz | C0G, NP0 | - | Surface Mount | 0.177" L x 0.063" W (4.50mm x 1.60mm) | 0.051" (1.30mm) | - |
