购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GA0812P4H001FAN AXIAL 80X25MM 12VDC WIRE |
1,272 |
|
规格书 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 51.5 CFM (1.44m³/min) | 0.352 in H2O (87.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 37.0dB(A) | 2.64 W | 5200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|

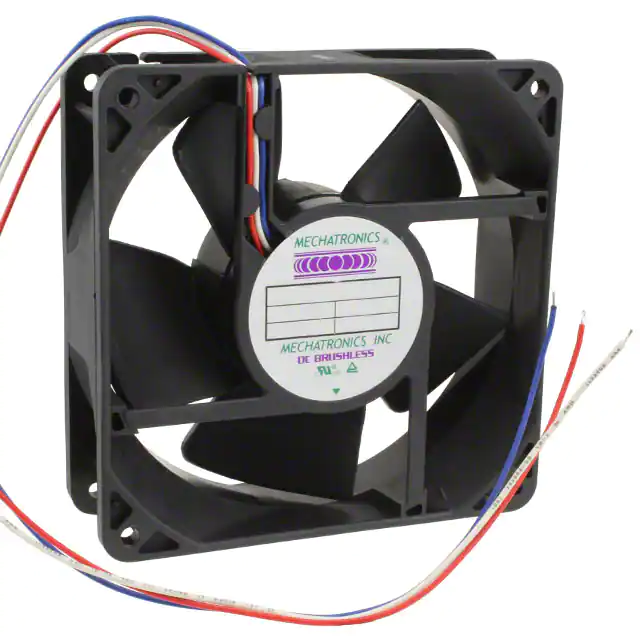

G1238E24B1-FSR-WSFAN AXIAL 119X38MM 24VDC WIRE |
853 |
|
规格书 |
G1238 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 158.0 CFM (4.42m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Alarm Sensor, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 49.0dB(A) | - | 3600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.74 lb (335.66 g) |
|
EEC0252B3-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
2,526 |
|
规格书 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 34.0dB(A) | 2 W | 2200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
|
EEC0252B2-000U-A99FAN AXIAL 120X25MM 24VDC WIRE |
1,090 |
|
规格书 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 40.5dB(A) | 3.5 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|

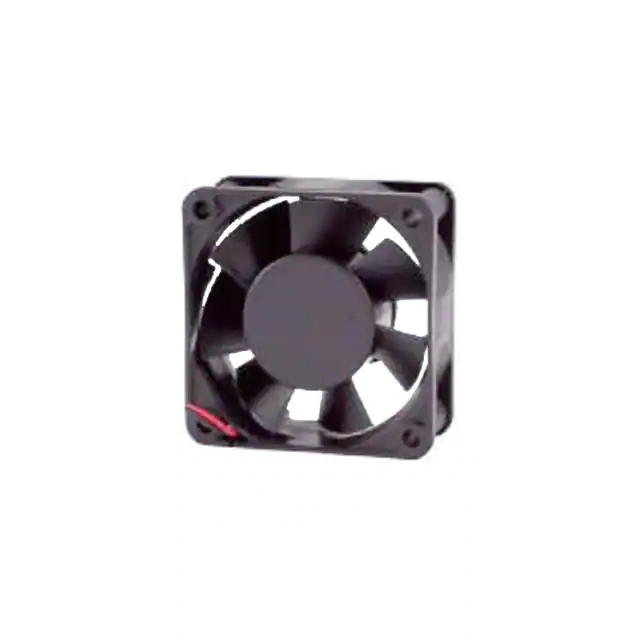

OD6025-12HBIP69KFAN AXIAL 60X25MM 12VDC WIRE |
253 |
|
规格书 |
OD6025-IP69K | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.8 W | 3975 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
|
OD6025-24HBIP69KFAN AXIAL 60X25MM 24VDC WIRE |
253 |
|
规格书 |
OD6025-IP69K | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 2.8 W | 3975 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
|
OD9225-12HBIP68FAN AXIAL 92X25MM 12VDC WIRE |
242 |
|
规格书 |
OD9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.0 CFM (1.40m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB | 3 W | 2900 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.211 lb (95.71 g) |
|

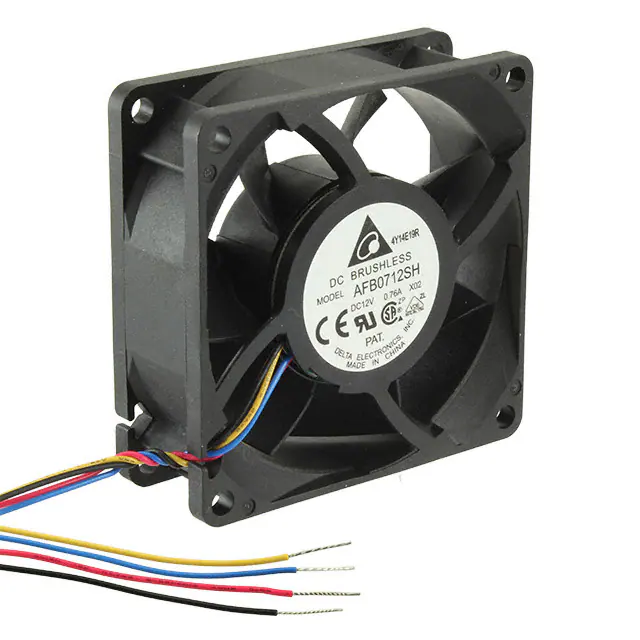

AFB0712SHX02FAN AXIAL 70X25.4MM 12VDC WIRE |
1,742 |
|
规格书 |
AFB | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.40mm | 61.1 CFM (1.71m³/min) | 0.625 in H2O (155.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.5dB(A) | 7.8 W | 6300 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|

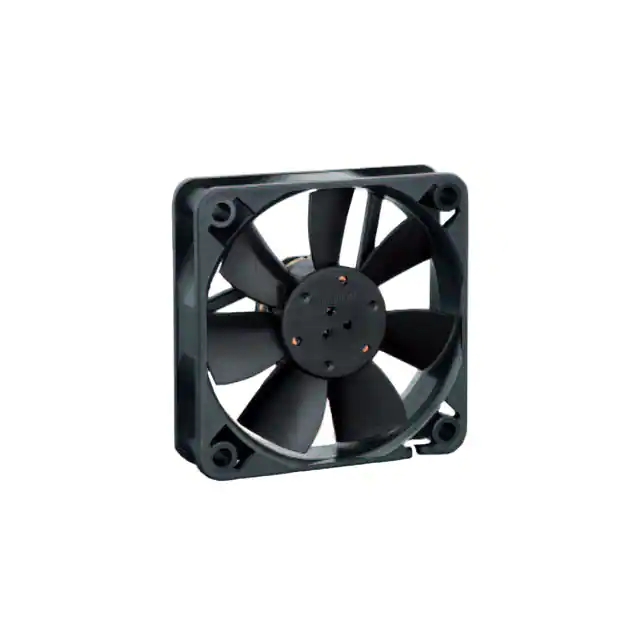

612FFAN AXIAL 60X15MM 12VDC WIRE |
1,782 |
|
规格书 |
600F | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 1 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.066 lb (29.94 g) |
|
514FFAN AXIAL 50X15MM 24VDC WIRE |
810 |
|
规格书 |
500F | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | - | 30.0dB(A) | 1 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

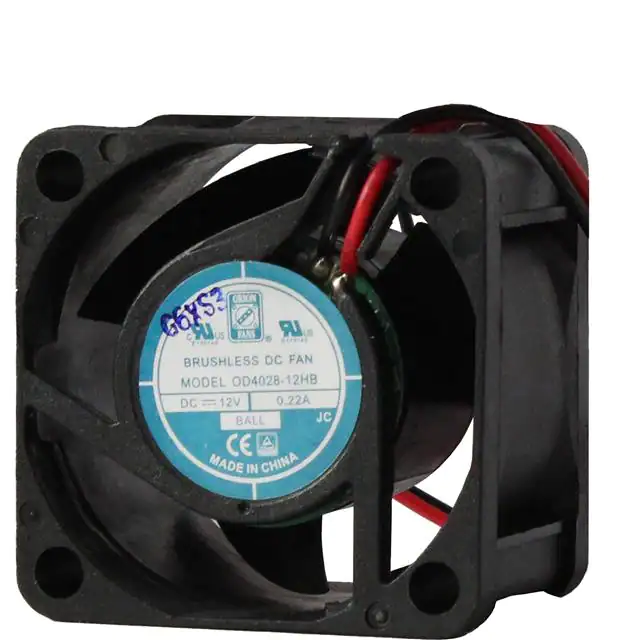

OD4028-12HBXEFAN AXIAL 40X28MM 12VDC WIRE |
183 |
|
规格书 |
OD4028 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.5 CFM (0.882m³/min) | 3.000 in H2O (747.3 Pa) | Ball | Tubeaxial | Auto Restart | 64.2dB(A) | 16.8 W | 22750 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

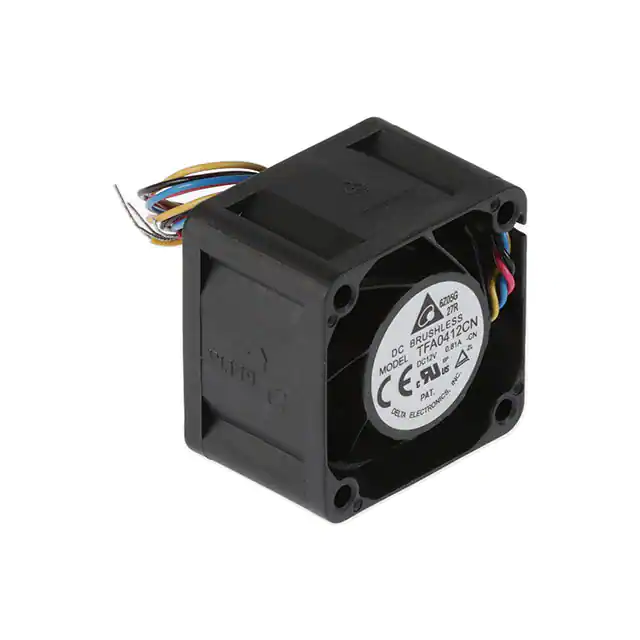

TFA0412CN-CNFAN AXIAL 40X28MM 12VDC WIRE |
1,288 |
|
规格书 |
TFA | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.3 CFM (0.708m³/min) | 1.868 in H2O (465.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 55.0dB(A) | 7.2 W | 17600 RPM | 4 Wire Leads | IP51 - Dust Protected | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.098 lb (44.45 g) |
|
11938KA-24L-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,626 |
|
规格书 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.4 CFM (3.03m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 42.5dB | 7.4 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938KA-24M-EA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,041 |
|
规格书 |
11938KA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 113.0 CFM (3.16m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.5dB | 8.4 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

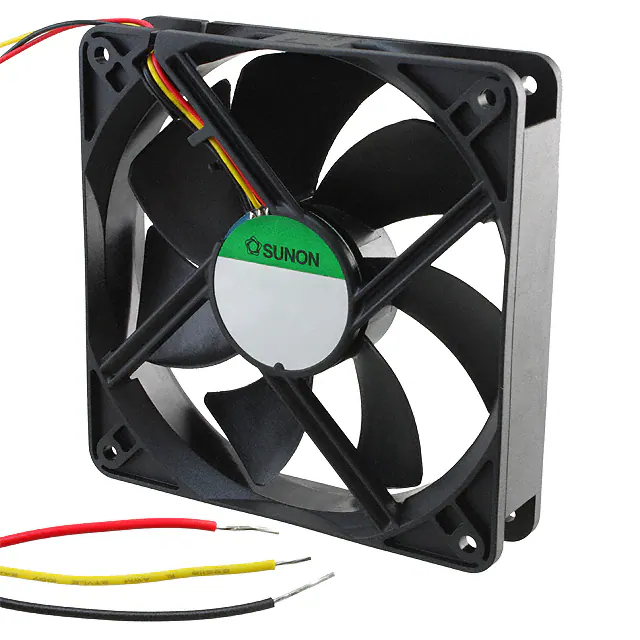

EEC0252B1-000U-G99FAN AXIAL 120X25MM 24VDC WIRE |
2,636 |
|
规格书 |
EEC | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.5dB(A) | 5 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|

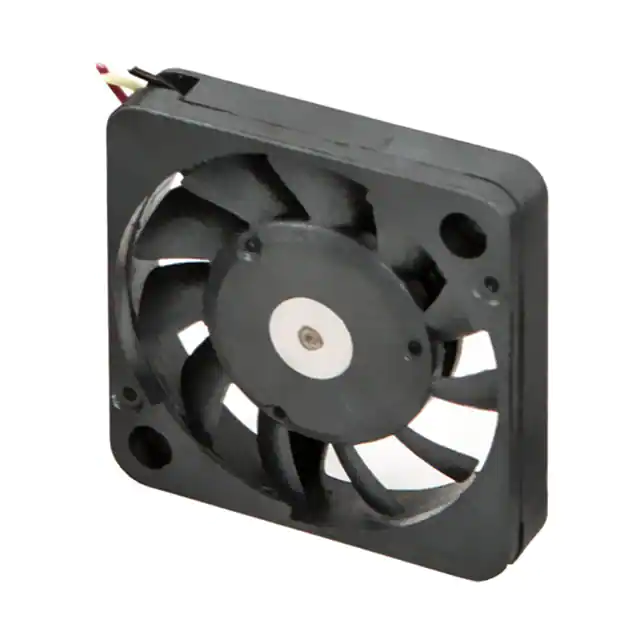

ASB01703HA3-00CAHFAN BLOWER 17X3MM 3VDC RECT CONN |
914 |
|
规格书 |
ASB - Miniature | Box | Active | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.510 CFM (0.014m³/min) | 0.071 in H2O (17.6 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 180 mW | 12000 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | - | 0.004 lb (1.81 g) |
|

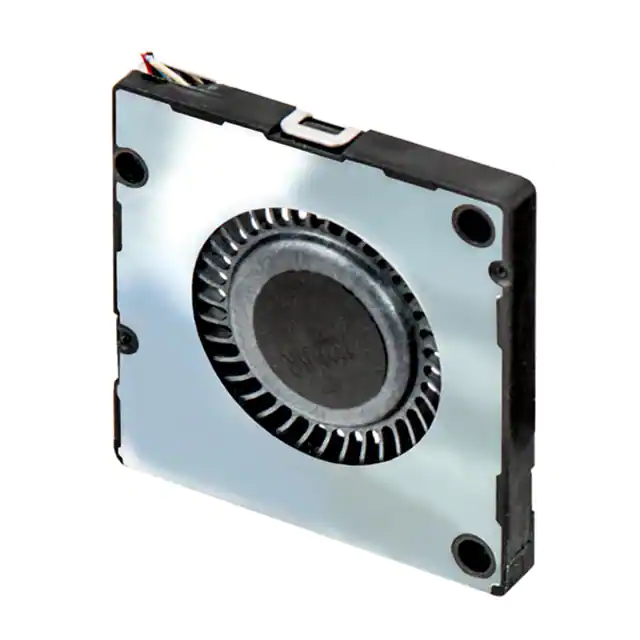

KDB0305HA3-00FAN BLOWER 30X3.5MM 5VDC RECT |
2,603 |
|
规格书 |
KDB - Miniature | Box | Active | 5VDC | Square - 30mm L x 30mm H | 3.50mm | 0.950 CFM (0.027m³/min) | 0.946 in H2O (235.6 Pa) | Hydrodynamic | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 1.75 W | 12500 RPM | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | cULus, TUV | 0.012 lb (5.44 g) |
|
412F/2H-038FAN AXL 40X10MM 12VDC RECT CONN |
126 |
|
规格书 |
400F | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | - | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 800 mW | 6000 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | - |
|

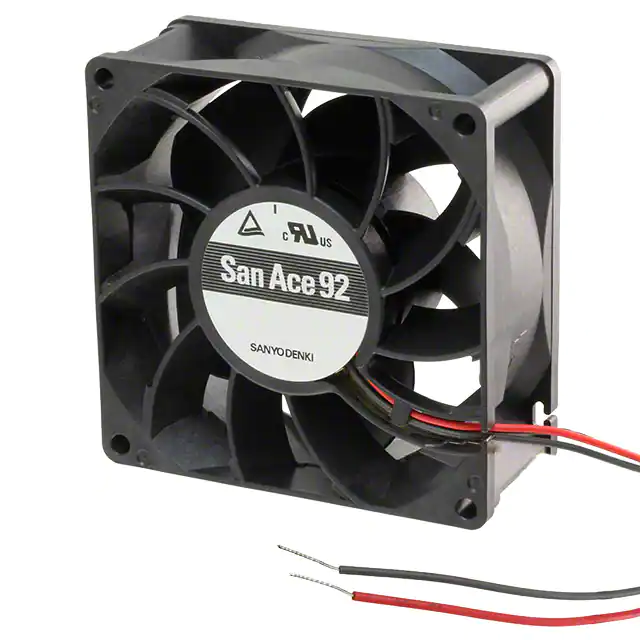

9A0924S4021FAN AXIAL 92X25MM 24VDC WIRE |
584 |
|
规格书 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 39.0dB(A) | 3.6 W | 3550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

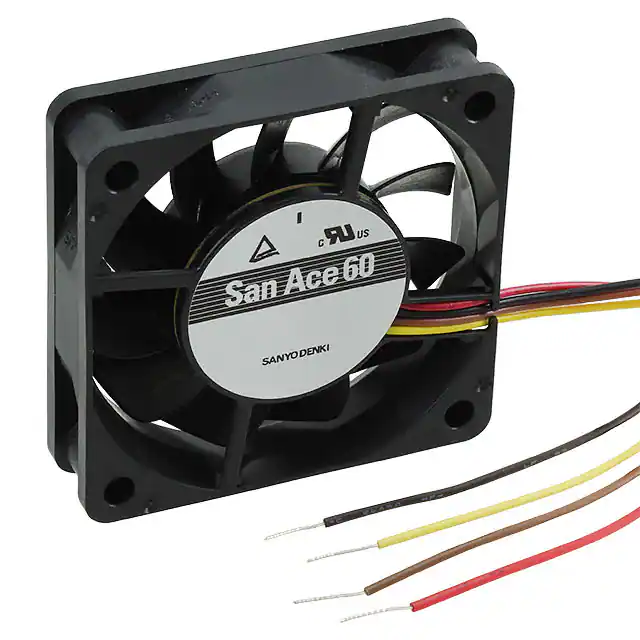

9GA0612P6S001FAN AXIAL 60X20MM 12VDC WIRE |
408 |
|
规格书 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 24.7 CFM (0.692m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 36.0dB(A) | 1.8 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.154 lb (69.85 g) |
