购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB0712HH-AR00FAN BLOWER 75.7X25MM 12VDC WIRE |
1,576 |
|
- |
BFB | Box | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 15.3 CFM (0.428m³/min) | 0.977 in H2O (243.4 Pa) | Ball | Blower | Locked Rotor Sensor | 51.0dB(A) | 4.08 W | 4400 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
EB40202S2-000U-999FAN AXIAL 40X20MM 24VDC WIRE |
1,778 |
|
- |
EB | Bulk | Obsolete | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Sleeve | Tubeaxial | - | 21.0dB(A) | 800 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.069 lb (31.3 g) |
|
|
EB60252S1-000U-999FAN AXIAL 60X25MM 24VDC WIRE |
3,160 |
|
- |
EB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 23.5 CFM (0.658m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | - | 33.5dB(A) | 1.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.126 lb (57.15 g) |
|
|
EE70201S1-000U-A99FAN AXIAL 70X20MM 12VDC WIRE |
1,467 |
|
- |
EE | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 29.0 CFM (0.812m³/min) | 0.140 in H2O (34.9 Pa) | Sleeve | Tubeaxial | Auto Restart | 33.0dB(A) | 1.62 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.133 lb (60.33 g) |
|

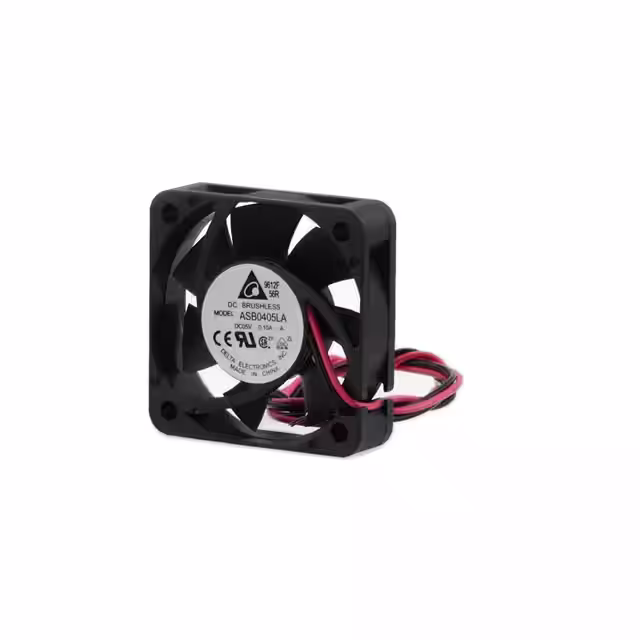

ASB0405LA-AFAN AXIAL 40X10MM 5VDC WIRE |
4,857 |
|
规格书 |
ASB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.4 CFM (0.123m³/min) | 0.068 in H2O (17.0 Pa) | Sleeve | Tubeaxial | Locked Rotor Protection | 15.0dB(A) | 250 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.03 lb (13.61 g) |
|

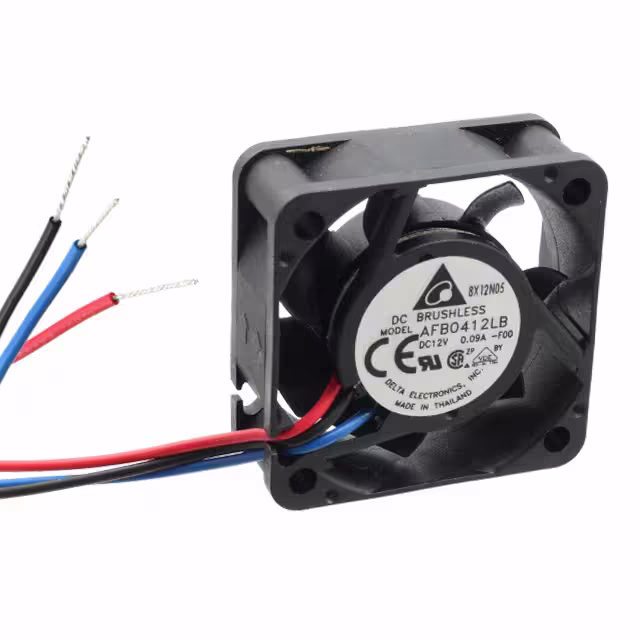

AFB0412LB-F00FAN AXIAL 40X15MM 12VDC WIRE |
2,882 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.5 CFM (0.182m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.5dB(A) | 720 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|

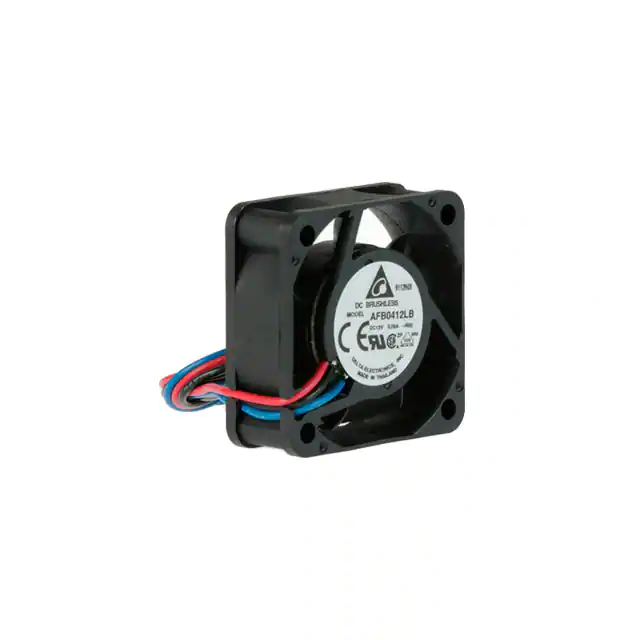

AFB0412LB-R00FAN AXIAL 40X15MM 12VDC WIRE |
2,839 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 6.5 CFM (0.182m³/min) | 0.144 in H2O (35.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 18.5dB(A) | 720 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.057 lb (25.85 g) |
|
AFB0505LB-R00FAN AXIAL 50X15MM BALL 5VDC WIRE |
4,551 |
|
- |
AFB | Box | Obsolete | 5VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.126 in H2O (31.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 750 mW | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|
AFB0512LBFAN AXIAL 50X15MM 12VDC WIRE |
1,238 |
|
- |
AFB | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.126 in H2O (31.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 720 mW | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

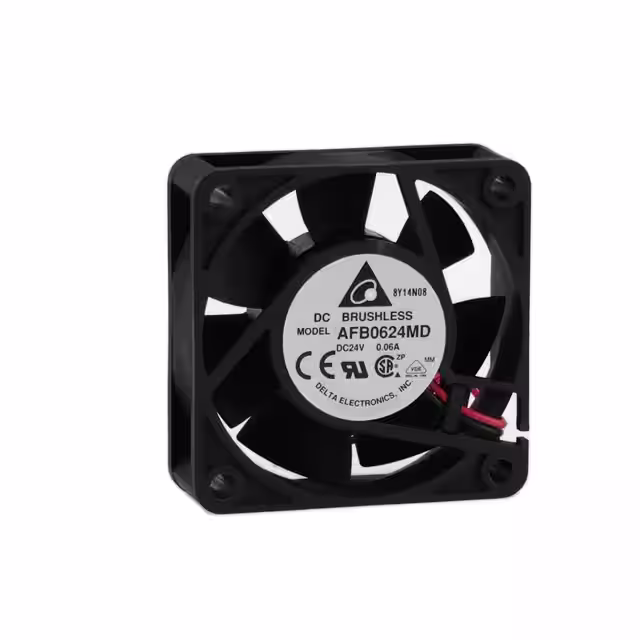

AFB0624MDFAN AXIAL 60X20MM 24VDC WIRE |
3,539 |
|
规格书 |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 14.8 CFM (0.414m³/min) | 0.151 in H2O (37.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 26.0dB(A) | 960 mW | 3600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.137 lb (62.14 g) |
|

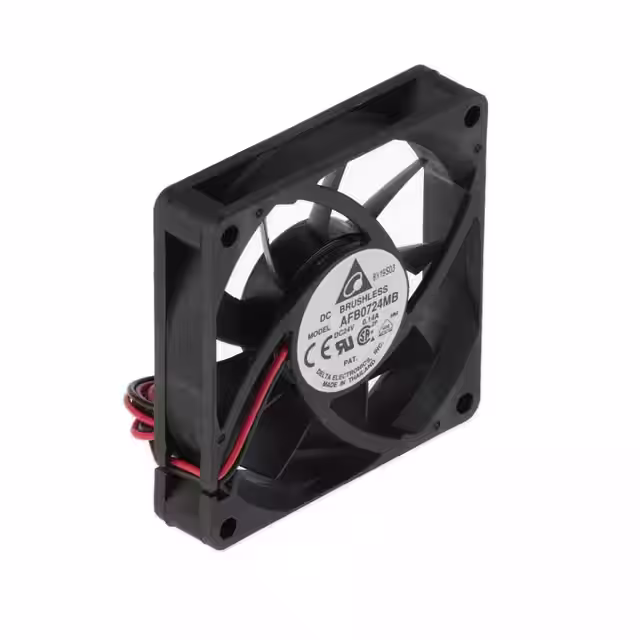

AFB0724MBFAN AXIAL 70X15MM 24VDC WIRE |
4,981 |
|
规格书 |
AFB | Box | Obsolete | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 28.2 CFM (0.790m³/min) | 0.123 in H2O (30.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.16 W | 3300 RPM | 2 Wire Leads | - | - | - | 0.104 lb (47.17 g) |
|
AFB0812MB-F00FAN AXIAL 80X15MM 12VDC WIRE |
1,288 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 28.3 CFM (0.792m³/min) | 0.107 in H2O (26.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.5dB(A) | 1.32 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB0848HH-R00FAN AXIAL 80X25.4MM 48VDC WIRE |
2,496 |
|
- |
AFB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 37.4 CFM (1.05m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 3.84 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

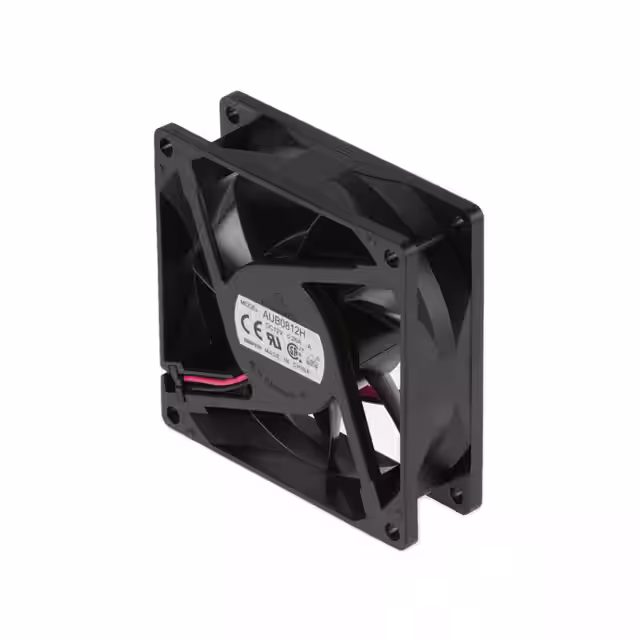

AUB0812H-AFAN AXIAL 80X25.4MM 12VDC |
3,620 |
|
规格书 |
AUB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 38.8 CFM (1.09m³/min) | 0.177 in H2O (44.1 Pa) | Superflo | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.195 lb (88.45 g) |
|
|
PFB0848UHE-R00FAN AXIAL 80X38MM 48VDC WIRE |
1,610 |
|
规格书 |
PFB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 61.0dB(A) | 20.16 W | 7500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
AFB0912HDFAN AXIAL 92X20MM 12VDC WIRE |
4,191 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 54.6 CFM (1.53m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 1.92 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|

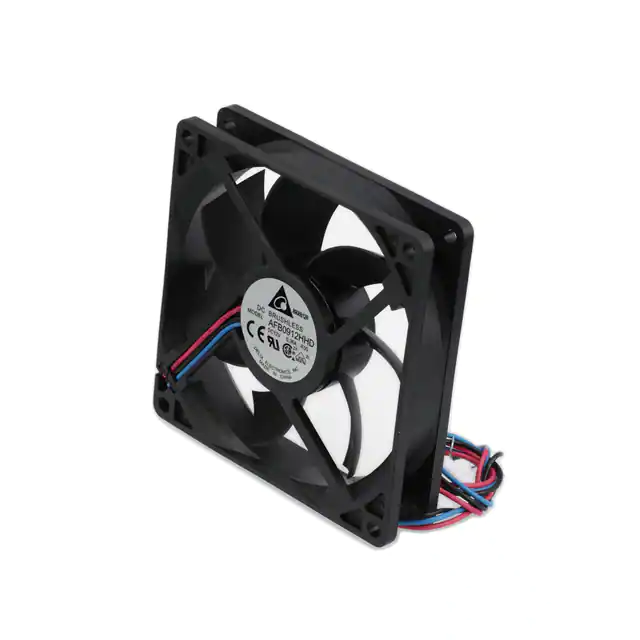

AFB0912HHD-F00FAN AXIAL 92X20MM 12VDC WIRE |
3,125 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 59.5 CFM (1.67m³/min) | 0.166 in H2O (41.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 2.88 W | 3000 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
AFB0924L-R00FAN AXIAL 92X25.4MM 24VDC WIRE |
2,054 |
|
规格书 |
AFB | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 37.1 CFM (1.04m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 1.44 W | 2100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.219 lb (99.34 g) |
|
|
2214F2TDH4PR207FAN DC AXIAL |
3,894 |
|
- |
- | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3218JH3-194FAN DC AXIAL |
4,308 |
|
规格书 |
- | Box | Obsolete | - | - | - | - | - | - | - | - | 66.0dB(A) | - | - | - | - | - | - | - |
