购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109P0824A2011FAN AXIAL 80X32MM 24VDC WIRE |
1,467 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 53.7 CFM (1.50m³/min) | 0.366 in H2O (91.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 6.96 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

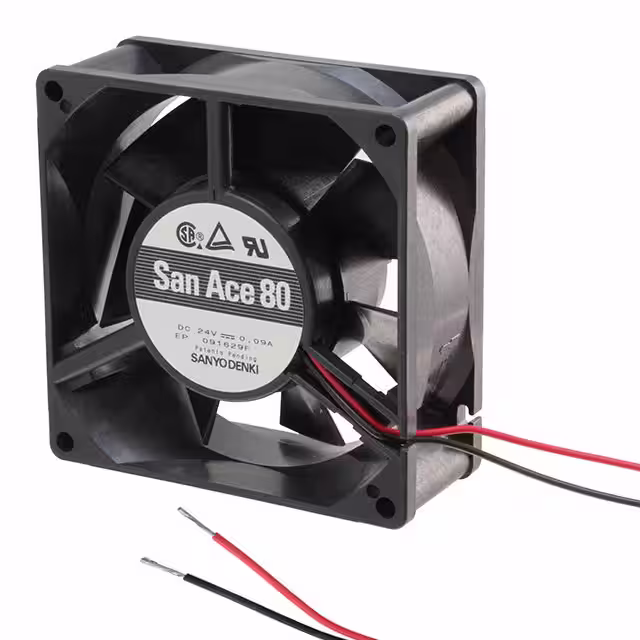

109P0824H202FAN AXIAL 80X32MM 24VDC WIRE |
1,522 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.16 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

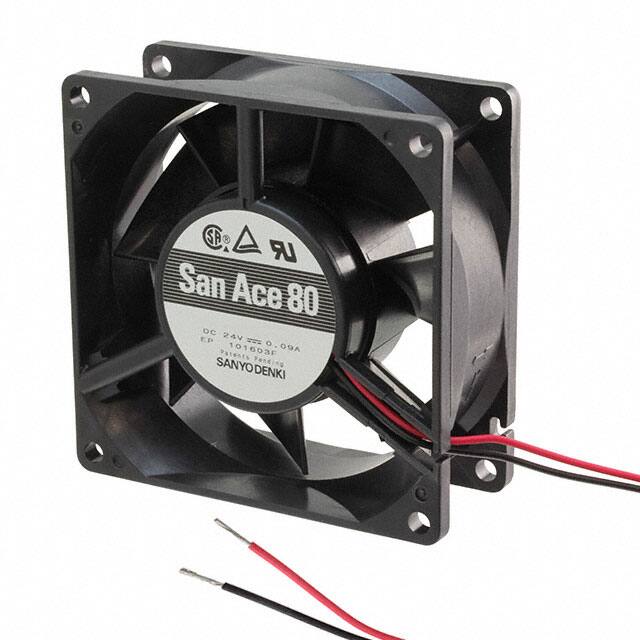

109P0824H2021FAN AXIAL 80X32MM 24VDC WIRE |
2,209 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 37.1 CFM (1.04m³/min) | 0.173 in H2O (43.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 33.0dB(A) | 2.16 W | 3150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.331 lb (150.14 g) |
|

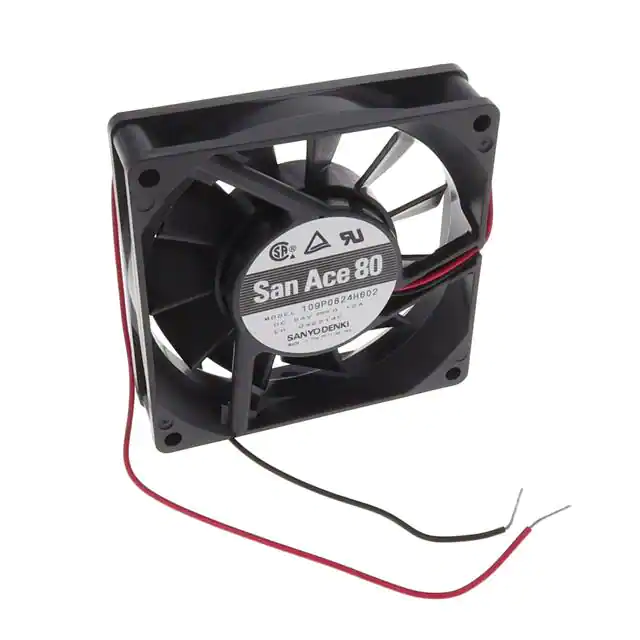

109P0824H602FAN AXIAL 80X20MM 24VDC WIRE |
1,481 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 29.7 CFM (0.832m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.88 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

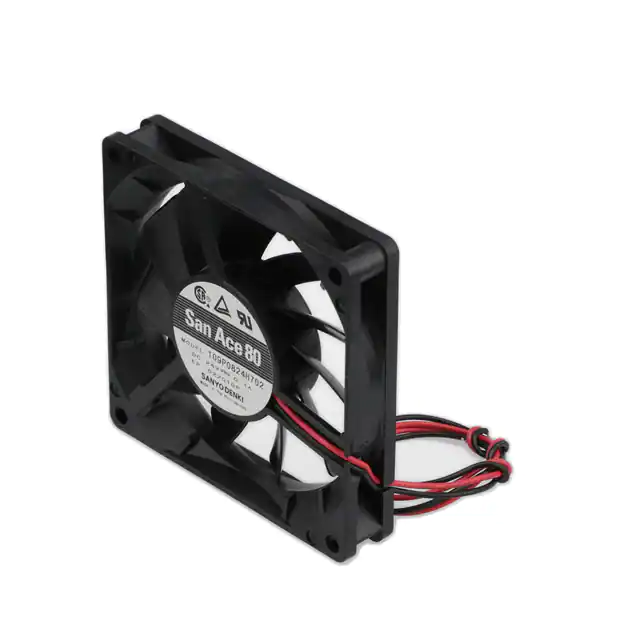

109P0824H702FAN AXIAL 80X15MM 24VDC WIRE |
3,777 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 2.4 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
109P0824H7D01FAN AXIAL 80X15MM 24VDC WIRE |
1,445 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 32.1 CFM (0.899m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 31.0dB(A) | 2.4 W | 3100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
109P0824M701FAN AXIAL 80X15MM 24VDC WIRE |
2,895 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 1.2 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
109P0824M7D01FAN AXIAL 80X15MM 24VDC WIRE |
1,139 |
|
规格书 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 20.1 CFM (0.563m³/min) | 0.051 in H2O (12.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 21.0dB(A) | 1.2 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.15 lb (68.04 g) |
|
109P0912F402FAN AXIAL 92X25MM 12VDC WIRE |
4,010 |
|
规格书 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 43.8 CFM (1.23m³/min) | 0.130 in H2O (32.5 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.68 W | 2450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
109P0912H401FAN AXIAL 92X25MM 12VDC WIRE |
3,633 |
|
规格书 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.52 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|

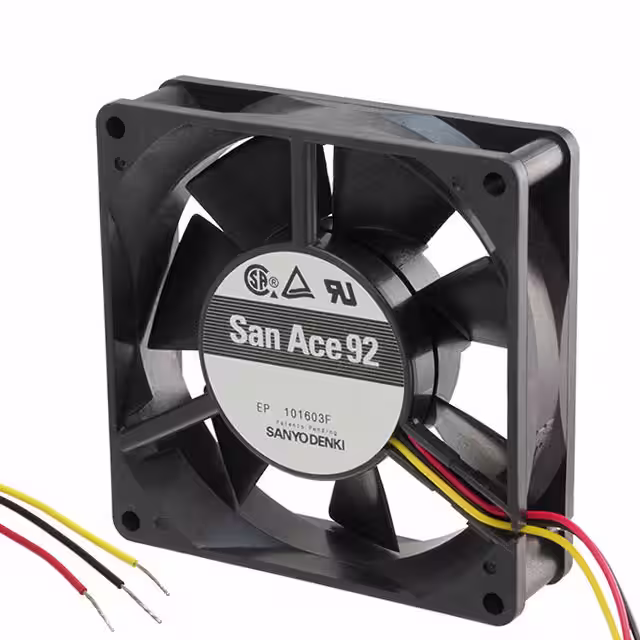

109P0912H4D01FAN AXIAL 92X25MM 12VDC WIRE |
1,138 |
|
规格书 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.52 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0912J401FAN AXIAL 92X25MM 12VDC WIRE |
1,790 |
|
规格书 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 71.6 CFM (2.00m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 47.0dB(A) | 6.72 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0912W402FAN AXIAL 92X25MM 12VDC WIRE |
4,536 |
|
规格书 |
San Ace 92 | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.52 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924H401FAN AXIAL 92X25MM 24VDC WIRE |
4,311 |
|
规格书 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 33.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|

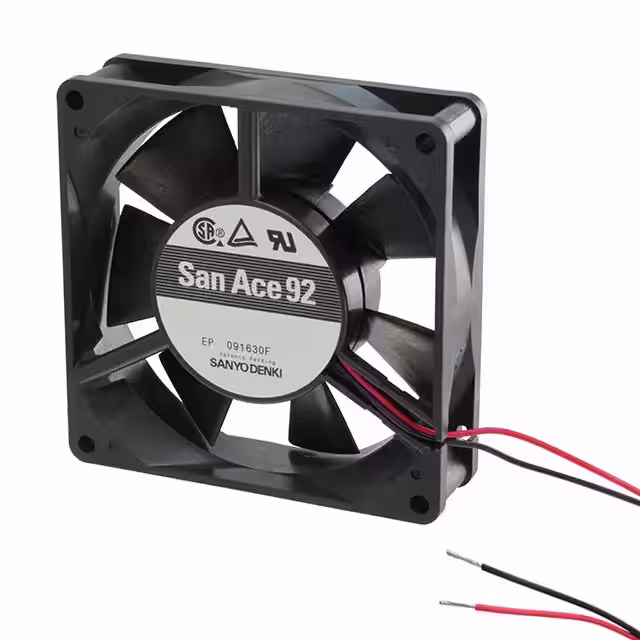

109P0924H402FAN AXIAL 92X25MM 24VDC WIRE |
2,949 |
|
规格书 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|

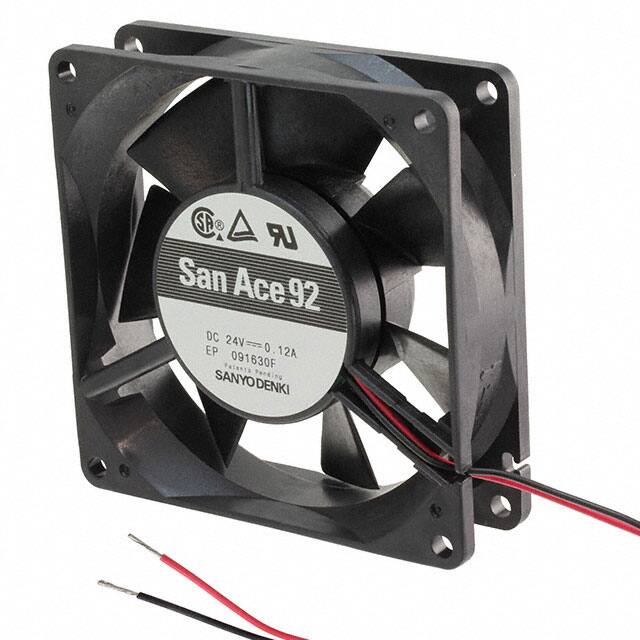

109P0924H4021FAN AXIAL 92X25MM 24VDC WIRE |
4,810 |
|
规格书 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 2.88 W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
|
109P0924W4D01FAN AXIAL 92X25MM 24VDC WIRE |
2,204 |
|
规格书 |
San Ace 92 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 51.2 CFM (1.43m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB(A) | 2.88 W | 2850 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UR | 0.331 lb (150.14 g) |
|
109P1212H4D01FAN AXIAL 119X25MM 12VDC WIRE |
3,591 |
|
规格书 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 2.88 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.463 lb (210.01 g) |
|

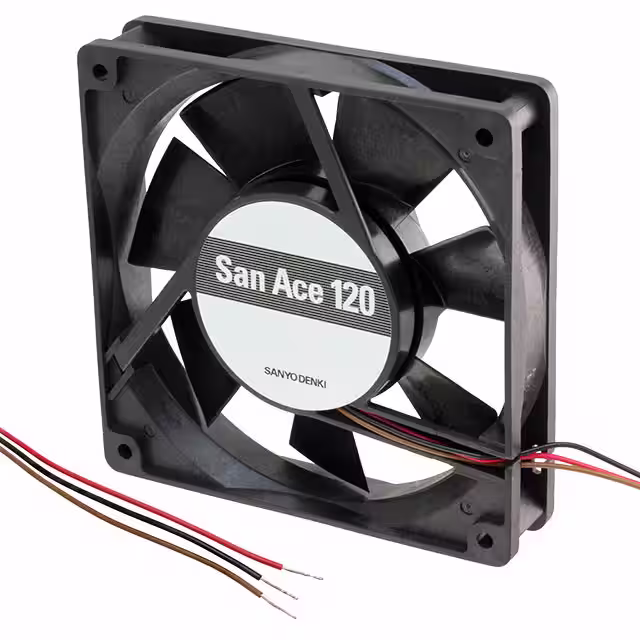

109P1212T4H12FAN AXIAL 119X25MM 12VDC WIRE |
2,342 |
|
规格书 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 88.3 CFM (2.50m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Thermistor, External | 40.0dB(A) | 6.6 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UR | 0.463 lb (210.01 g) |
|
109R0612H402FAN AXIAL 60X25MM 12VDC WIRE |
3,938 |
|
规格书 |
San Ace 60 | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.32 W | 3800 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
