| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0612MBFAN AXIAL 60X15MM 12VDC WIRE |
1,215 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 13.5 CFM (0.378m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 960 mW | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0612VHBFAN AXIAL 60X15MM 12VDC WIRE |
4,830 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 1.92 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0612VHB-R00FAN AXIAL 60X15MM 12VDC WIRE |
3,507 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 1.92 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB0812HB-R00FAN AXIAL 80X15MM 12VDC WIRE |
2,046 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.138 in H2O (34.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.68 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB0812VH-R00FAN AXIAL 80X25.4MM 12VDC WIRE |
2,707 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 38.0dB(A) | 3.12 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
EFB0405LDFAN AXIAL 40X20MM BALL 5VDC WIRE |
2,399 |
|
规格书 |
EFB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 500 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|

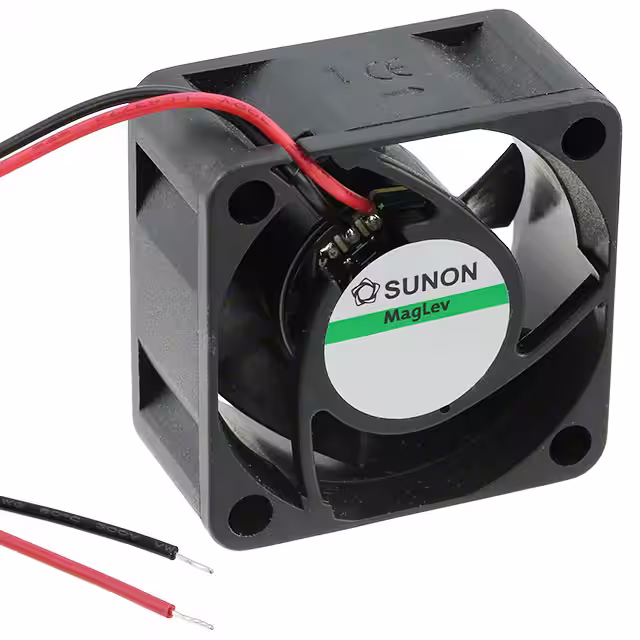

MB40200V1-000U-A99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
2,876 |
|
规格书 |
MagLev® MB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.5dB(A) | 950 mW | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
MB40200V2-000U-A99FAN AXIAL 40X20MM VAPO 5VDC WIRE |
2,182 |
|
规格书 |
MagLev® MB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.7 CFM (0.216m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 620 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.066 lb (29.94 g) |
|
|
MB40201V1-000U-A99FAN AXIAL 40X20MM 12VDC WIRE |
1,282 |
|
规格书 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.5dB(A) | 840 mW | 7200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.068 lb (30.84 g) |
|
|
MB60101V1-000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
2,867 |
|
规格书 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 16.0 CFM (0.448m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.5dB(A) | 1.44 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
|
MB60101V2-000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
1,487 |
|
规格书 |
MagLev® MB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 13.6 CFM (0.381m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 25.0dB(A) | 1 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.064 lb (29.03 g) |
|
MB60201V2-000U-A99FAN AXIAL 60X20MM 12VDC WIRE |
1,836 |
|
规格书 |
MagLev® MB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 950 mW | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.112 lb (50.8 g) |
|
|

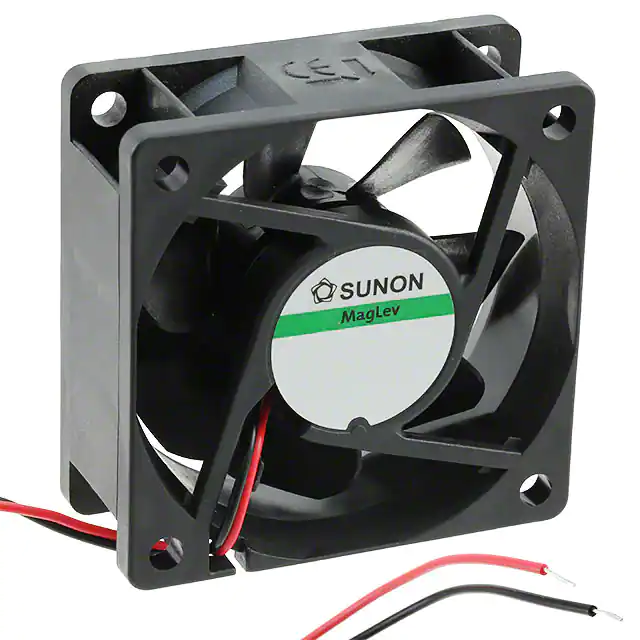

MB60251V2-000U-A99FAN AXIAL 60X25MM 12VDC WIRE |
3,721 |
|
规格书 |
MagLev® MB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.0dB(A) | 890 mW | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.126 lb (57.15 g) |
|

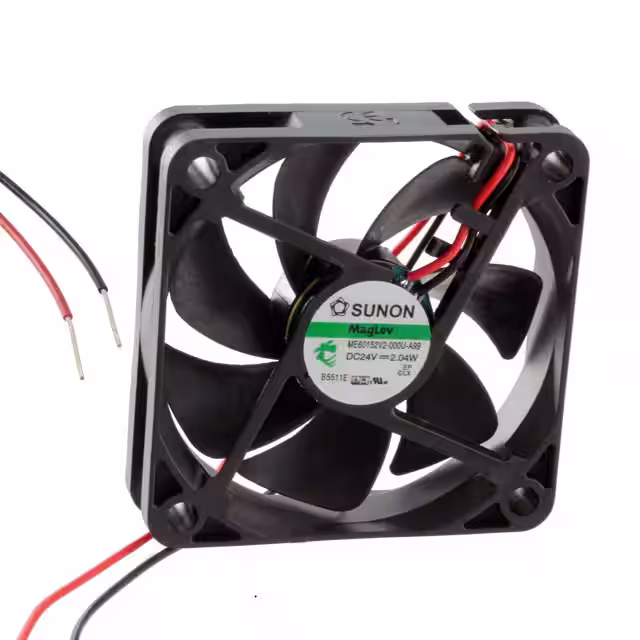

ME60152V2-000U-A99FAN AXIAL 60X15MM 24VDC WIRE |
4,096 |
|
规格书 |
MagLev® ME | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.5dB(A) | 2.04 W | 4700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.067 lb (30.39 g) |
|
|
ME80252VX-000U-A99FAN 80X80X25 24VDC VAPO 45CFM |
4,319 |
|
规格书 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0624MBAV8FAN AXIAL 60X15MM 24VDC WIRE |
4,308 |
|
规格书 |
AFB | Box | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 13.5 CFM (0.378m³/min) | 0.119 in H2O (29.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 29.0dB(A) | 1.44 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
|
AFB1212HHEAU5FAN AXIAL 120X38MM 12VDC WIRE |
3,584 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 130.8 CFM (3.66m³/min) | 0.452 in H2O (112.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 47.0dB(A) | 6.12 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
5920PL-05T-B40-D00FAN AXIAL 172X50.8MM 24VDC TERM |
3,993 |
|
规格书 |
5920PL | Box | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 15.8 W | 3350 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
PF38281B1-000U-G99FAN AXIAL 38X28MM 12VDC WIRE |
4,217 |
|
规格书 |
PF | Bulk | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 51.8dB(A) | 3.78 W | 16000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
|
AFB0612LBFAN AXIAL 60X15MM 12VDC WIRE |
4,106 |
|
规格书 |
AFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 11.6 CFM (0.325m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 840 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.098 lb (44.45 g) |
