购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09225KA-24L-EL-00FAN AXIAL 92X25MM 24VDC WIRE |
4,165 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB | 2.16 W | 2450 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24M-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
3,823 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | - | Ball | Tubeaxial | - | 37.5dB | 2.88 W | 2850 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24M-AL-00FAN AXIAL 92X25MM 24VDC WIRE |
1,620 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 37.5dB | 2.88 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24M-AT-00FAN AXIAL 92X25MM 24VDC WIRE |
3,632 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 37.5dB | 2.88 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24M-EL-00FAN AXIAL 92X25MM 24VDC WIRE |
4,300 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 47.6 CFM (1.33m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 37.5dB | 2.88 W | 2850 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24N-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
1,605 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | - | Ball | Tubeaxial | - | 41.0dB | 3.84 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24N-AL-00FAN AXIAL 92X25MM 24VDC WIRE |
2,127 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 54.7 CFM (1.53m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 41.0dB | 3.84 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24P-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
4,818 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | - | Ball | Tubeaxial | - | 44.5dB | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24P-AL-00FAN AXIAL 92X25MM 24VDC WIRE |
4,711 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | - | Ball | Tubeaxial | Locked Rotor Sensor | 44.5dB | 4.8 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24P-EA-00FAN AXIAL 92X25MM 24VDC WIRE |
4,103 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | - | Ball | Tubeaxial | - | 44.5dB | 4.8 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
09225KA-24P-ET-00FAN AXIAL 92X25MM 24VDC WIRE |
1,381 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 61.8 CFM (1.73m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 44.5dB | 4.8 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
09225SA-12P-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
1,595 |
|
规格书 |
- | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CE, UR, VDE | - |
|
09225SA-12P-EL-00FAN AXIAL 92X25MM 12VDC WIRE |
2,834 |
|
规格书 |
- | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | CE, UR, VDE | - |
|
|
09225SA-12P-ET-00FAN AXIAL 92X25MM 12VDC WIRE |
4,387 |
|
规格书 |
- | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | CE, UR, VDE | - |
|
|
09225SA-24P-AA-00FAN AXIAL 92X25MM 24VDC WIRE |
4,432 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CE, UR, VDE | - |
|
|
09225SA-24P-EA-00FAN AXIAL 92X25MM 24VDC WIRE |
3,998 |
|
规格书 |
- | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CE, UR, VDE | - |
|

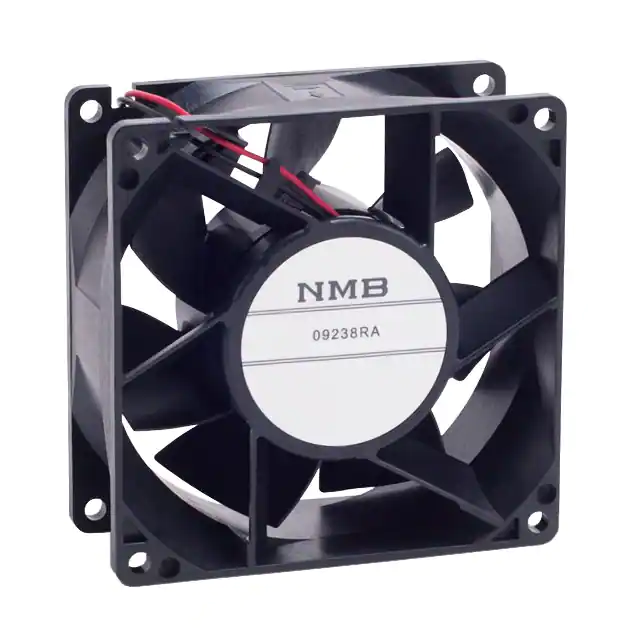

09238RA-12N-EA-00FAN AXIAL 92X38MM 12VDC WIRE |
1,696 |
|
规格书 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | CE, UR, VDE | - |
|
|
11938KA-24L-NL-00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,487 |
|
规格书 |
11938KA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.5dB | 7.44 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
11938KA-24L-NT-00FAN AXIAL 119X38.4MM 24VDC WIRE |
3,347 |
|
规格书 |
11938KA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 108.0 CFM (3.02m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 42.5dB | 7.44 W | 2950 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
|
|
11938KA-24M-NT-00FAN AXIAL 119X38.4MM 24VDC WIRE |
1,274 |
|
规格书 |
11938KA | Box | Active | 24VDC | Square - 119mm L x 119mm H | 38.40mm | 118.0 CFM (3.30m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.5dB | 8.4 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.573 lb (259.91 g) |
