购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

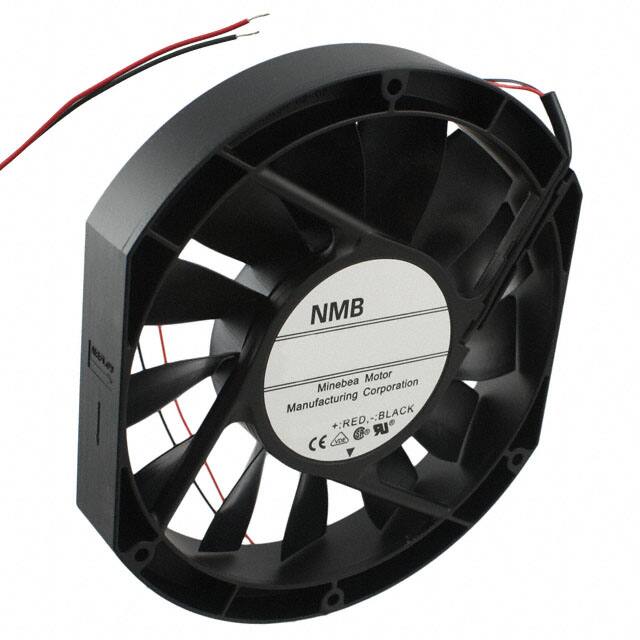

15025PA-12N-AA-00FAN AXIAL 172X25.4MM 12VDC WIRE |
1,789 |
|
规格书 |
5910PL | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | Tubeaxial | - | 62.5dB | 24.7 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.1 lbs (500.0 g) |
|
5920PL-04W-B40-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
4,862 |
|
规格书 |
5920PL | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 17.3 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
5920PL-05W-B40-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
1,943 |
|
规格书 |
5920PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

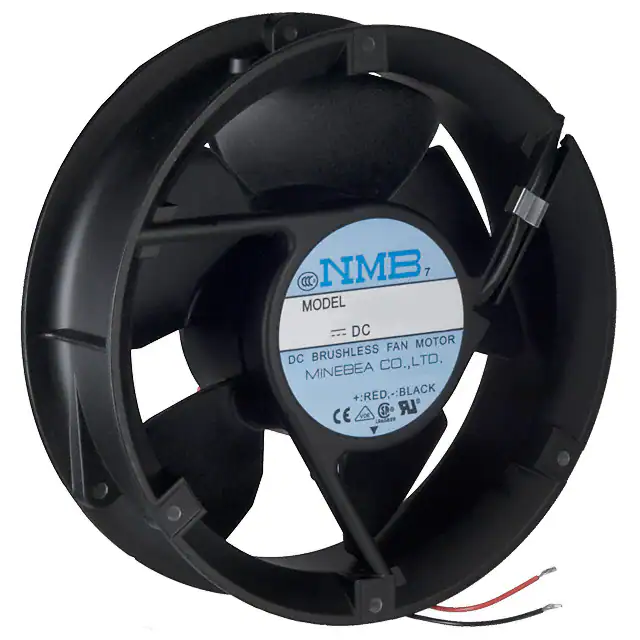

6820PL-04W-B40-D00FAN AXIAL 172X50.8MM 12VDC WIRE |
2,128 |
|
规格书 |
6820PL | Bulk | Obsolete | 12VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 17.3 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-05W-B40-D00FAN AXIAL 172X50.8MM 24VDC WIRE |
3,813 |
|
规格书 |
6820PL | Bulk | Obsolete | 24VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
6820PL-07W-B40-D00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,681 |
|
规格书 |
6820PL | Bulk | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 240.0 CFM (6.72m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 58.0dB | 15.8 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
BM5115-04W-B40-L00FAN BLOWER 51X15MM 12VDC WIRE |
1,967 |
|
规格书 |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 15.00mm | 2.8 CFM (0.078m³/min) | 0.482 in H2O (120.0 Pa) | Ball | Blower | - | 35.0dB | 1.44 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
BM5125-04W-B40-L00FAN BLOWER 51X25MM 12VDC WIRE |
1,791 |
|
规格书 |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 5.3 CFM (0.148m³/min) | 0.341 in H2O (85.0 Pa) | Ball | Blower | - | 34.0dB | 1.56 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
BM5125-04W-B50-L00FAN BLOWER 51X25MM 12VDC WIRE |
2,057 |
|
规格书 |
BM | Bulk | Obsolete | 12VDC | Square/Rounded - 51mm L x 51mm H | 25.00mm | 6.7 CFM (0.188m³/min) | 0.642 in H2O (159.9 Pa) | Ball | Blower | - | 41.0dB | 2.88 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.077 lb (34.93 g) |
|
BG0702-B04-400-0T0FAN BLOWER 75.7X25MM 12VDC WIRE |
3,912 |
|
规格书 |
BG | Bag | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 8.5 CFM (0.238m³/min) | 0.497 in H2O (124.0 Pa) | Ball | Blower | - | 41.0dB | 2.28 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
BG0702-B055-000-00FAN BLOWER 75X25MM 24VDC WIRE |
4,388 |
|
规格书 |
BG | Bulk | Obsolete | 24VDC | Square/Rounded - 75mm L x 75mm H | 25.00mm | 9.5 CFM (0.266m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Blower | - | 43.0dB | 3.36 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL | 0.198 lb (89.81 g) |
|
BG1203-B044-000-00FAN BLOWER 120X32MM 12VDC WIRE |
1,207 |
|
规格书 |
12032GA | Bulk | Obsolete | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 28.2 CFM (0.790m³/min) | 0.702 in H2O (175.0 Pa) | Ball | Blower | - | 48.5dB(A) | 7.8 W | 2250 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.595 lb (269.89 g) |
|
1004KL-01W-B30-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
3,871 |
|
规格书 |
1004KL | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 20.0dB | 325 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
1004KL-01W-B40-B00FAN AXIAL 25X10MM BALL 5VDC WIRE |
2,736 |
|
规格书 |
1004KL | Bulk | Obsolete | 5VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | - | 22.0dB | 425 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B30-B00FAN AXIAL 25X10MM 12VDC WIRE |
1,066 |
|
规格书 |
1004KL | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.2 CFM (0.034m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 20.0dB | 425 mW | 7000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
|
1004KL-04W-B40-B00FAN AXIAL 25X10MM 12VDC WIRE |
4,123 |
|
规格书 |
1004KL | Bulk | Obsolete | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.127 in H2O (31.6 Pa) | Ball | Tubeaxial | - | 22.0dB | 540 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.017 lb (7.71 g) |
|
1204KL-01W-B30-B00FAN AXIAL 30X10MM BALL 5VDC WIRE |
4,417 |
|
规格书 |
1204KL | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | - | 21.0dB | 500 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
|
|
1204KL-01W-B40-B00FAN AXIAL 30X10MM BALL 5VDC WIRE |
4,716 |
|
规格书 |
1204KL | Bulk | Obsolete | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.148 in H2O (37.0 Pa) | Ball | Tubeaxial | - | 23.0dB | 700 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
|
|
1204KL-04W-B30-B00FAN AXIAL 30X10MM 12VDC WIRE |
1,329 |
|
规格书 |
1204KL | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 2.7 CFM (0.076m³/min) | 0.116 in H2O (29.0 Pa) | Ball | Tubeaxial | - | 21.0dB | 720 mW | 7500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
|
|
1204KL-04W-B40-B00FAN AXIAL 30X10MM 12VDC WIRE |
3,498 |
|
规格书 |
1204KL | Bulk | Obsolete | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 3.2 CFM (0.090m³/min) | 0.148 in H2O (37.0 Pa) | Ball | Tubeaxial | - | 23.0dB | 840 mW | 9000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.019 lb (8.62 g) |
