购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WL1424G5D001140X51MM 24V,SPLASH & DUST PROOF |
4,055 |
|
规格书 |
San Ace 140W | Box | Active | 24VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL1412M5D001140X51MM 12V,SPLASH & DUST PROOF |
4,806 |
|
规格书 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL1412M5001140X51MM 12V,SPLASH & DUST PROOF |
2,867 |
|
规格书 |
San Ace 140W | Box | Active | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 5.16 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
_Series.JPG)
|
6224NMFAN AXL 171.5X50.8MM 24VDC TERM |
2,332 |
|
规格书 |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | - | 50.0dB(A) | 12 W | 2850 RPM | 2 Terminals | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|

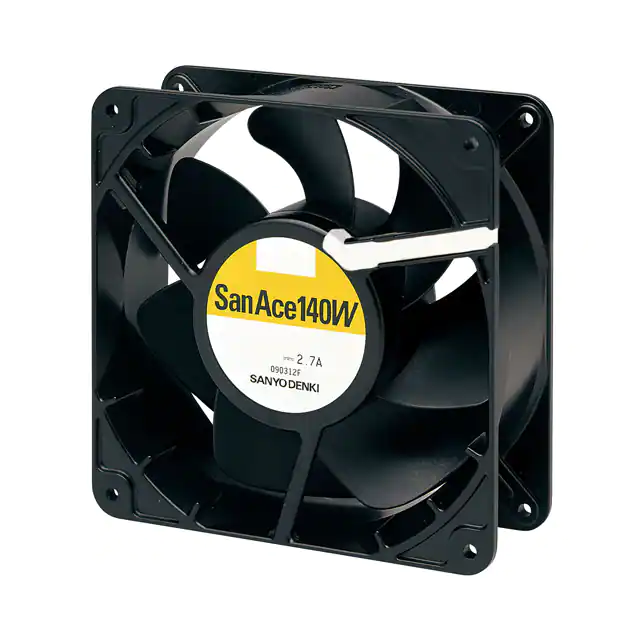

9WB1412S502FAN AXIAL 140X51MM 12VDC WIRE |
2,916 |
|
规格书 |
San Ace 140W | Box | Obsolete | 12VDC | Square - 140mm L x 140mm H | 51.00mm | 286.2 CFM (8.01m³/min) | 0.960 in H2O (239.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.0dB(A) | 32.4 W | 4200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.543 lb (700.0 g) |
|

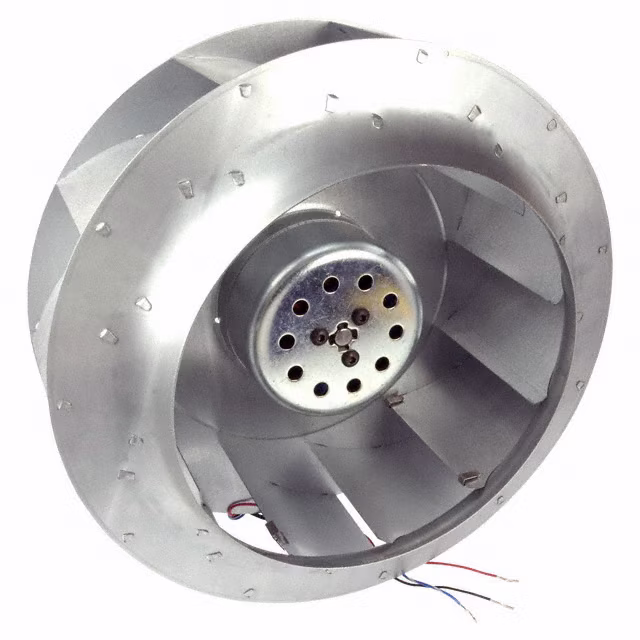

19039882AFAN IMP 281X125MM DD114924B1A |
4,978 |
|
规格书 |
Diplomat | Bulk | Active | 24VDC | Round - 281mm Dia | 125.0mm | 1100.0 CFM (30.80m³/min) | 1.850 in H2O (460.8 Pa) | Ball | Motorized Impellers | Speed Sensor (Tach) | 68.6dB(A) | 115 W | 1800 RPM | 3 Wire Leads | - | - | - | 3.5 lbs (1.6 kg) |
|
|
19039883AFAN MOTOR IMP 280X125MM 48V TTL |
3,143 |
|
- |
Diplomat | - | Active | 48VDC | Round - 281mm Dia | 125.0mm | 1100.0 CFM (30.80m³/min) | 1.850 in H2O (460.8 Pa) | Ball | Motorized Impellers | Speed Sensor (Tach) | 68.6dB(A) | 115 W | 1975 RPM | 3 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | - | 3.5 lbs (1.6 kg) |
|
G2G097-AA22-50FAN BLOWER 143X41MM 48VDC WIRE |
3,782 |
|
规格书 |
G2G097 | - | Obsolete | 48VDC | Rectangular/Rounded - 143mm L x 137mm H | 41.00mm | 50.0 CFM (1.40m³/min) | - | Ball | Blower | - | 58.0dB(A) | 19 W | - | 2 Wire Leads | - | - | - | 2 lbs (907.2 g) |
|
|
9CRH0812P8G00180X80MM 12VDC TACH/PWM |
4,480 |
|
- |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 80.00mm | 201.4 CFM (5.7m³/min) | 7.829 in H2O (1950.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 82.0dB(A) | 120 W | 15400 Front, 15200 Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

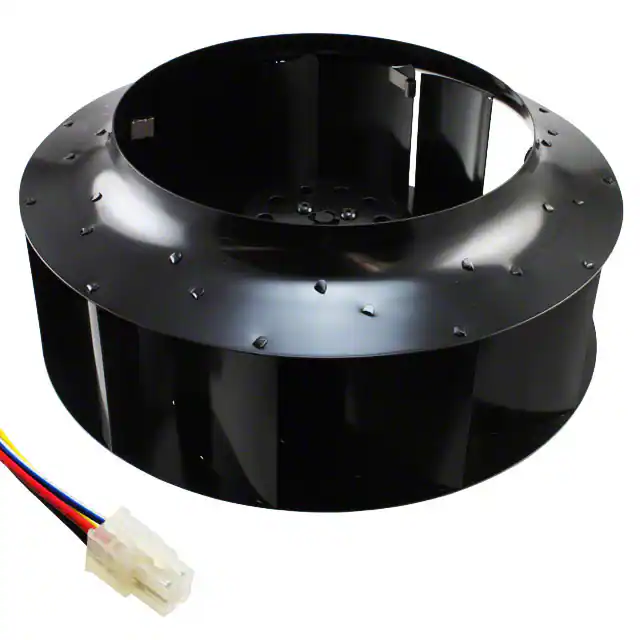

19040965AFAN IMP MTR 280X125MM DDE114948K |
2,056 |
|
规格书 |
Diplomat | Bulk | Active | 48VDC | Round - 280mm Dia | 125.0mm | 1050.0 CFM (29.40m³/min) | 1.700 in H2O (423.5 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 78.0dB(A) | 125 W | 1900 RPM | 3 Wire Leads | - | -13 ~ 158°F (-25 ~ 70°C) | cUL, UL | 3.5 lbs (1.6 kg) |
|
|
9WL1448H5002DC AXIAL FAN 140X38 48V |
3,838 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | - | - | 14.9 W | - | 2 Wire Leads | - | - | - | - |
|
|
9WL1448A5002140X51MM 48V,SPLASH & DUST PROOF |
4,026 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|

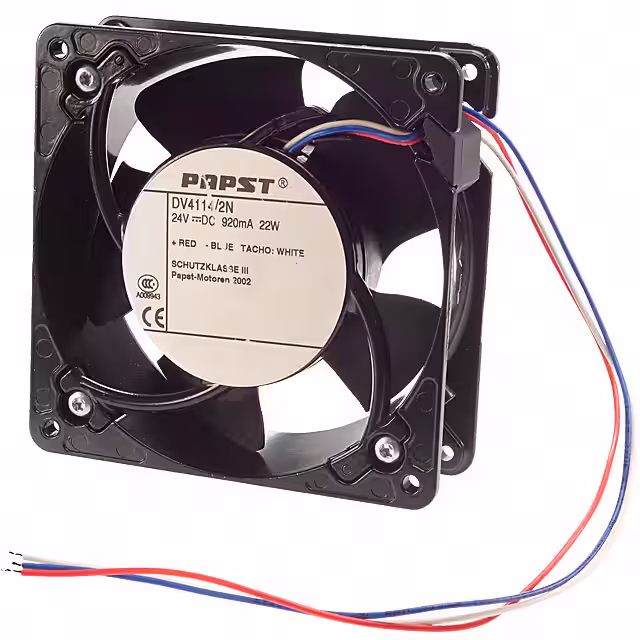

DV4114/2N-900FAN AXIAL 119X38MM 24VDC WIRE |
3,614 |
|
规格书 |
DV4100 | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 161.9 CFM (4.53m³/min) | - | Ball | Tubeaxial | Speed Sensor (Tach) | 60.0dB(A) | 22 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, CSA, UL, VDE | 0.992 lb (449.96 g) |
|
|
6318N/2H3PUDC TUBEAXIAL FAN |
4,994 |
|
- |
- | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 400.5 CFM (11.21m³/min) | 1.807 in H2O (450.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 58 W | 5000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
9WL1448H5001DC AXIAL FAN 140X38 48V TACH |
1,127 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | - | 14.9 W | - | 3 Wire Leads | - | - | - | - |
|
|
9WL1448A5D001140X51MM 48V,SPLASH & DUST PROOF |
1,653 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL1448H5D001140X51MM 48V,SPLASH & DUST PROOF |
3,887 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
|
|
9WL1448M5001140X51MM 48V,SPLASH & DUST PROOF |
1,476 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 109.5 CFM (3.07m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 40.0dB(A) | 7.2 W | 2600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL1448A5001140X51MM 48V,SPLASH & DUST PROOF |
2,719 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 243.8 CFM (6.90m³/min) | 2.170 in H2O (540.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 61.0dB(A) | 31.7 W | 5700 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9WL1448M5D001140X51MM 48V,SPLASH & DUST PROOF |
4,170 |
|
规格书 |
San Ace 140W | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | cURus, TUV | - |
