购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFE0514B1-000U-F9948VDC FAN 140X51MM TACH |
4,401 |
|
规格书 |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 61.4dB(A) | 22.56 W | 5000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

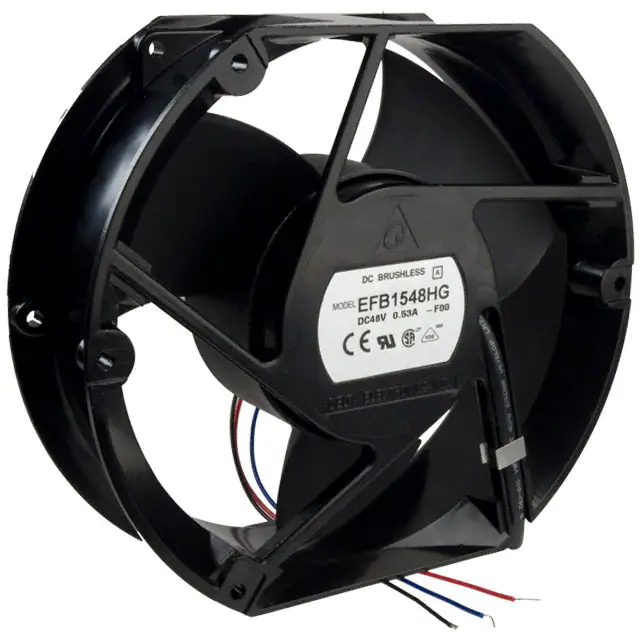

EFB1548HG-F00FAN AXIAL 172X50.8MM 48VDC WIRE |
3,292 |
|
规格书 |
EFB | Tray | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 251.8 CFM (7.05m³/min) | 0.689 in H2O (171.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 14.88 W | 3350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
PFE0514B1-000U-Q9948VDC FAN 140X51MM ALARM/PWM |
2,257 |
|
规格书 |
PF | Box | Active | 48VDC | Square - 140mm L x 140mm H | 51.00mm | 250.3 CFM (7.01m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 61.4dB(A) | 22.56 W | 5000 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
9LG0912H1D00192X38MM 12V, HIGH PERF LONG LIFE |
4,412 |
|
规格书 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
17001139AFAN AXIAL 24VDC SDD24B1E2X-E3 |
1,644 |
|
规格书 |
- | Bulk | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 41.78mm | 35.0 CFM (0.980m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 47.6dB(A) | 3 W | 3500 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | - |
|
|
17250VA-24P-GA-00FAN AXIAL 172.7X50.8MM 24VDC |
2,287 |
|
规格书 |
17250VA | Bulk | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 282.0 CFM (7.90m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 26.4 W | 3750 RPM | 2 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
17250VA-48Q-GA-00FAN AXIAL 172.7X50.8MM 48VDC |
1,199 |
|
规格书 |
17250VA | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 300.0 CFM (8.40m³/min) | 1.070 in H2O (266.5 Pa) | Ball | Tubeaxial | Auto Restart | 58.0dB | 31.2 W | 4000 RPM | 2 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
17250VA-48P-GA-00FAN AXIAL 172.7X50.8MM 48VDC |
2,134 |
|
规格书 |
17250VA | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 282.0 CFM (7.90m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB | 26.4 W | 3750 RPM | 2 Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
19039030AFAN AXIAL 119.1X39.1MM MD24B5-E2 |
2,073 |
|
规格书 |
Muffin XL | Box | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 39.12mm | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 50.0dB(A) | 6 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | 1.4 lbs (635.0 g) |
|
EFB1724HGFAN AXIAL 172X50.8MM 24VDC WIRE |
2,963 |
|
规格书 |
EFB | Bulk | Active | 24VDC | Round - 172mm Dia | 50.80mm | 251.8 CFM (7.05m³/min) | 0.689 in H2O (171.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 53.0dB(A) | 13.44 W | 3350 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
|
9LG0912P1H001FAN AXIAL 92X38MM 12VDC WIRE |
3,596 |
|
规格书 |
San Ace 92L | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 130.6 CFM (3.66m³/min) | 1.720 in H2O (428.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 24 W | 9000 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.604 lb (273.97 g) |
|
RV40-18/12HFAN BLOWER CF 105X58.85MM 12VDC |
4,093 |
|
规格书 |
RV40 | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 105mm L x 77.3mm H | 58.85mm | 14.1 CFM (0.395m³/min) | - | Ball | Blower, Centrifugal | Locked Rotor Protection, Speed Sensor (Tach) | - | 4.5 W | 4800 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
OD172SAPL-12LBDC FAN 12V 172X150X38MM |
4,677 |
|
规格书 |
OD172SAPL | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 120.0 CFM (3.36m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAPL-24LBDC FAN 24V 172X150X38MM |
2,107 |
|
规格书 |
OD172SAPL | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 120.0 CFM (3.36m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 40.0dB(A) | - | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAPL-12MBDC FAN 12V 172X150X38MM |
3,504 |
|
规格书 |
OD172SAPL | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 190.0 CFM (5.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | - | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
OD172SAPL-24MBDC FAN 24V 172X150X38MM |
2,199 |
|
规格书 |
OD172SAPL | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 190.0 CFM (5.32m³/min) | 0.510 in H2O (127.0 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
|
19039841AFAN MOTOR IMP 175X53MM 12V TTL |
3,485 |
|
规格书 |
Diplomat | - | Active | 12VDC | Round - 175mm Dia | 53.00mm | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 67.2dB(A) | 33.6 W | 3250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUL, UL | 2.5 lbs (1.1 kg) |
|
|
19040161AFAN AXIAL 254X88.9MM CD48B7 48V |
1,828 |
|
规格书 |
- | Box | Active | 48VDC | Round - 254mm Dia | 88.90mm | 550.0 CFM (15.40m³/min) | - | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 49.1dB(A) | 30.2 W | 1640 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, UL | - |
|
|
109E5712F502FAN AXIAL 172X51MM 12VDC WIRE |
1,687 |
|
规格书 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 180.0 CFM (5.04m³/min) | 0.380 in H2O (94.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 47.0dB(A) | 8.16 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
|
|
109E5712H502FAN AXIAL 172X51MM 12VDC WIRE |
1,951 |
|
规格书 |
San Ace 172 | Box | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.551 in H2O (137.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.0dB(A) | 14.4 W | 3050 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.7 lbs (760.0 g) |
