| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4715FS-12T-B00-D00FAN AXIAL 119X38MM 115VAC TERM |
2,630 |
|
规格书 |
FS | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 60.0 CFM (1.68m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 31.0dB | 7.50W | 1700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
11938MB-A1N-EP-00FAN 119MM X 38MM 115VAC TERMINAL |
4,881 |
|
规格书 |
11938MB | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 14.50W | 2900 RPM | 3 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OA109AN-22-1TBFAN AC 120X38 220V BALL |
3,767 |
|
规格书 |
OA109 | Bulk | Active | 220VAC | Square - 120mm L x 120mm H | 38.50mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | - |
|
OA92AP-11-2TBFAN AXIAL 92X26MM 115VAC TERM |
4,278 |
|
规格书 |
OA92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 26.00mm | 27.0 CFM (0.756m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 22.0dB | 10.00W | 2300 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|
|
OA92AP-22-2TBFAN AXIAL 92X26MM 230VAC TERM |
1,750 |
|
规格书 |
OA92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 26.00mm | 27.0 CFM (0.756m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 22.0dB | 10.00W | 2300 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|
OA825AP-11-3TBFAN AXIAL 80X27MM 115VAC TERM |
1,203 |
|
规格书 |
OA825 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 27.00mm | 16.0 CFM (0.448m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 4.00W | 1900 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.573 lb (259.91 g) |
|
OA80AP-22-3TBFAN AXIAL 80X38MM 230VAC TERM |
2,914 |
|
规格书 |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 17.0 CFM (0.476m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 12.00W | 1950 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OA80AP-11-3WBFAN AXIAL 80X38MM 115VAC WIRE |
1,151 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 17.0 CFM (0.476m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 9.00W | 1950 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OA80AP-11-2WBFAN AXIAL 80X38MM 115VAC WIRE |
4,320 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 25.0 CFM (0.700m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 32.0dB | 9.00W | 2400 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OAB800AN-11-2WBFAN BLOWER 125X39MM 115VAC WIRE |
1,593 |
|
规格书 |
OAB800AN | Box | Active | 115VAC | Rectangular/Rounded - 125mm L x 126mm H | 39.00mm | 22.0 CFM (0.616m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Blower | - | 39.0dB | 12.00W | 2100 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.2 lbs (544.3 g) |
|
|
OAB800AN-11-3WBFAN BLOWER 125X39MM 115VAC WIRE |
1,065 |
|
规格书 |
OAB800AN | Box | Active | 115VAC | Rectangular/Rounded - 125mm L x 126mm H | 39.00mm | 14.0 CFM (0.392m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Blower | - | 28.0dB | 9.00W | 1400 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | 1.2 lbs (544.3 g) |
|
OA109LFG221TFAN AXIAL 148.5X76.5MM 230VAC |
3,859 |
|
规格书 |
OA109LFG | Box | Active | 230VAC | Square - 148.5mm L x 148.5mm H | 76.50mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Kit | 46.0dB | 15.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
15038PB-B3J-EA-00FAN 150MM X 172MM X 38MM 230VAC |
4,047 |
|
规格书 |
15038PB | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.5 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
4530ZFAN AXIAL 119X38MM 115VAC TERM |
1,338 |
|
规格书 |
4000Z | Bulk | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 70.5 CFM (1.97m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 12.00W | 2000 RPM | 2 Terminals | - | 14 ~ 167°F (-10 ~ 75°C) | CE, CSA, UL, VDE | 0.075 lb (34.19 g) |
|
9AD0901M121FAN 92X38MM 90/264VAC RBLS |
2,110 |
|
规格书 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 41.7 CFM (1.17m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 3.00W | 3100 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.551 lb (249.93 g) |
|
FDA2-17251NBHT4DFAN AXIAL 172X51MM 115VAC TERM |
1,539 |
|
规格书 |
HPLC, FDA2-17251 | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 151mm H | 51.00mm | 250.0 CFM (7.00m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | - | 59.0dB(A) | 25.00W | 3100 RPM | 2 Terminals | IP56M - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV | 2 lbs (907.2 g) |
|
R87F-A6A93HPFAN AXIAL 92X25MM 230VAC TERM |
3,666 |
|
规格书 |
R87F | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 35.7 CFM (1.00m³/min) | 0.275 in H2O (68.6 Pa) | Ball | Tubeaxial | - | 36.0dB | 11.00W | 3050 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 0.661 lb (299.82 g) |
|
R87F-A4A13HPFAN AXIAL 120X25MM 200VAC TERM |
2,030 |
|
规格书 |
R87F | Bulk | Active | 200VAC | Square - 120mm L x 120mm H | 25.00mm | 78.5 CFM (2.20m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | - | 39.0dB | 14.00W | 2400 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 0.772 lb (350.17 g) |
|
|
R87F-A1A13HPFAN AXIAL 120X25MM 100VAC TERM |
2,153 |
|
规格书 |
R87F | Bulk | Active | 100VAC | Square - 120mm L x 120mm H | 25.00mm | 78.5 CFM (2.20m³/min) | 0.177 in H2O (44.1 Pa) | Ball | Tubeaxial | - | 39.0dB | 14.00W | 2400 RPM | 2 Terminals | - | -22 ~ 158°F (-30 ~ 70°C) | CSA, UL | 0.772 lb (350.17 g) |
|

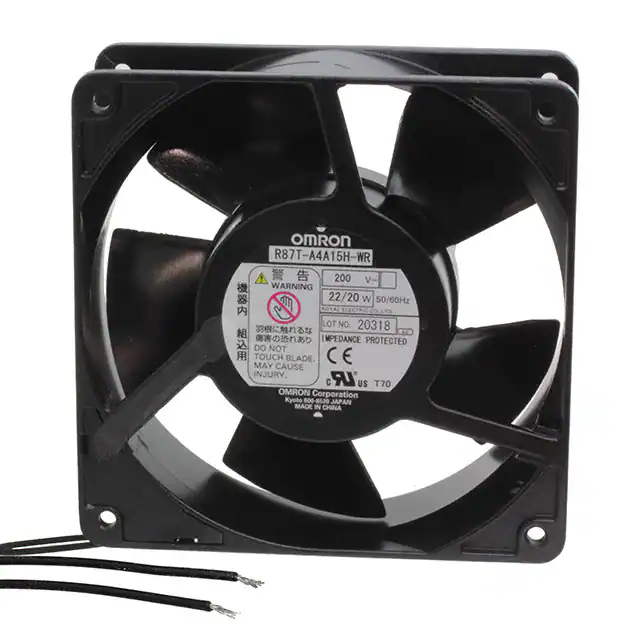

R87T-A4A15H-WRFAN AXIAL 119.5X38MM 200VAC WIRE |
3,674 |
|
规格书 |
R87T | Bulk | Active | 200VAC | Square - 119.5mm L x 119.5mm H | 38.00mm | 114.3 CFM (3.20m³/min) | 0.321 in H2O (80.0 Pa) | Ball | Tubeaxial | - | 46.0dB | 20.00W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL | 1.4 lbs (635 g) |
