购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

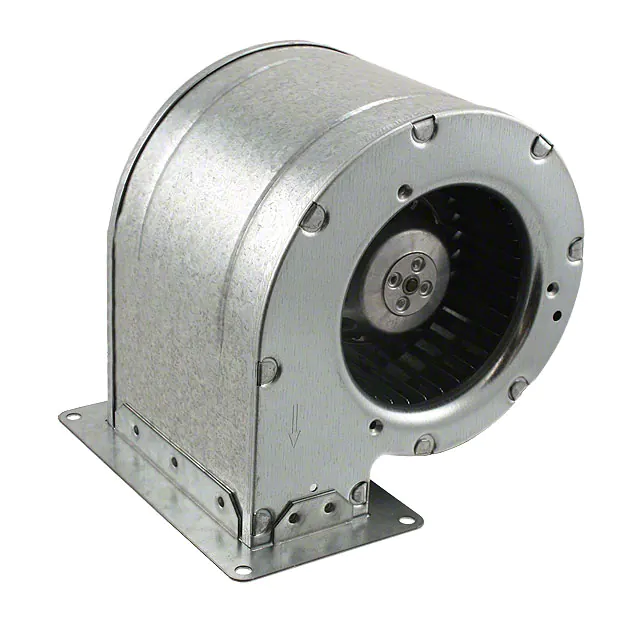

D2E097-CB01-12FAN BLWR CENT 144X140MM 230VAC |
4,539 |
|
规格书 |
D2E097 | Bulk | Active | 230VAC | Rectangular - 144mm L x 137mm H (97mm Dia) | 140.0mm | 106.0 CFM (2.97m³/min) | - | Ball | Blower, Centrifugal | - | 47.0dB(A) | 42.00W | - | 2 Wire Leads | - | - | - | 2.9 lbs (1.3 kg) |
|
OA280AP-22-1WB1868FAN 230AC 280X280X89MM IP68 WIRE |
2,187 |
|
规格书 |
OA280AP | Box | Active | 230VAC | Square - 280mm L x 280mm H | 89.00mm | 1300.0 CFM (36.40m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 73.0dB | 210W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, TUV, UR | 7.4 lbs (3.4 kg) |
|
A2D200-AA02-01AC AXIAL FAN |
2,889 |
|
规格书 |
A | Bulk | Active | 230/400VAC | Round - 195mm Dia | 72.50mm | - | 1.204 in H2O (299.9 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage | - | 70.0W | 3150 RPM | - | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CCC, CE | 3.7 lbs (1.7 kg) |
|

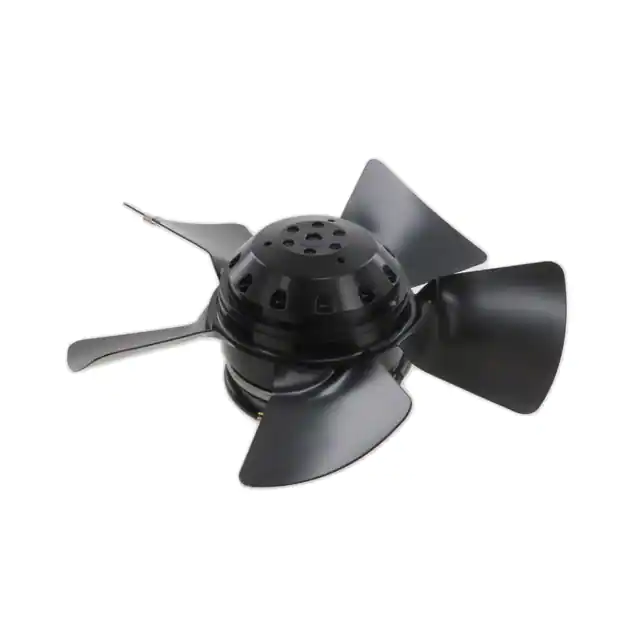

A2E250-AE65-10AC AXIAL FAN |
1,285 |
|
规格书 |
A2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 84.50mm | - | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 165W | 2750 RPM | 4 Wire Leads | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CE | - |
|
A2E250-AE65-02FAN AXIAL 250X83MM BALL 230VAC |
1,466 |
|
规格书 |
A | Bulk | Active | 230VAC | Round - 250mm Dia | 83.00mm | 1024.0 CFM (28.67m³/min) | 0.522 in H2O (130.0 Pa) | Ball | Tubeaxial | - | 73.0dB(A) | 165W | 2750 RPM | - | - | -13 ~ 122°F (-25 ~ 50°C) | CCC, CE, GOST, UL | 4.9 lbs (2.2 kg) |
|
R2E225-BE47-18MOTORIZED IMPELLER |
3,088 |
|
规格书 |
R2E225 | Bulk | Active | 230VAC | Round - 225mm Dia | 107.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 185W | 3000 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CE, CSA, UL | - |
|
A4E350-AA06-62AC AXIAL FAN |
1,468 |
|
规格书 |
A4E350 | Bulk | Active | 230VAC | Round - 353mm Dia | 101.5mm | - | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 205W | 1550 RPM | 4 Wire Leads | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC, CSA, UL | - |
|

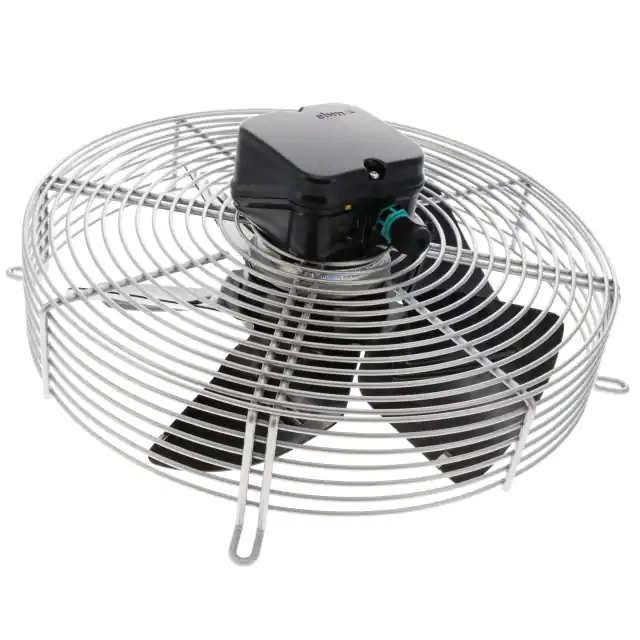

S4E315-AC08-07FAN AXIAL |
3,336 |
|
规格书 |
S4E315 | Bulk | Active | 230VAC | Round - 400mm Dia | 150.0mm | - | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 135W | 1530 RPM | Terminal Block | IP44 | -40 ~ 104°F (-40 ~ 40°C) | CCC, CE, EAC | - |
|

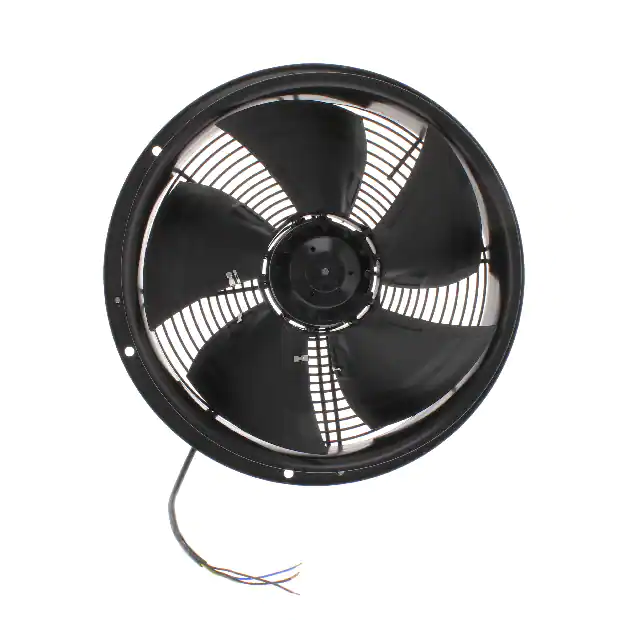

W4E315-CS20-70FAN AXIAL |
1,166 |
|
规格书 |
W4E315 | Bulk | Active | 230VAC | Round - 397mm Dia | 119.8mm | - | 0.341 in H2O (85.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 155W | 1490 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 158°F (-25 ~ 70°C) | CE, CSA, UL | - |
|
A2D250-AA06-52AC AXIAL FAN |
3,382 |
|
规格书 |
A2D250 | Bulk | Active | 266/460VAC | Round - 250mm Dia | 83.00mm | - | 0.502 in H2O (125.0 Pa) | Ball | Tubeaxial, 3 Phase | Dual Voltage, Thermal Overload Protector (TOP) | - | 150W | 2900 RPM | 9 Wire Leads with Splice Terminals | IP44 | -13 ~ 149°F (-25 ~ 65°C) | CSA, UL | - |
|

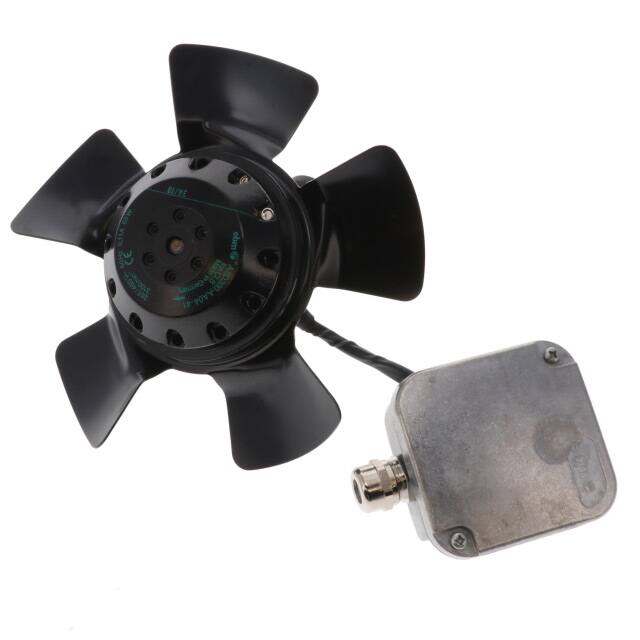

A2D200-AA04-41AC AXIAL FAN |
1,875 |
|
规格书 |
A2D200 | Bulk | Active | 230/400VAC | Round - 195mm Dia | 73.00mm | - | - | Ball | Tubeaxial, 3 Phase | - | - | 70.0W | 3150 RPM | - | IP44 | - | - | - |
|

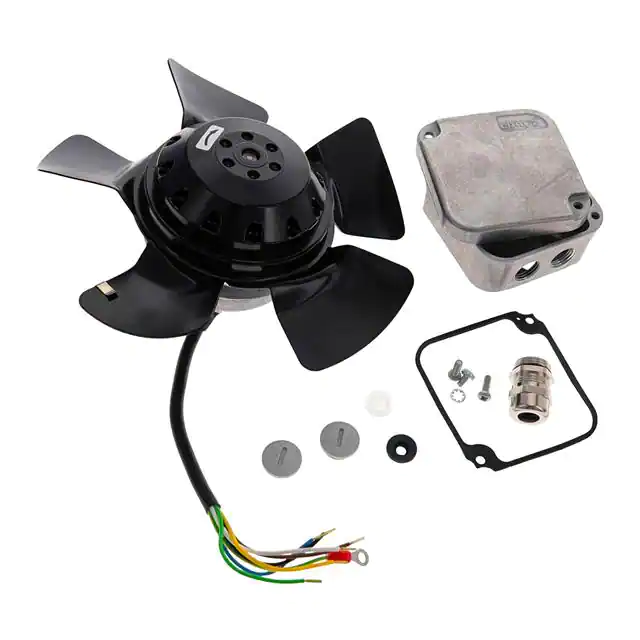

A2D200-AA04-29FAN MOTORIZED IMPELLERS 460VAC |
2,744 |
|
规格书 |
A | Bulk | Active | 230/400VAC | Round - 195mm Dia | - | - | - | - | Tubeaxial, 3 Phase | Dual Voltage | - | 65.0W | - | - | IP44 | - | - | - |
|
G2E120-AR77-01MOTORIZED IMPELLER |
4,466 |
|
规格书 |
G2E120 | Bulk | Active | 230VAC | Rectangular/Rounded - 178mm L x 193.5mm H | 115.0mm | - | - | Ball | Blower, Centrifugal | Capacitor, Thermal Overload Protector (TOP) | - | 100W | 2450 RPM | 4 Wire Leads | IP44 | -13 ~ 131°F (-25 ~ 55°C) | CCC, CE, EAC | - |
|
A4E350-AA06-02AC AXIAL FAN |
4,434 |
|
- |
A4E350 | Bulk | Active | 230VAC | Round - 353mm Dia | 101.5mm | 1107.3 CFM (31.00m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 205W | 1550 RPM | 4 Wire Leads | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CCC, CE, EAC, UL | - |
|

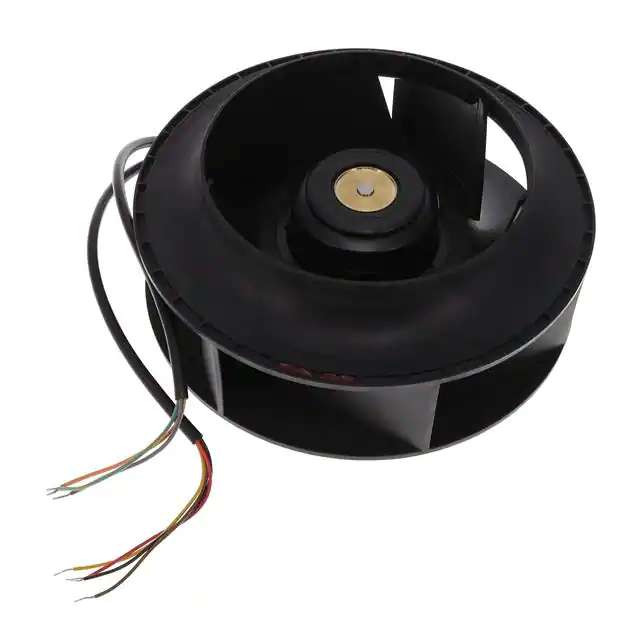

9ADTS11P0G001225X99MM, ACDC, 115V, CENTRIFUGA |
2,587 |
|
规格书 |
San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 99.00mm | 812.0 CFM (22.74m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 155W | 3200 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|

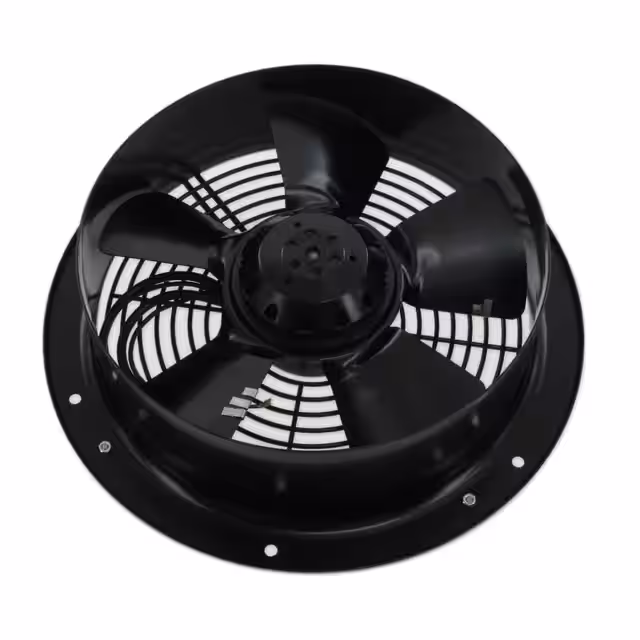

W4S250-CA20-56FAN AXIAL |
3,099 |
|
规格书 |
W4S250 | Bulk | Active | 115VAC | Round - 320mm Dia | 88.90mm | - | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 80.0W | 1550 RPM | 3 Wire Leads with Splice Terminals, 3 Wire Leads with Splice Terminals | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CE, UL | - |
|

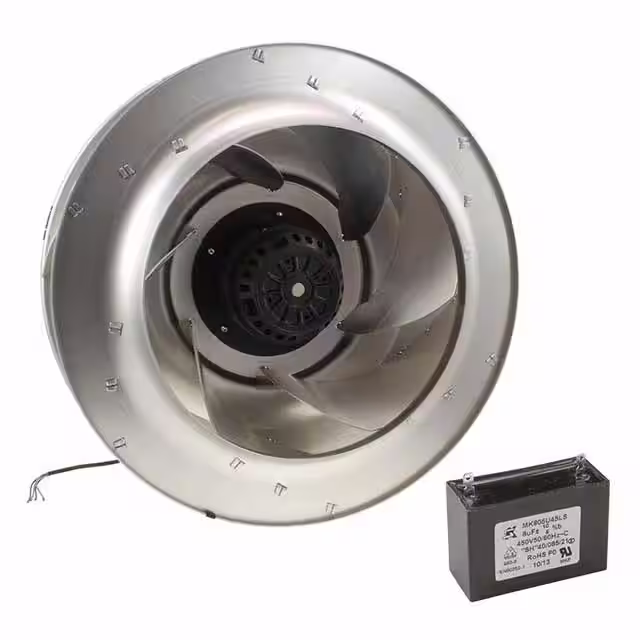

UF360AAA23-H1C4AIMPELLER 360X167MM 230VAC |
2,262 |
|
规格书 |
UF360AAA | Bulk | Active | 230VAC | Round - 360mm Dia | 167.3mm | 1645.0 CFM (46.06m³/min) | 2.200 in H2O (548.0 Pa) | Ball | Motorized Impellers | Permanent Split Capacitor Motor | 70.0dB(A) | 265W | 1600 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | 11 lbs (5 kg) |
|
R2E250-AW50-05MOTORIZED IMPELLER |
1,670 |
|
规格书 |
R2E250 | Bulk | Active | 230VAC | Round - 250mm Dia | 141.0mm | - | - | Ball | Motorized Impellers | Capacitor, Thermal Overload Protector (TOP) | - | 185W | 2650 RPM | 4 Wire Leads with Splice Terminals | IP44 | -13 ~ 122°F (-25 ~ 50°C) | CCC | - |
|
A4E400-AP02-01AC AXIAL FAN |
1,102 |
|
规格书 |
A4E400 | Bulk | Active | 230VAC | Round - 392mm Dia | 117.0mm | 1575.6 CFM (44.12m³/min) | 0.301 in H2O (75.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | - | 240W | 1700 RPM | 4 Wire Leads | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CCC, CE, EAC | - |
|

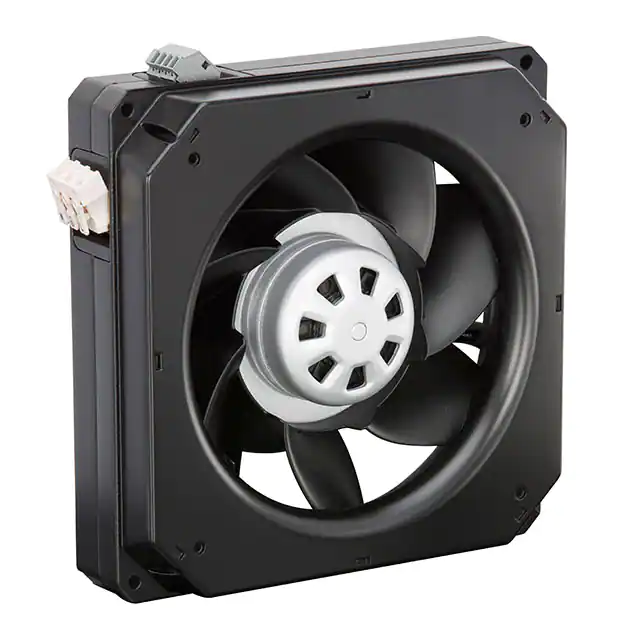

K3G200-AD21-01FAN 230VAC 245.5X90MM 547CFM 80W |
4,528 |
|
规格书 |
K3G200-AD | Bulk | Active | 230VAC | Square - 245.5mm L x 245.5mm H | 90.00mm | 547.0 CFM (15.32m³/min) | 0.880 in H2O (219.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | - | 80.0W | 3100 RPM | Terminal Block | IP54 - Dust Protected, Water Resistant | -13 ~ 140°F (-25 ~ 60°C) | UL | 4.4 lbs (2 kg) |
