购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA80AP-11-1TSFAN AXIAL 80X38MM 115VAC TERM |
4,030 |
|
规格书 |
OA80 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Sleeve | Tubeaxial | - | 36.0dB | 9.00W | 3000 RPM | 2 Terminals | - | 14 ~ 122°F (-10 ~ 50°C) | cURus, TUV | - |
|

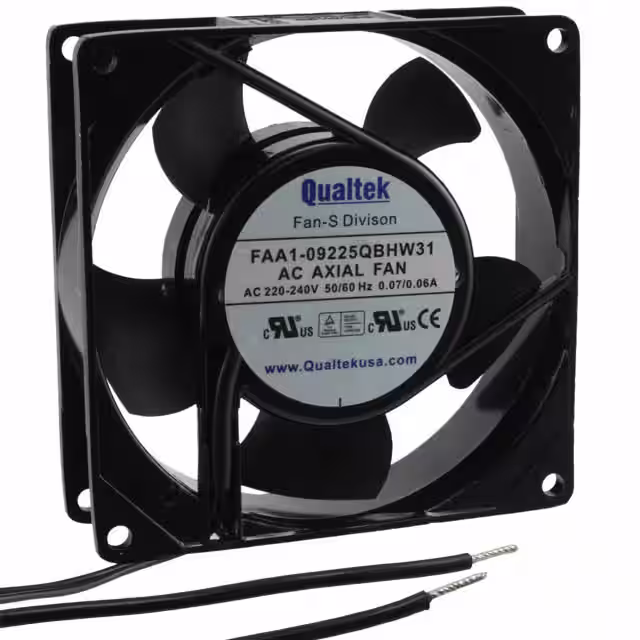

FAA1-09225QBHW31FAN AXIAL 92X25MM 230VAC WIRE |
4,646 |
|
规格书 |
FAA1-09225 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 34.0 CFM (0.952m³/min) | 0.116 in H2O (28.9 Pa) | Ball | Tubeaxial | - | 30.1dB(A) | 10.00W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.507 lb (229.97 g) |
|
UF12AE23-BWHRFAN AXIAL 120X38MM 230VAC WIRE |
3,134 |
|
规格书 |
UF12AE | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 15.00W | 3100 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
|

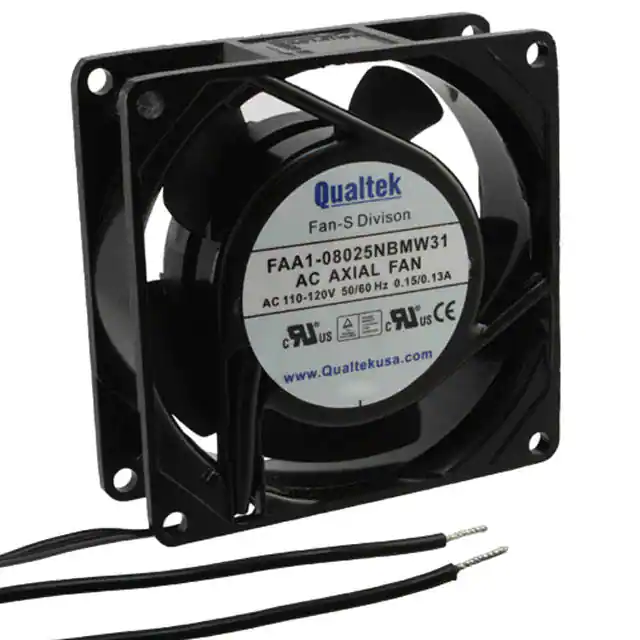

FAA1-08025NBMW31FAN AXIAL 80X25MM 115VAC WIRE |
1,257 |
|
规格书 |
FAA1-08025 | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 19.0 CFM (0.532m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | - | 24.0dB(A) | 5.00W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.463 lb (210.01 g) |
|

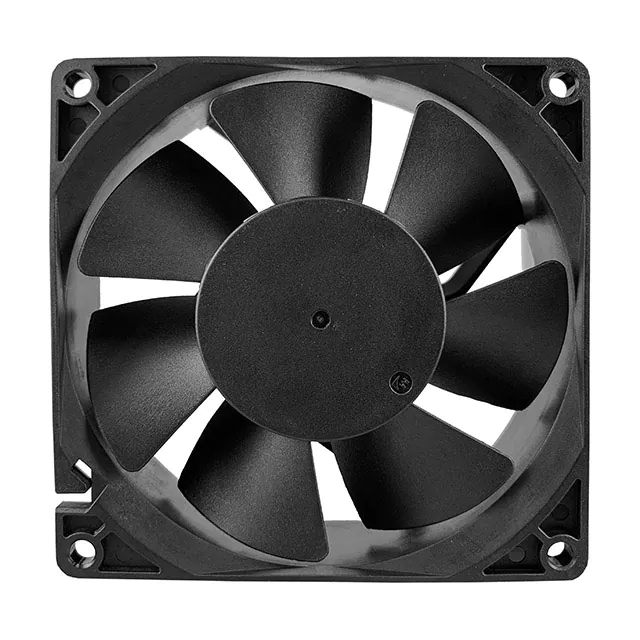

FMA1-09225WBHT12EC FAN, 92X92X25MM, 2-BALL BEARI |
1,648 |
|
规格书 |
FMA1-09225 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 25.00mm | 55.6 CFM (1.56m³/min) | 0.265 in H2O (66.0 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 44.0dB(A) | 6.00W | 3500 RPM | 2 Terminals | IP54 - Dust Protected, Water Resistant | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus | - |
|
LPH12A99-BTHR-PCEC FAN AXIAL 120 X 120 X 38MM W/ |
2,486 |
|
规格书 |
LPH12A99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.363 in H2O (90.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Parylene Coating | 49.0dB(A) | 9.50W | 3500 RPM | 2 Terminals | - | - | - | 0.631 lb (286.20 g) |
|
OA109AP-11-1TBRFAN AXIAL 119.5X38.5MM 115VAC |
4,255 |
|
规格书 |
OA109 | Box | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 99.0 CFM (2.77m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Reverse Air Flow | 47.0dB | 15.00W | 3100 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.2 lbs (544.3 g) |
|
OA125AP-11-2WBFAN AXIAL 119.5X26.2MM 115VAC |
3,515 |
|
规格书 |
OA125 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 37.0dB | 11.00W | 2500 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.73 lb (331.12 g) |
|
UF80B12-BTHRFAN AXIAL 80X25MM 115VAC TERM |
1,359 |
|
规格书 |
UF80B | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 11.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.573 lb (260.00 g) |
|

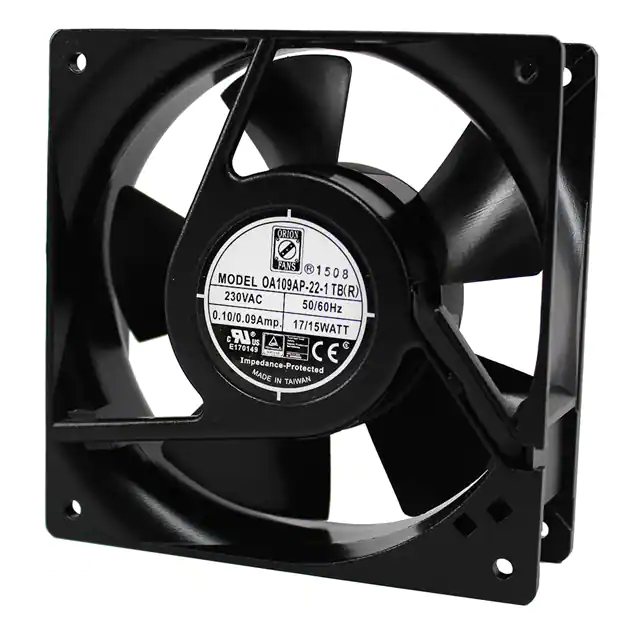

OA109AP-22-1TBRFAN AXIAL 119.5X38.5MM 230VAC |
1,387 |
|
规格书 |
OA109 | Box | Active | 230VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 99.0 CFM (2.77m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Reverse Air Flow | 47.0dB | 15.00W | 3100 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.2 lbs (544.3 g) |
|
OA125AP-11-2TBFAN AXIAL 119.5X26.2MM 115VAC |
4,384 |
|
规格书 |
OA125 | Box | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | - | 37.0dB | 11.00W | 2500 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.73 lb (331.12 g) |
|
OA92AP-11-3TBFAN AXIAL 92X26MM 115VAC TERM |
3,461 |
|
规格书 |
OA92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 26.00mm | 22.0 CFM (0.616m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 6.00W | 1900 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|

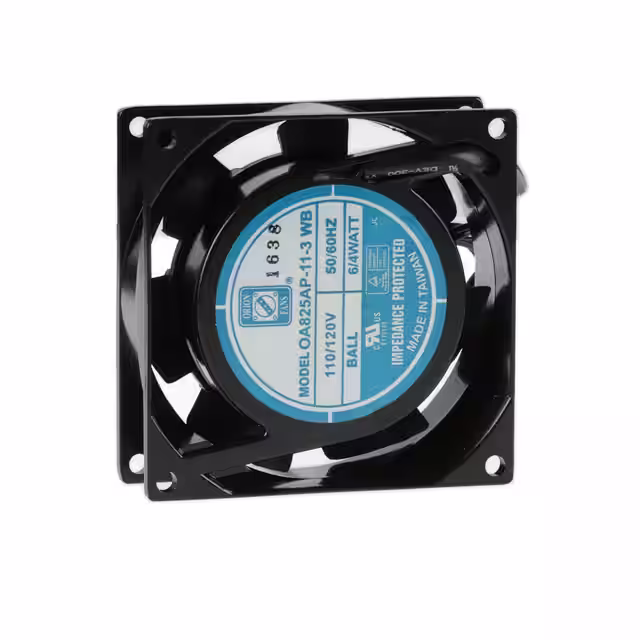

OA825AP-11-3WBFAN AXIAL 80X27MM 115VAC WIRE |
1,855 |
|
规格书 |
OA825 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 27.00mm | 16.0 CFM (0.448m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 4.00W | 1900 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.573 lb (259.91 g) |
|
OA92AP-11-3WBFAN AXIAL 92X26MM 115VAC WIRE |
3,899 |
|
规格书 |
OA92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 26.00mm | 22.0 CFM (0.616m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | - | 19.0dB | 6.00W | 1900 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.644 lb (292.11 g) |
|
|
OA80AP-11-3TBFAN AXIAL 80X38MM 115VAC TERM |
3,947 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 17.0 CFM (0.476m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | - | 28.0dB | 9.00W | 1950 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OA125EC-UR-1WBEC FAN 120X25MM 85-265VAC 80CFM |
3,282 |
|
规格书 |
OA125EC | Box | Active | 110/220VAC | Square - 120mm L x 120mm H | 25.00mm | 80.0 CFM (2.24m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 49.0dB | 2.80W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.397 lb (180.08 g) |
|
SF11592A-1092HSL.GNFAN AXIAL 92X25MM 115VAC WIRE |
3,357 |
|
规格书 |
SF | Bulk | Active | 115VAC | Square - 91.5mm L x 91.5mm H | 25.50mm | 36.0 CFM (1.01m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 39.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.617 lb (280.00 g) |
|
OA938AP-11-2TBFAN AXIAL 92X38.5MM 115VAC TERM |
3,168 |
|
规格书 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 38.50mm | 39.0 CFM (1.09m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 23.0dB | 5.00W | 2400 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.992 lb (449.96 g) |
|
OA938AP-11-3WBFAN AC 92X38 115V BALL |
1,620 |
|
规格书 |
OA938 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 26.0 CFM (0.728m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 19.0dB(A) | 3.00W | 1800 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

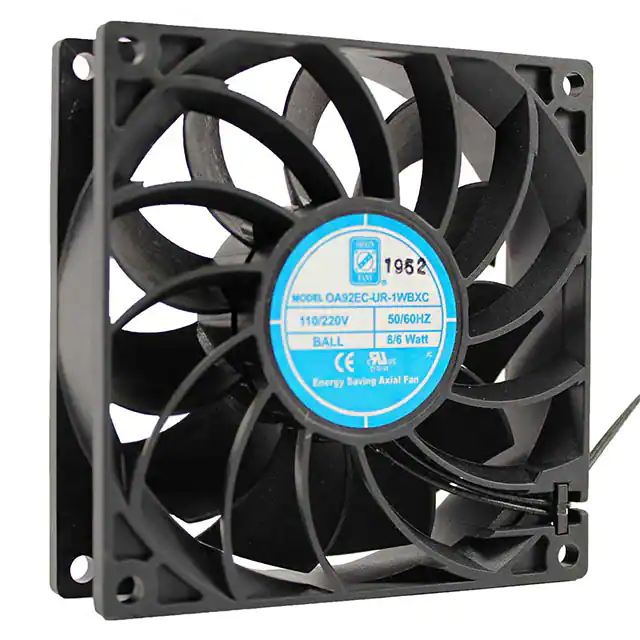

OA92EC-UR-1WBXCEC FAN 92X25MM 85-265VAC 56CFM |
4,282 |
|
规格书 |
OA92EC XC | Box | Active | 110/220VAC | Square - 92mm L x 92mm H | 25.00mm | 56.0 CFM (1.57m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 35.0dB | 4.00W | 2600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 0.225 lb (102.06 g) |
