| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15P12-BTHRFAN AXIAL 172X51MM 115VAC TERM |
4,470 |
|
规格书 |
UF15P | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 31.00W | 3400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|

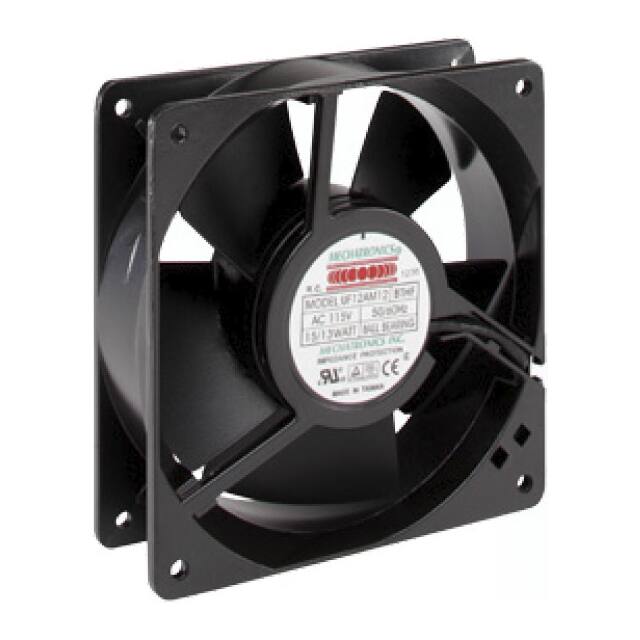

UF12AMR12-BTHR-FAC FAN AXIAL 120X120X38MM, 120VA |
1,275 |
|
规格书 |
UF12AMR | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 51.0dB(A) | 16.00W | 2950 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | - | - |
|

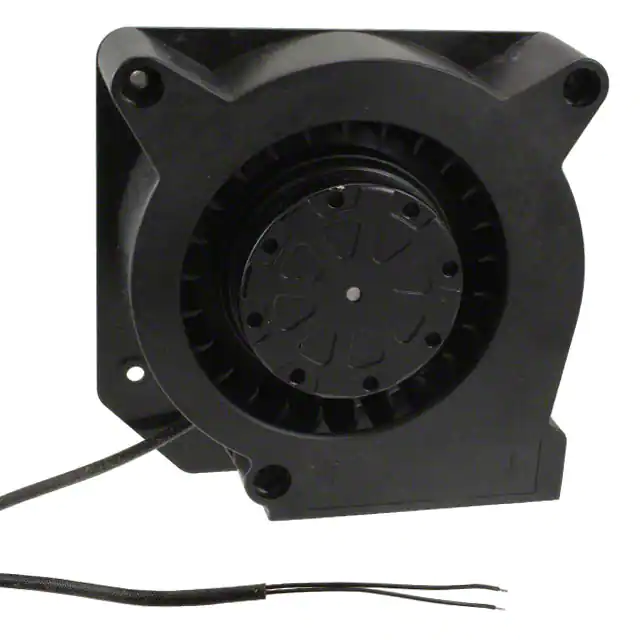

UF90DPB12-H1S2ABLOWER 120X37MM 115VAC |
2,467 |
|
规格书 |
UF90DPB | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 37.20mm | 21.0 CFM (0.588m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Blower, Centrifugal | Thermal Overload Protector (TOP) | 51.0dB(A) | 18.00W | 2700 RPM | 2 Wire Leads | - | -40 ~ 140°F (-40 ~ 60°C) | CE, cUL, TUV, UL | 1.4 lbs (635 g) |
|
UF12AM12-BWHR-H-L24FAN AXIAL 120X38MM 115VAC WIRE |
1,122 |
|
规格书 |
UF12AM | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 12.00W | 3100 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | - | 1.168 lbs (530 g) |
|

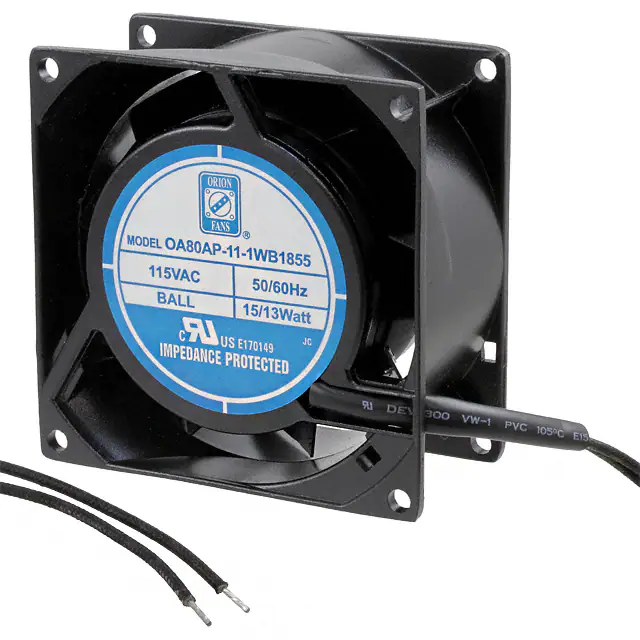

OA80AP-11-1WB1855FAN AXIAL 80X38MM 115VAC WIRE |
2,403 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 33.0 CFM (0.924m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 35.0dB | 13.00W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus, TUV | 0.95 lb (430.91 g) |
|
LPT60B99-BWHR-2EM-EXEC FAN AXIAL 60 X 60 X 25MM 100- |
4,052 |
|
规格书 |
LPT60B99 | Bulk | Active | 115/230VAC | Square - 60mm L x 60mm H | 25.00mm | 19.1 ~ 19.4 CFM (0.535 ~ 0.543m³/min) | 0.170/0.180 in H2O (42.3/44.8 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 31.0dB(A) | 2.00W, 2.40W | 3850/3950 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | ATEX | 0.133 lb (60.33 g) |
|
4850NFAN AXIAL 119X38MM 230VAC TERM |
1,450 |
|
规格书 |
4000N | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 58.8 CFM (1.64m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 10.00W | 1800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
UF12A23-BTHNSRFAN 120X38MM 230V IP55 SALT FOG |
1,620 |
|
规格书 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Salt Fog Rated | 46.0dB(A) | 15.00W | 3100 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
4656XFAN AXIAL 119X38MM 230VAC TERM |
1,900 |
|
规格书 |
4600X | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 51.0dB(A) | 18.00W | - | 2 Terminals | - | - | CSA, UL, VDE | 1.2 lbs (544.3 g) |
|
UF15AC12-BWHR-L36FAN 172X150X38MM 115VAC 36" WIRE |
4,306 |
|
规格书 |
UF15AC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.750 in H2O (186.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 58.0dB(A) | 28.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.6 lbs (725.7 g) |
|

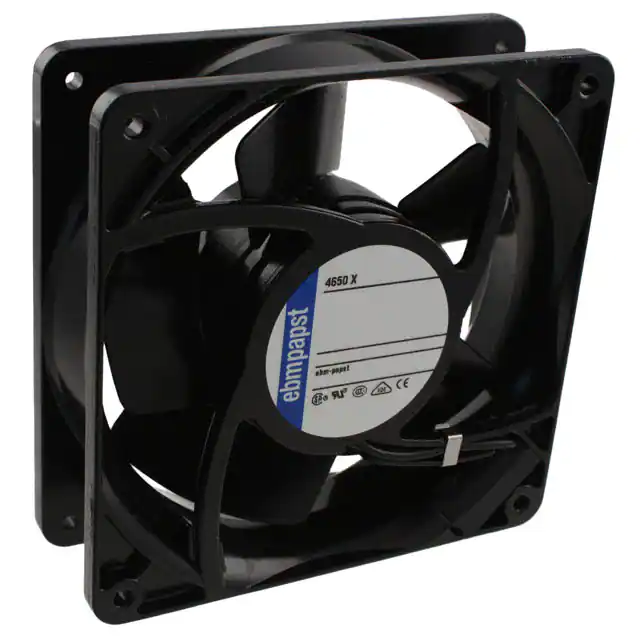

4650XFAN AXIAL 119X38MM 230VAC TERM |
4,534 |
|
规格书 |
4600X | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 50.0dB(A) | 18.00W | - | 2 Terminals | - | - | CCC, CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|

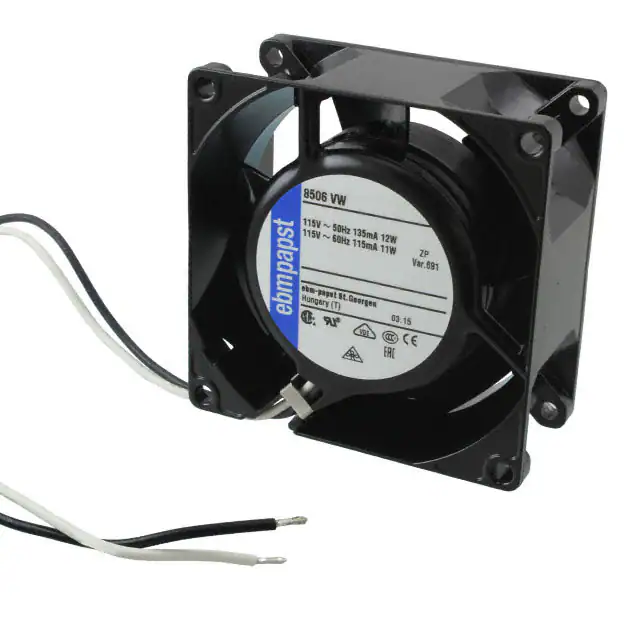

8506VW-691AC TUBEAXIAL FAN |
2,140 |
|
规格书 |
- | Bulk | Active | 115VAC | Square - 79.5mm L x 79.5mm H | 38.00mm | 31.2 CFM (0.874m³/min) | 0.241 in H2O (60.0 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 11.00W | 3300 RPM | 2 Wire Leads | - | -40 ~ 203°F (-40 ~ 95°C) | CCC, CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
MR83AUPE-144S20MOTOR 83X81MM 115/230 VAC IP54 |
4,831 |
|
规格书 |
MR | Box | Active | 115/230VAC | Square - 83mm L x 83mm H | 81.00mm | - | - | Ball | Motorized Impellers | Electronic Commutation (EC), Locked Rotor Protection | - | 15.00W | 1550 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | -40°C ~ 55°C | ATEX, cURus | - |
|
OA172AP11-1TBXCFAN AXIAL 172X51MM 115VAC TERM |
4,372 |
|
规格书 |
OA172AP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor | 61.0dB | 50.0W | 3300 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | 2.2 lbs (997.9 g) |
|
4656EZFAN AXIAL 108X39MM 230VAC WIRE |
2,197 |
|
规格书 |
- | Bulk | Active | 230VAC | Round - 108mm Dia | 39.00mm | 83.6 CFM (2.34m³/min) | 0.309 in H2O (77.0 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 18.00W | 2950 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CCC, CE, CSA, UL, VDE | - |
|
109S088FAN AXIAL 120X25MM 200VAC WIRE |
1,020 |
|
规格书 |
San Ace 120 | Box | Active | 200VAC | Square - 120mm L x 120mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | - | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 12.00W | 2900 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
109S084FAN 120X25MM 115VAC |
2,317 |
|
规格书 |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | - | 41.0dB(A) | 12.00W | 2900 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
|
OA172AP-11-2TBFAN AXIAL 172X51MM 115VAC TERM |
3,914 |
|
规格书 |
OA172AP | Box | Active | 115VAC | Round - 172mm Dia | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 20.00W | 2400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | 2.7 lbs (1.2 kg) |
|
OA172SAN-11-1TBFAN AXIAL 172X50.8MM 115VAC TERM |
4,280 |
|
规格书 |
OA172SAN | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 52.0dB | 35.00W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus | - |
|
OA172SAP-11-1WBFAN AXIAL 172X50.8MM 115VAC WIRE |
3,619 |
|
规格书 |
OA172SAP | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor | 52.0dB | 35.00W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 2.6 lbs (1.2 kg) |
