购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
109S093FAN 92X25MM 115VAC |
1,456 |
|
规格书 |
San Ace 92 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | - | 38.0dB(A) | 7.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.639 lb (289.85 g) |
|
OA172AP-22-2TBFAN AXIAL 172X51MM 230VAC TERM |
4,933 |
|
规格书 |
OA172AP | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | - | 42.0dB | 20.00W | 2400 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | 2.7 lbs (1.2 kg) |
|
|
OA172AP-22-1WBFAN AXIAL 172X51MM 230VAC WIRE |
2,062 |
|
规格书 |
OA172AP | Box | Active | 230VAC | Round - 172mm Dia | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | - | 52.0dB | 35.00W | 3200 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | 2.7 lbs (1.2 kg) |
|

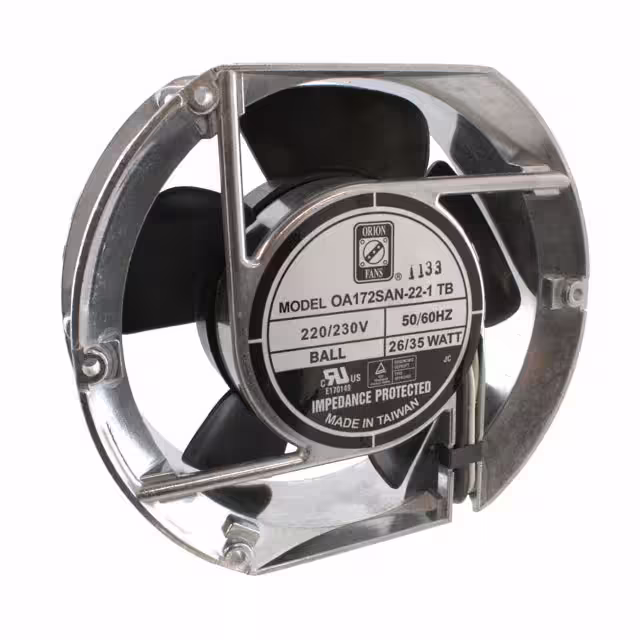

OA172SAN-22-1TBFAN AXIAL 172X50.8MM 230VAC TERM |
3,637 |
|
规格书 |
OA172SAN | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 52.0dB | 35.00W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | cURus | - |
|
UF12AM23-BTHR-B1FAN AXIAL 120X38MM 230VAC TACH |
3,580 |
|
规格书 |
UF12AM | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 46.0dB(A) | 13.00W | 3100 RPM | 2 Terminals and 3 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
UF15KM23-BTHR-FFAN 172X150X55MM 230V HIGH TEMP |
1,204 |
|
规格书 |
UF15KM | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB(A) | 42.00W | 3250 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 2.4 lbs (1.1 kg) |
|
3556FAN AXIAL 92X38MM 230VAC WIRE |
3,477 |
|
规格书 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 38.00mm | 39.4 CFM (1.10m³/min) | - | Ball | Tubeaxial | - | 33.0dB(A) | 9.00W | 2400 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
LPH15P99-BWHR-B1EC FAN AXIAL 172 X 150 X 51MM W/ |
3,145 |
|
规格书 |
LPH15P99 | Bulk | Active | 100 ~ 240VAC | Rectangular/Rounded - 172mm L x 152mm H | 51.50mm | 228.0 CFM (6.38m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 55.0dB(A) | 22.50W | 3200 RPM | 3 Wire Leads | - | - | - | 1.6 lbs (725.7 g) |
B.jpg)
|
OA172EC-UR-1TBEC FAN 172X152X51.6MM 90-265VAC |
3,989 |
|
规格书 |
OA172EC | Box | Active | 110/220VAC | Rectangular/Rounded - 172mm L x 152mm H | 51.60mm | 220.0 CFM (6.16m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC) | 55.0dB | 12.50W | 3000 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UR | 1.5 lbs (680.4 g) |
|
109S074ULFAN 120X38MM 115VAC |
126 |
|
规格书 |
San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 16.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
|
|
OA109AP-11-1TBSFFAN AXIAL 120X38MM 115VAC TERM |
4,528 |
|
规格书 |
OA109 | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.50mm | 106.0 CFM (2.97m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Salt Fog Rated | 46.0dB | 12.00W | 3100 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | cURus | 1.1 lbs (499.0 g) |
|
19028331AFAN AXIAL 80X38MM 220VAC SU3B1 |
149 |
|
规格书 |
Sprite AC | Box | Active | 220VAC | Square - 80mm L x 80mm H | 38.00mm | 31.0 CFM (0.868m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | - | 32.0dB(A) | 12.00W | 2800 RPM | 2 Wire Leads | IP44 | -40 ~ 176°F (-40 ~ 80°C) | CE, cUL, UL | 0.551 lb (249.93 g) |
B.jpg)
|
OA109EC-UR-1TBFAN EC 120X38MM 90-265VAC |
4,466 |
|
规格书 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 43.0dB | 4.90W, 5.20W | 3200 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, UR | 0.64 lb (290.3 g) |
|
CF4113LBL-000U-AEDFAN AXIAL 120X38MM 100/240VAC |
105 |
|
规格书 |
CF | Bulk | Active | 100/240VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
9AD0901H12FAN 92X38MM 90/264VAC |
1,146 |
|
规格书 |
San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | - | 40.0dB(A) | 4.50W | 3850 RPM | 2 Terminals | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.551 lb (249.93 g) |
|
UF15KC12-BTHNRFAN AXIAL 172X150X55MM 115VA IP5 |
101 |
|
规格书 |
UF15KC | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
UF15KC23-BWHNRFAN AXIAL 172X55MM 230VAC WIRE |
3,182 |
|
规格书 |
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
OA172SAP111TBXFFAN AC OA172SAP111TBXC W/F CLA |
3,307 |
|
规格书 |
OA172SA | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | - | 52.1dB(A) | 35.00W | 3150 RPM | 2 Terminals | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
109-044ULFAN 80X42MM 230VAC |
3,444 |
|
规格书 |
San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 42.00mm | 35.3 CFM (0.988m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 9.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.904 lb (410.05 g) |
|
OA162AP-11-1WB1855FAN AXIAL 172X55MM 115VAC WIRE |
1,715 |
|
规格书 |
OA162 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 210.0 CFM (5.88m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 54.0dB | 42.00W | 3200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | cURus | 2.7 lbs (1.2 kg) |
