| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OA109AP-22-1WBFAN AXIAL 120X38MM 230VAC WIRE |
593 |
|
规格书 |
OA109 | Box | Active | 230VAC | Square - 120mm L x 120mm H | 38.50mm | 110.0 CFM (3.08m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 42.0dB | 15.00W | 3000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | 1.2 lbs (544.3 g) |
|
OA825AP-11-1WBFAN AXIAL 80X27MM 115VAC WIRE |
221 |
|
规格书 |
OA825 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 27.00mm | 25.0 CFM (0.700m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 28.0dB | 9.00W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.573 lb (259.91 g) |
|

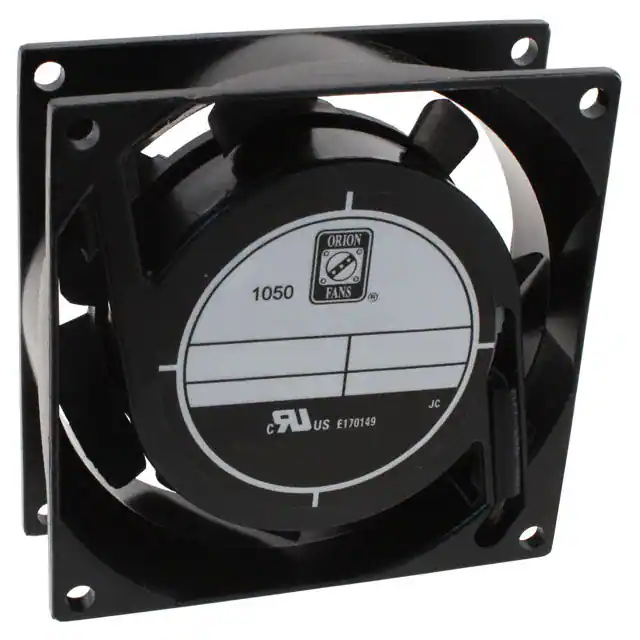

OA825AP-11-1TBFAN AXIAL 80X27MM 115VAC TERM |
163 |
|
规格书 |
OA825 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 27.00mm | 25.0 CFM (0.700m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | - | 28.0dB | 9.00W | 3000 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.573 lb (259.91 g) |
|

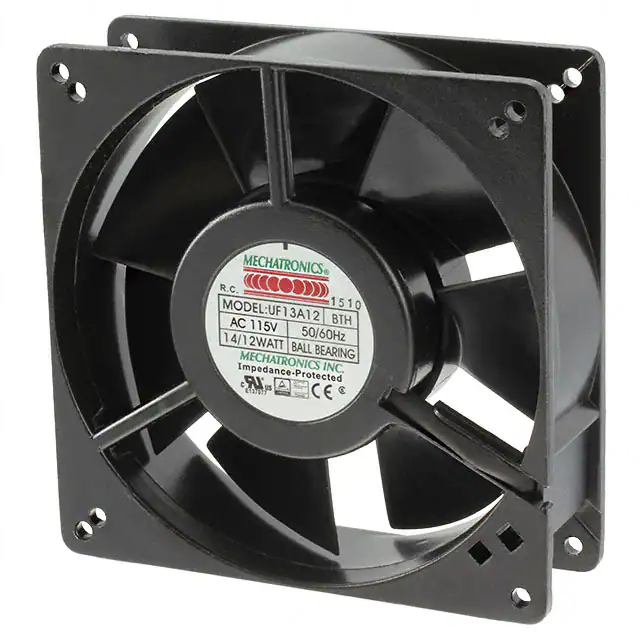

UF13A12-BTHRFAN AXIAL 127X38MM 115VAC |
381 |
|
规格书 |
UF13A | Bulk | Active | 115VAC | Square - 127mm L x 127mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 12.00W | 3000 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.2 lbs (544.3 g) |
|
SP100A-1123XBT.GNFAN AXIAL 120X38MM 115VAC TERM |
9,571 |
|
规格书 |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) |
|

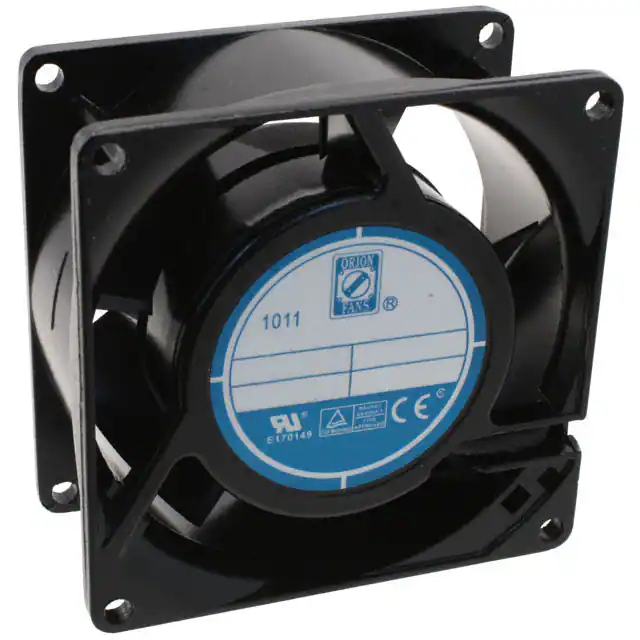

OA80AP-11-1TBFAN AXIAL 80X38MM 115VAC TERM |
582 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 36.0dB | 9.00W | 3000 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
OA80AP-22-1WBFAN AXIAL 80X38MM 230VAC WIRE |
387 |
|
规格书 |
OA80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 36.0dB | 12.00W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|
|
OA80AP-11-1WBFAN AXIAL 80X38MM 115VAC WIRE |
123 |
|
规格书 |
OA80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 36.0dB | 9.00W | 3000 RPM | 2 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
|

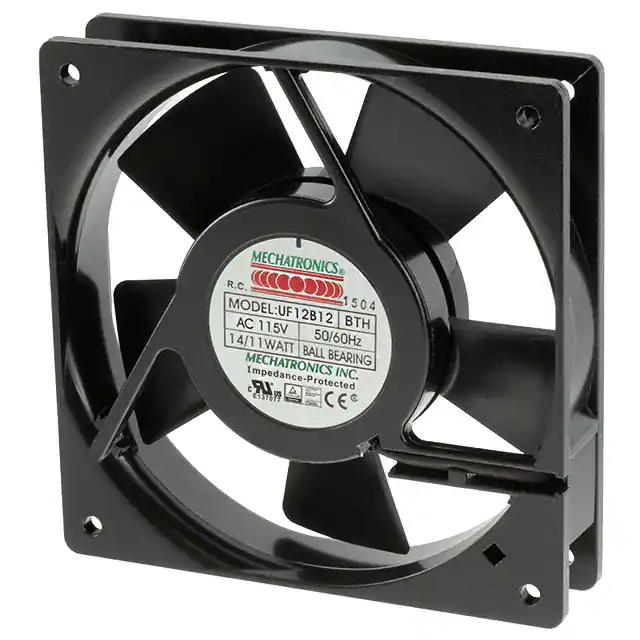

UF12B12-BTHRFAN AXIAL 120X25MM 115VAC |
1,088 |
|
规格书 |
UF12B | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 11.00W | 2900 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.725 lb (328.85 g) |
|
SF11580A-1083HSL.GNFAN AXIAL 80X38MM 115VAC WIRE |
765 |
|
规格书 |
SF | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 30.0 CFM (0.840m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | - | 35.0dB(A) | 12.00W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.75 lb (340.19 g) |
|
DP200A-2123XST.GNFAN AXIAL 120X38MM 220/240VAC |
759 |
|
规格书 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 21.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (550 g) |
|
SP101A-1123HST.GNFAN AXIAL 120X38MM 115VAC TERM |
1,781 |
|
规格书 |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 105.0 CFM (2.94m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Tubeaxial | - | 48.0dB(A) | 18.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
OA125AP-11/22-1WBFAN AXL 119.5X26.2MM 115/230VAC |
1,163 |
|
规格书 |
OA125 | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 25.00mm | 81.0 CFM (2.27m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Dual Voltage | 32.0dB | 13.00W | 2900 RPM | 4 Wire Leads | - | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
|
SP100A-1123XST.GNFAN AXIAL 120X38MM 115VAC TERM |
3,271 |
|
规格书 |
SP | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
OA938AP-11-1TBFAN AXIAL 92X38.5MM 115VAC TERM |
7,240 |
|
规格书 |
OA938 | Box | Active | 115VAC | Square - 92mm L x 92mm H | 38.50mm | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 32.0dB | 9.00W | 3100 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.992 lb (449.96 g) |
|
|
OA938AP-22-1TBFAN AXIAL 92X38.5MM 230VAC TERM |
355 |
|
规格书 |
OA938 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 38.50mm | 50.0 CFM (1.40m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 32.0dB | 9.00W | 3100 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 0.992 lb (449.96 g) |
|
|
DP201A-2123HST.GNFAN AXL 119.5X38.5MM 220/240VAC |
371 |
|
规格书 |
DP | Bulk | Active | 220 ~ 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.300 in H2O (74.7 Pa) | Sleeve | Tubeaxial | - | 48.0dB(A) | 19.00W | 2900 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.2 lbs (550 g) |
|
FAA1-12025QBMT31FAN AXIAL 120X25MM 230VAC TERM |
200 |
|
规格书 |
FAA1-12025 | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 25.00mm | 71.0 CFM (1.99m³/min) | 0.156 in H2O (38.8 Pa) | Ball | Tubeaxial | - | 44.1dB(A) | 20.70W | 2300 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.749 lb (339.74 g) |
|

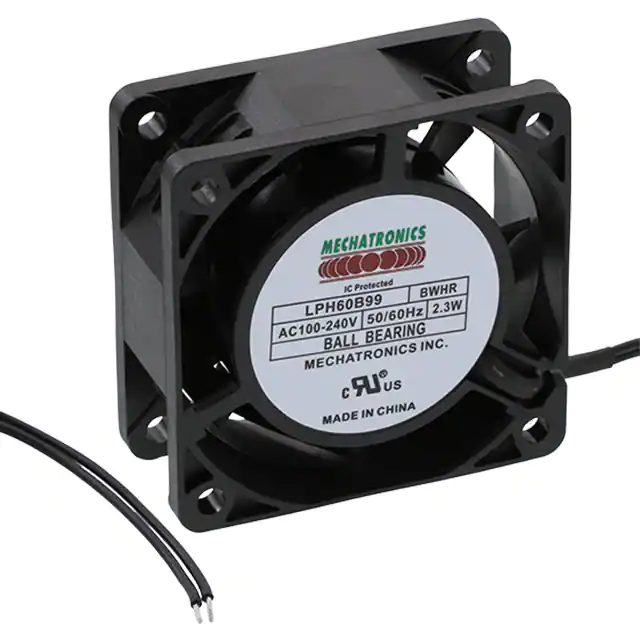

LPH60B99-BWHRFAN AXIAL 60X25.50MM 100-240VAC |
122 |
|
规格书 |
LPH60B99 | Bulk | Active | 100 ~ 240VAC | Square - 60mm L x 60mm H | 25.50mm | 17.0 CFM (0.476m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 35.0dB(A) | 2.30W | 4500 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.154 lb (69.85 g) |
|

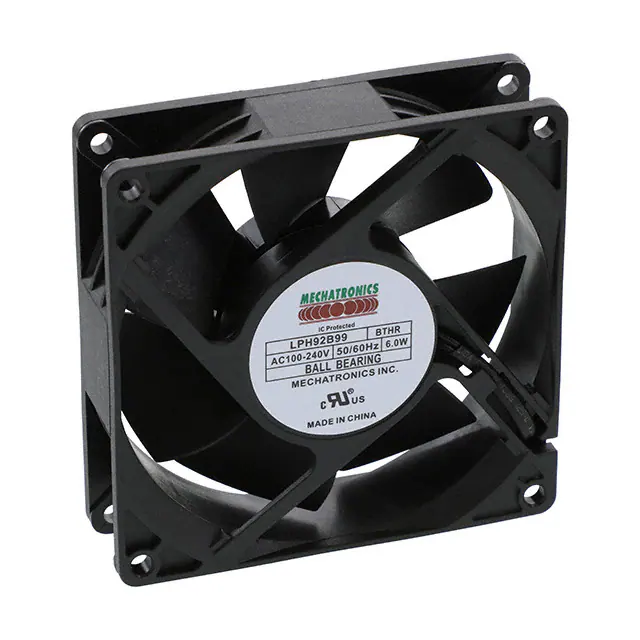

LPH92B99-BTHRFAN AXIAL 92X25.5MM 100-240VAC |
279 |
|
规格书 |
LPH92B99 | Bulk | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 25.50mm | 56.0 CFM (1.57m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 44.0dB(A) | 6.30W | 3500 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 0.234 lb (106.14 g) |
