| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R4E310-RA06-01FAN IMP MTRZD 325X154MM 230VAC |
2,837 |
|
规格书 |
RadiCal® R4E310RA | Bulk | Active | 230VAC | Round - 325mm Dia | 154.0mm | 620.9 CFM (17.39m³/min) | 0.738 in H2O (184.0 Pa) | Ball | Motorized Impellers | Capacitor, Thermal Overload Protection (TOP) | 61.0dB(A) | 185W | 1380 RPM | 4 Wire Leads | IP44 | -13 ~ 104°F (-25 ~ 40°C) | CE | - |
|
|
W3G250-CD54-01AXIAL AC FAN 230VAC |
1,589 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
W2E250-CB13-51FAN AXIAL 115VAC 250MM |
2,433 |
|
规格书 |
W2E250 | Bulk | Active | 115VAC | Round - 320mm Dia | 85.00mm | - | - | Ball | Tubeaxial | - | - | 180W | 2650 RPM | - | IP44 | - | CE, CSA, UL | 7.4 lbs (3.4 kg) |
|
|
W2E300-DA01-52FAN AXIAL 230VAC 300MM |
2,401 |
|
规格书 |
W2E300A | Bulk | Active | 230VAC | Square - 430mm L x 430mm H | 91.50mm | - | - | Ball | Tubeaxial | - | - | 205W | 2900 RPM | - | IP44 | -13 ~ 86°F (-25 ~ 30°C) | CSA, UL | 11 lbs (5 kg) |
|

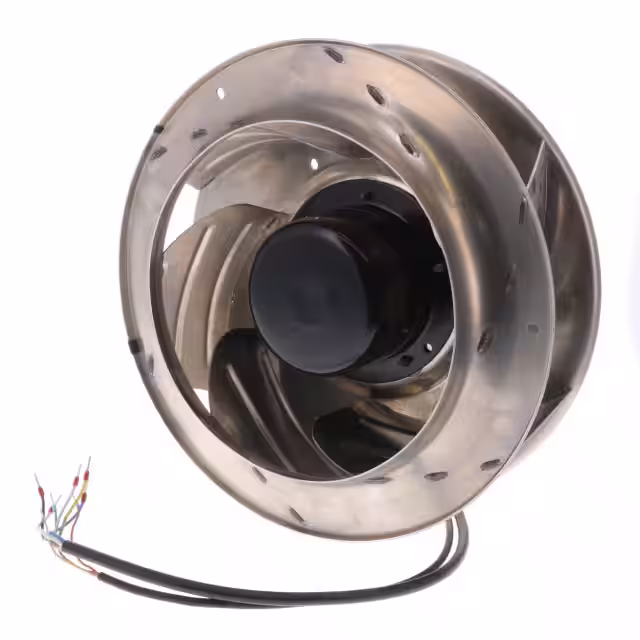

R3G310-AN43-71FAN IMPELLER 200-277VAC 310MM |
3,707 |
|
规格书 |
R3G310 | Bulk | Obsolete | 230VAC | Round - 318mm Dia | 167.2mm | - | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | - | 470W | 2435 RPM | 8 Wire Leads with Splice Terminals | IP54 - Dust Protected, Water Resistant | -13 ~ 113°F (-25 ~ 45°C) | CCC, CE, CSA, EAC, UL | 10.1 lbs (4.6 kg) |
|
|
LPC12A99-BTMRFAN AXIAL 120X38MM BALL TERM |
2,330 |
|
规格书 |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 100.0 CFM (2.80m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 47.0dB(A) | 8.00W | 3200 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | 0.816 lb (370.13 g) |
|
|
LPC12AM99-BTHRFAN AXIAL 120X38MM BALL TERM |
3,532 |
|
规格书 |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Electronic Commutation (EC) | 52.0dB(A) | 10.00W | 3600 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|
|
LPC12AM99-BTHR-B1FAN AXIAL 120X38MM BALL TERM |
1,670 |
|
规格书 |
LPC12A | Bulk | Obsolete | 90 ~ 264VAC | Square - 120mm L x 120mm H | 38.00mm | 120.0 CFM (3.36m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Electronic Commutation (EC), Speed Sensor (Tach) | 52.0dB(A) | 10.00W | 3600 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|
|
LPC15A99-BTHRFAN AXIAL 172X38MM BALL TERM |
4,755 |
|
规格书 |
LPC15A99 | Bulk | Obsolete | 90 ~ 264VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | - | - | Ball | Tubeaxial | Electronic Commutation (EC) | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | - | - |
|
|
UM12A12-BTHRFAN 120X38MM BALL 115VAC TERM |
1,767 |
|
规格书 |
UM12A | Bulk | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | - | - | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UM12A12-BWHRFAN 120X38MM BALL 115VAC WIRE |
1,567 |
|
规格书 |
UM12A | Bulk | Obsolete | 115VAC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | - | - | - | - | - | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UM12A23-BTHRFAN 120X38MM BALL 230VAC TERM |
1,535 |
|
规格书 |
UM12A | Bulk | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | - | - | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UM12A23-STHRFAN 120X38MM SLEEVE 230VAC TERM |
1,977 |
|
规格书 |
UM12A | Bulk | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | - | - | Sleeve | - | - | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UM15ACM12-BTHRFAN 172X38MM BALL 115VAC TERM |
4,279 |
|
规格书 |
UM15AC | Bulk | Obsolete | 115VAC | Rectangular - 172mm L x 150mm H | 38.00mm | - | - | Ball | - | Permanent Split Capacitor Motor | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE | - |
|
|
UM25GC12-BTHRFAN 254X89MM BALL 115VAC TERM |
2,465 |
|
规格书 |
UM25GC | Bulk | Obsolete | 115VAC | Round - 254mm Dia | 89.00mm | - | - | Ball | - | Permanent Split Capacitor Motor | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UM25GC23-BTHRFAN 254X89MM BALL 230VAC TERM |
2,488 |
|
规格书 |
UM25GC | Bulk | Obsolete | 230VAC | Round - 254mm Dia | 89.00mm | - | - | Ball | - | Permanent Split Capacitor Motor | - | - | - | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | - |
|
|
UF15KCR12/23-BWHFAN AXIAL 172X55MM 115/230VAC |
4,047 |
|
规格书 |
UF15KCR | Bulk | Discontinued at Digi-Key | 115/230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 241.0 CFM (6.75m³/min) | 0.730 in H2O (181.8 Pa) | Ball | Tubeaxial | Dual Voltage, Reverse Airflow, Thermal Overload Protector (TOP) | 66.0dB(A) | 30.00W, 31.00W | 3400 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
|
UF80B02-SWHFAN AXIAL 80X635MM 24VAC WIRE |
3,770 |
|
规格书 |
UF80B | Bulk | Discontinued at Digi-Key | 24VAC | Square - 80mm L x 80mm H | 25.00mm | - | - | Sleeve | Tubeaxial | - | - | - | - | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE | - |
|
UF12A12-STHR-M5FAN AXIAL 120X38MM 115VAC TERM |
1,711 |
|
规格书 |
UF12A | Bulk | Active | 115VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 46.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
|
|
UF12A23-STHR-M5FAN AXIAL 120X38MM 230VAC TERM |
4,244 |
|
规格书 |
UF12A | Bulk | Active | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | Tubeaxial | - | 46.0dB(A) | 15.00W | 3100 RPM | 2 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.168 lbs (530 g) |
