购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4710PS-24T-B20-A00FAN AXIAL 119X25.5MM 240VAC TERM |
4,696 |
|
规格书 |
PS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 25.50mm | 53.0 CFM (1.48m³/min) | 0.086 in H2O (21.5 Pa) | Ball | Tubeaxial | - | 30.0dB | 8.00W | 2100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
5915PC-10T-B10-B00FAN AXIAL 172X38MM 100VAC TERM |
3,530 |
|
规格书 |
PC | Bulk | Obsolete | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.7 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
4710PS-24T-B30-A00FAN AXIAL 119X25.5MM 240VAC TERM |
2,565 |
|
规格书 |
PS | Bulk | Obsolete | 240VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 38.0dB | 13.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
4715MS-20T-B50-BE0FAN AXIAL 119X38MM 200VAC TERM |
1,235 |
|
规格书 |
MS | Bulk | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | Tubeaxial | - | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4715TS-10T-B50-BM0FAN AXIAL 119X38MM 100VAC TERM |
1,478 |
|
规格书 |
TS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 1.4 lbs (635 g) |
|
|
5915PC-20T-B10-B00FAN AXIAL 172X38MM 200VAC TERM |
2,689 |
|
规格书 |
PC | Bulk | Obsolete | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 102.3 CFM (2.86m³/min) | 0.243 in H2O (60.7 Pa) | Ball | Tubeaxial | - | 38.0dB | 18.00W | 1650 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.8 lbs (816.5 g) |
|
|
4715TS-10T-B5A-B00FAN AXIAL 119X38MM 100VAC TERM |
4,011 |
|
规格书 |
TS | Bulk | Obsolete | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, UL, VDE | 1.3 lbs (589.7 g) |
|
|
4715TS-20T-B50-BM0FAN AXIAL 119X38MM 200VAC TERM |
2,988 |
|
规格书 |
TS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | CE, UL, VDE | 1.4 lbs (635 g) |
|
|
4715TS-20T-B5A-B00FAN AXIAL 119X38MM 200VAC TERM |
1,908 |
|
规格书 |
TS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 149°F (-10 ~ 65°C) | CE, UL, VDE | 1.3 lbs (589.7 g) |
|
|
5915PC-10T-B30-S00FAN AXIAL 172X38MM 100VAC TERM |
3,575 |
|
规格书 |
PC | Bulk | Obsolete | 100VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | Tubeaxial | - | 53.0dB | 40.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|
|
5915PC-20T-B30-S00FAN AXIAL 172X38MM 200VAC TERM |
3,154 |
|
规格书 |
PC | Bulk | Obsolete | 200VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | Tubeaxial | - | 53.0dB | 40.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|
|
4715MS-20T-B50-B00FAN AXIAL 119X38MM 200VAC TERM |
4,044 |
|
规格书 |
MS | Bulk | Obsolete | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | Tubeaxial | - | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
5915PC-22T-B30-S00FAN AXIAL 172X38MM 220VAC TERM |
1,758 |
|
规格书 |
PC | Bulk | Obsolete | 220VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 187.1 CFM (5.24m³/min) | 0.655 in H2O (163.2 Pa) | Ball | Tubeaxial | - | 53.0dB | 40.00W | 3150 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 2 lbs (907.2 g) |
|

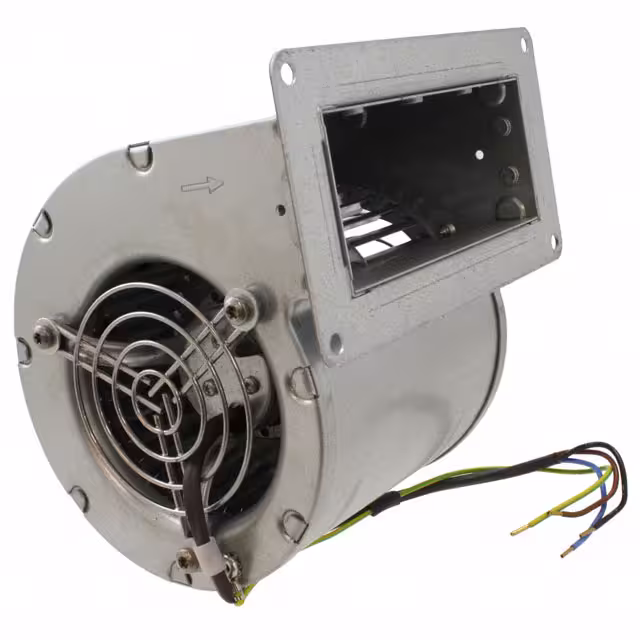

D2E097-CB01-48FAN BLWR CENT 144X140MM 230VAC |
3,661 |
|
规格书 |
D2E097 | Bulk | Obsolete | 230VAC | Rectangular - 144mm L x 137mm H (97mm Dia) | 140.0mm | 106.0 CFM (2.97m³/min) | - | Ball | Blower, Centrifugal | - | 47.0dB(A) | 42.00W | 1650 RPM | 4 Wire Leads | - | - | UL | 2.9 lbs (1.3 kg) |
|
|
4710PS-23T-B3A-A00FAN AXIAL 119X25.5MM 230VAC TERM |
4,030 |
|
规格书 |
PS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 25.50mm | 70.6 CFM (1.98m³/min) | 0.160 in H2O (40.0 Pa) | Ball | Tubeaxial | - | 38.0dB | 11.00W | 2700 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.8 lb (362.87 g) |
|
|
4715FS-23T-B5A-D00FAN AXIAL 119X38MM 230VAC TERM |
4,167 |
|
规格书 |
FS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 45.0dB | 14.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
|
4715FS-23W-B50-D00FAN AXIAL 119X38MM 230VAC WIRE |
3,747 |
|
规格书 |
FS | Box | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | - | 45.0dB | 14.00W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL | 1.2 lbs (544.3 g) |
|
|
4715MS-12T-B3A-A00FAN AXIAL 119X38MM 115VAC TERM |
1,233 |
|
规格书 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 88.2 CFM (2.47m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | - | 37.0dB | 10.00W | 2600 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4715MS-12T-B4A-A00FAN AXIAL 119X38MM 115VAC TERM |
1,924 |
|
规格书 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 95.0 CFM (2.66m³/min) | 0.259 in H2O (64.6 Pa) | Ball | Tubeaxial | - | 39.0dB | 13.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
|
|
4715MS-12T-B5A-A00FAN AXIAL 119X38MM 115VAC TERM |
4,922 |
|
规格书 |
MS | Box | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.0 CFM (2.86m³/min) | 0.306 in H2O (76.4 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.50W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, TUV, UL, VDE | 1.2 lbs (544.3 g) |
