购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QR06A-2/106350FAN BLOWER CF 420X158MM 230VAC |
3,270 |
|
规格书 |
QR06 | - | Obsolete | 230VAC | Rectangular - 575mm L x 88mm H (88mm Dia) | 158.0mm | 190.0 CFM (5.32m³/min) | - | Ball | Blower, Cross Flow | - | 55.0dB(A) | 41.00W | - | Terminal Block | - | - | - | 6 lbs (2.7 kg) |
|
|
QR06A-2/106351FAN BLOWER CF 380X158MM 115VAC |
1,630 |
|
规格书 |
QR06 | - | Obsolete | 115VAC | Rectangular - 535mm L x 88mm H (88mm Dia) | 158.0mm | 190.0 CFM (5.32m³/min) | - | Ball | Blower, Cross Flow | - | 55.0dB(A) | 38.00W | - | Terminal Block | - | - | - | 6 lbs (2.7 kg) |
|
|
R2E133-BB66-13FAN IMP MTRZD 133X60MM 230VAC |
1,338 |
|
规格书 |
R2E133 | - | Obsolete | 230VAC | Round - 133mm Dia | 60.00mm | 185.0 CFM (5.18m³/min) | - | Ball | Motorized Impellers | - | 67.0dB(A) | 27.00W | - | 2 Wire Leads | - | - | - | 1.3 lbs (589.7 g) |
|
|
R2E190-AE26-29FAN IMP MTRZD 190X63MM 230VAC |
4,803 |
|
规格书 |
R2E190 | - | Obsolete | 230VAC | Round - 190mm Dia | 63.00mm | 365.0 CFM (10.22m³/min) | - | Ball | Motorized Impellers | - | 62.0dB(A) | 90.0W | - | 2 Terminals | - | - | - | 3 lbs (1.4 kg) |
|
|
R2E190-AE50-29FAN IMP MTRZD 190X63MM 115VAC |
2,999 |
|
规格书 |
R2E190 | - | Obsolete | 115VAC | Round - 190mm Dia | 63.00mm | 365.0 CFM (10.22m³/min) | - | Ball | Motorized Impellers | - | 62.0dB(A) | 85.0W | - | 2 Terminals | - | - | - | 3 lbs (1.4 kg) |
|
|
R2S133-AB25-22FAN IMP MTRZD 133X60MM 115VAC |
3,587 |
|
规格书 |
R2E133 | - | Obsolete | 115VAC | Round - 133mm Dia | 60.00mm | 170.0 CFM (4.76m³/min) | - | Ball | Motorized Impellers | - | 60.0dB(A) | 40.00W | - | 2 Wire Leads | - | - | - | 2 lbs (907.2 g) |
|
|
R4E225-AC15-18FAN IMP MTRZD 225X63MM 115VAC |
3,941 |
|
规格书 |
R4E225 | Bulk | Obsolete | 115VAC | Round - 225mm Dia | 63.00mm | 410.0 CFM (11.48m³/min) | - | Ball | Motorized Impellers | - | 54.0dB(A) | 63.0W | - | 2 Wire Leads | - | - | - | 4 lbs (1.8 kg) |
|
|
R4E225-AR01-05FAN IMP MTRZD 225X89MM 230VAC |
3,941 |
|
规格书 |
R4E225 | - | Obsolete | 230VAC | Round - 225mm Dia | 89.00mm | 440.0 CFM (12.32m³/min) | - | Ball | Motorized Impellers | - | 59.0dB(A) | 41.00W | - | 2 Wire Leads | - | - | - | 4.2 lbs (1.9 kg) |
|
|
R4E225-AR15-09FAN IMP MTRZD 225X89MM 115VAC |
2,885 |
|
规格书 |
R4E225 | - | Obsolete | 115VAC | Round - 225mm Dia | 89.00mm | 468.0 CFM (13.10m³/min) | - | Ball | Motorized Impellers | - | 58.0dB(A) | 50.0W | - | 2 Wire Leads | - | - | - | 4.2 lbs (1.9 kg) |
|

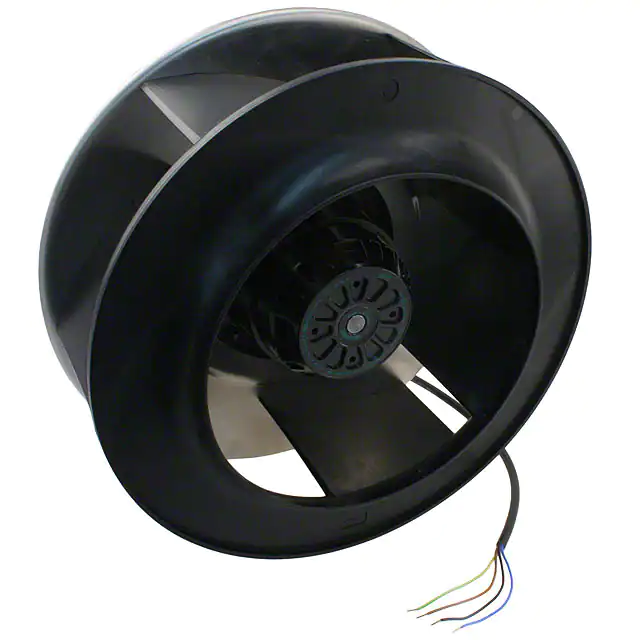

R4E310-AE13-16FAN IMP MTRZD 318X154MM 115VAC |
1,602 |
|
规格书 |
R4E310 | Box | Obsolete | 115VAC | Round - 318mm Dia | 154.0mm | 1265.0 CFM (35.42m³/min) | - | Ball | Motorized Impellers | Capacitor | 68.0dB(A) | 155W | - | 2 Wire Leads | - | - | CCC, CSA, UL | 8.0 lbs (3.6 kg) |
|
R4E355-AF05-09FAN IMP MTRZD 360X149MM 230VAC |
2,357 |
|
规格书 |
R4E355 | Bulk | Obsolete | 230VAC | Round - 360mm Dia | 149.0mm | 1612.0 CFM (45.14m³/min) | - | Ball | Motorized Impellers | - | 70.0dB(A) | 270W | 1630 RPM | 2 Wire Leads | - | - | - | 9.7 lbs (4.4 kg) |
|
|
R4E355-AF13-09FAN IMP MTRZD 360X149MM 115VAC |
1,978 |
|
规格书 |
R4E355 | Bulk | Obsolete | 115VAC | Round - 360mm Dia | 149.0mm | 1612.0 CFM (45.14m³/min) | - | Ball | Motorized Impellers | - | 70.0dB(A) | 270W | 1630 RPM | 2 Wire Leads | - | - | - | 9.7 lbs (4.4 kg) |
|
|
R4S190-AA16-18FAN IMP MTRZD 190X63MM 115VAC |
1,818 |
|
规格书 |
R4S190 | - | Obsolete | 115VAC | Round - 190mm Dia | 63.00mm | 230.0 CFM (6.44m³/min) | - | Ball | Motorized Impellers | - | 50.0dB(A) | 47.00W | - | 2 Wire Leads | - | - | - | 3 lbs (1.4 kg) |
|
|
R4S225-AA16-12FAN IMP MTRZD 225X88MM 115VAC |
2,157 |
|
规格书 |
R4S225 | - | Obsolete | 115VAC | Round - 225mm Dia | 88.00mm | - | - | Ball | Motorized Impellers | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
RD20S-4/110898FAN BLWR CENT 314X378MM 230VAC |
4,332 |
|
规格书 |
RD20S | - | Obsolete | 230VAC | Rectangular - 314mm L x 345mm H (200mm Dia) | 378.0mm | 1600.0 CFM (44.80m³/min) | - | Ball | Blower, Centrifugal | - | - | 730W | - | 2 Wire Leads | - | - | - | 33 lbs (15 kg) |
|
|
RD20S-4/204174AFAN BLWR CENT 314X292MM 115VAC |
2,189 |
|
规格书 |
RD20S | - | Obsolete | 115VAC | Rectangular - 314mm L x 345mm H (200mm Dia) | 292.0mm | 1050.0 CFM (29.40m³/min) | - | Ball | Blower, Centrifugal | - | - | 400W | - | 2 Wire Leads | - | - | - | 22 lbs (10 kg) |
|
|
RD20S-4/210327FAN BLWR CENT 314X378MM 115VAC |
4,951 |
|
规格书 |
RD20S | - | Obsolete | 115VAC | Rectangular - 314mm L x 345mm H (200mm Dia) | 378.0mm | 1600.0 CFM (44.80m³/min) | - | Ball | Blower, Centrifugal | - | - | 730W | - | 2 Wire Leads | - | - | - | 33 lbs (15 kg) |
|
|
RD20S-4/210660FAN BLWR CENT 314X292MM 115VAC |
1,188 |
|
规格书 |
RD20S | - | Obsolete | 115VAC | Rectangular - 314mm L x 345mm H (200mm Dia) | 292.0mm | 1275.0 CFM (35.70m³/min) | - | Ball | Blower, Centrifugal | - | - | 540W | - | 2 Wire Leads | - | - | - | 28 lbs (12.7 kg) |
|
|
RD25S-4/206198FAN BLWR CENT 404X378MM 115VAC |
2,089 |
|
规格书 |
RD25S | - | Obsolete | 115VAC | Rectangular - 404mm L x 448mm H (250mm Dia) | 378.0mm | 2800.0 CFM (78.40m³/min) | - | Ball | Blower, Centrifugal | - | - | 1800W | - | 2 Wire Leads | - | - | - | 44 lbs (20 kg) |
|
|
RD25S-4/209061FAN BLWR CENT 404X292MM 115VAC |
1,882 |
|
规格书 |
RD25S | - | Obsolete | 115VAC | Rectangular - 404mm L x 448mm H (250mm Dia) | 292.0mm | 2000.0 CFM (56.00m³/min) | - | Ball | Blower, Centrifugal | - | - | 1150W | - | 2 Wire Leads | - | - | - | 40 lbs (18.1 kg) |
