| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15KM12-BTHR-FFAN 172X150X55MM 115V HIGH TEMP |
3,331 |
|
规格书 |
UF15KM | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB(A) | 42.00W | 3250 RPM | 2 Terminals | - | -40 ~ 194°F (-40 ~ 90°C) | CE, cUL, TUV, UL | 2.4 lbs (1.1 kg) |
|
OA172SAPL-22-1TBIP55FAN AXIAL 172X38MM 230VAC TERM |
4,684 |
|
规格书 |
OA172SAPL | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 228.0 CFM (6.38m³/min) | 0.870 in H2O (216.7 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 58.0dB | 28.00W | 3400 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | 1.6 lbs (725.7 g) |
|
109S075ULFAN 120X38MM 100VAC |
4,040 |
|
规格书 |
San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 102.5 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 16.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 1.2 lbs (544.3 g) |
|

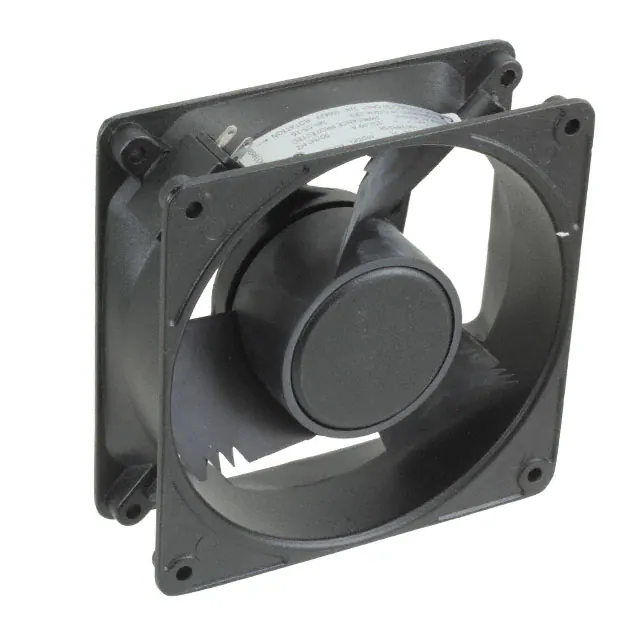

19028423AFAN AXIAL 119X39MM 230VAC MX3B3 |
3,086 |
|
规格书 |
Muffin XL AC | Box | Active | 230VAC | Square - 119mm L x 119mm H | 39.00mm | 105.0 CFM (2.94m³/min) | 0.223 in H2O (55.5 Pa) | Ball | Tubeaxial | - | 47.6dB(A) | 16.00W | 3100 RPM | 2 Terminals | - | - | CE, cUL, UL | 1.3 lbs (589.7 g) |
|
8556VFAN AXIAL 80X38MM 230VAC TERM |
4,616 |
|
规格书 |
8000V | Box | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 11.00W | - | 2 Terminals | - | - | CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
A1175-HBL.TC.GNFAN AXIAL 171X51MM 115VAC WIRE |
219 |
|
规格书 |
A | Bulk | Active | 115VAC | Rectangular/Rounded - 171.5mm L x 151mm H | 51.00mm | 239.0 CFM (6.69m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | - | 58.0dB(A) | 27.00W | 3200 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CUR, TUV, UL | 2 lbs (907.2 g) |
|

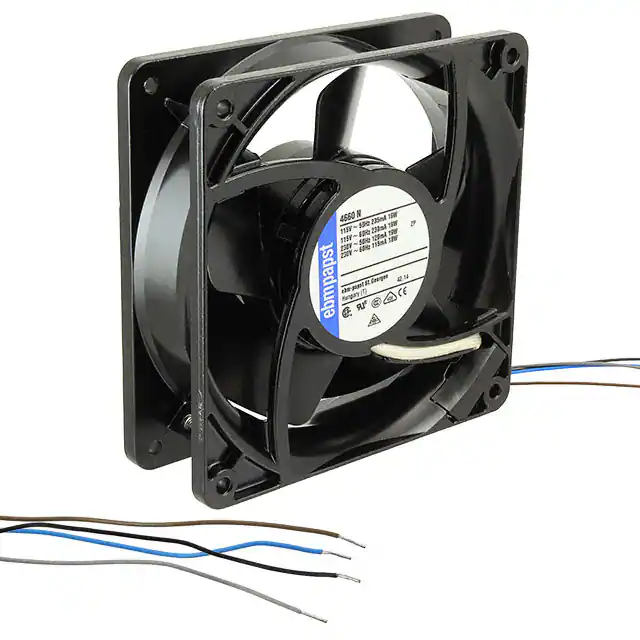

4660NAC TUBEAXIAL FAN |
2,080 |
|
规格书 |
- | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 100.1 CFM (2.80m³/min) | 0.363 in H2O (90.5 Pa) | Sleeve | Tubeaxial | - | 48.0dB(A) | 18.00W | 2950 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CCC, CE, CSA, UL, VDE | 1.2 lbs (544.3 g) |
|

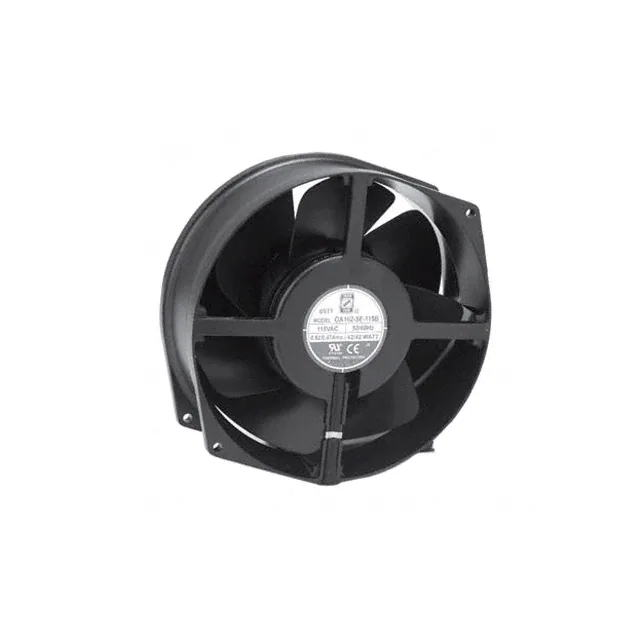

OA162-5E-230WBFAN AXIAL 172X55MM 230VAC WIRE |
186 |
|
规格书 |
OA162 | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB | 42.00W | 3250 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|
|
OA162-5E-115WBFAN AXIAL 172X55MM 115VAC WIRE |
3,022 |
|
规格书 |
OA162 | Box | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 230.0 CFM (6.44m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 53.0dB | 42.00W | 3250 RPM | 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cURus, TUV, UR | 2.4 lbs (1.1 kg) |
|

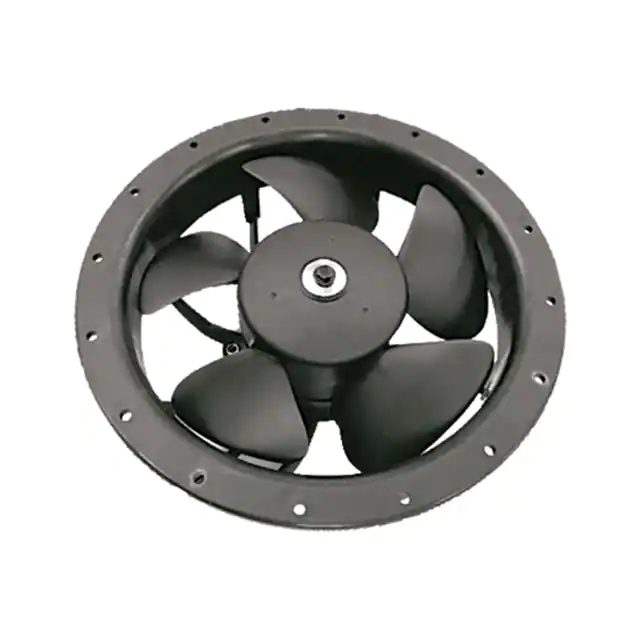

AFL22AUHW-P1222X222X78MM 115 / 230V AC FAN W |
3,677 |
|
规格书 |
AFL, EST | Box | Active | 115/230VAC | Round - 222mm Dia | 85.70mm | 323.9 CFM (9.07m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | 57.0dB(A) | 8.00W, 17.00W | 1800/2500 RPM | 3 Wire Leads | IP56 - Dust Protected, Water Resistant | -40 ~ 131°F (-40 ~ 55°C) | cURus | - |
|
3606FAN AXIAL 92X38MM 115VAC WIRE |
427 |
|
规格书 |
3000 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 52.4 CFM (1.47m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 11.00W | 3200 RPM | 2 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
|
3656FAN AXIAL 92X38MM 230VAC WIRE |
169 |
|
规格书 |
3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 38.00mm | 44.1 CFM (1.23m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 12.00W | 2700 RPM | 2 Wire Leads | - | -40 ~ 167°F (-40 ~ 75°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
OA109EC-UR-1TBIP68AFAN 120X38MM 90-265VAC IP68 ATEX |
1,512 |
|
规格书 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 43.0dB | 4.90W, 5.20W | 3200 RPM | 2 Terminals | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, UR | 0.64 lb (290.3 g) |
|
8550VWAC TUBEAXIAL FAN |
2,837 |
|
规格书 |
8000V | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 35.9 CFM (1.01m³/min) | - | Sleeve | Tubeaxial | - | 34.0dB(A) | 11.00W | 3200 RPM | 2 Wire Leads | IP20 | 14 ~ 167°F (-10 ~ 75°C) | CSA, UL, VDE | 0.106 lb (48.08 g) |
|
|
9AD1201H1HFAN 120X38MM 90/264VAC LSS |
1,295 |
|
规格书 |
San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 42.0dB(A) | 4.40W | 3250 RPM | 2 Position Rectangular Connector | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.639 lb (289.85 g) |
|

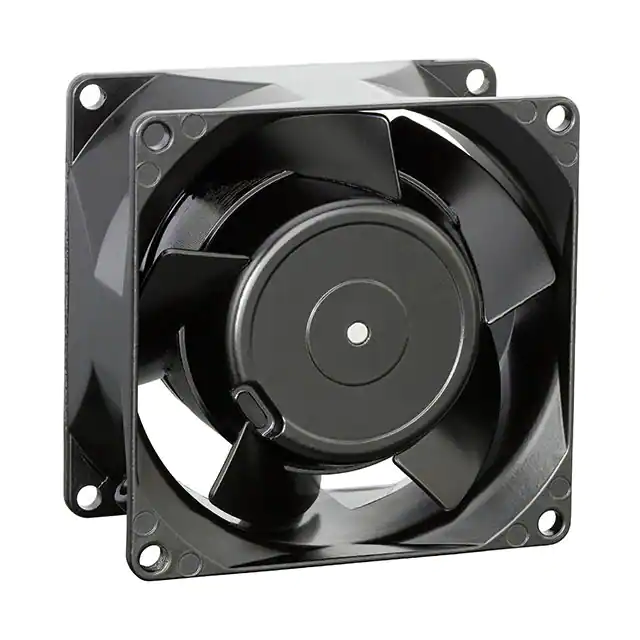

8556NFAN AXIAL 80X38MM 230VAC WIRE |
2,536 |
|
规格书 |
8000N | Bulk | Active | 230VAC | Square - 80mm L x 80mm H | 38.00mm | 29.4 CFM (0.823m³/min) | - | Ball | Tubeaxial | - | 31.0dB(A) | 12.00W | 2800 RPM | 2 Wire Leads | - | -40 ~ 194°F (-40 ~ 90°C) | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
8526VWR-686FAN AXIAL 80X38MM |
3,335 |
|
规格书 |
8526 | Bulk | Active | 24VAC | Square - 80mm L x 80mm H | 38.00mm | 27.7 CFM (0.776m³/min) | - | Ball | Tubeaxial | - | 31.0dB(A) | 12.00W | 2800 RPM | 2 Wire Leads | IP20 | -4 ~ 194°F (-20 ~ 90°C) | - | - |
|
8500VWFAN AXIAL 80X38MM 115VAC WIRE |
393 |
|
规格书 |
8000V | Bulk | Active | 115VAC | Square - 80mm L x 80mm H | 38.00mm | 36.0 CFM (1.01m³/min) | - | Sintec | Tubeaxial | - | 34.0dB(A) | 11.00W | - | 2 Wire Leads | - | - | CSA, UL, VDE | 1.1 lbs (499.0 g) |
|
|
OA109EC-UR-1WBIP68AFAN 120X38MM 90-265VAC IP68 ATEX |
935 |
|
规格书 |
OA109EC | Box | Active | 115/230VAC | Square - 120mm L x 120mm H | 38.00mm | 106.0 CFM (2.97m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP) | 43.0dB | 4.90W, 5.20W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | ATEX, CE, cURus, UR | 0.64 lb (290.3 g) |
|
15038PB-A1L-EP-S0FAN 150MM X 172MM X 38MM 115VAC |
128 |
|
规格书 |
15038PB | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 32.00W | 3200 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
