| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UF15PC23-BTHNSRFN 172X150X51MM 230V IP55 SLT FG |
3,528 |
|
规格书 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 58.0dB(A) | 31.00W | 3400 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
UF15PC23-BWHNSRFN 172X150X51MM 230V IP55 SLT FG |
2,348 |
|
规格书 |
UF15PC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 226.0 CFM (6.33m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP) | 58.0dB(A) | 31.00W | 3400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 1.8 lbs (816.5 g) |
|
|
15038PB-B3L-CP-U0FAN AXIAL 172X38MM 230VAC WIRE |
4,156 |
|
规格书 |
PB | Box | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.00mm | 212.0 CFM (5.94m³/min) | 0.865 in H2O (215.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 56.0dB | 35.00W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|
55442.75051FAN BLOWER CF 300X79MM 115VAC |
4,739 |
|
规格书 |
QLK45 | Bulk | Active | 115VAC | Rectangular - 391mm L x 71mm H (45mm Dia) | 79.00mm | 133.0 CFM (3.72m³/min) | 0.353 in H2O (88.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 40.00W | 2100 RPM | Terminal Block | - | 32 ~ 140°F (0 ~ 60°C) | - | 3.2 lbs (1.5 kg) |
|
OA172LFGS111TFAN AXIAL 209X101.3MM 115VAC |
2,225 |
|
规格书 |
OA172LFGS | Box | Active | 115VAC | Square - 209mm L x 209mm H | 101.3mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor, Kit | 52.0dB | 35.00W | 3200 RPM | 2 Terminals or 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
UF15KC23-BTHR-B2FAN AXIAL 172X55MM 230VAC TERM |
3,909 |
|
规格书 |
UF15KC | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 55.00mm | 293.0 CFM (8.20m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) | 60.0dB(A) | 38.00W | 3400 RPM | 3 Terminals | - | -40 ~ 158°F (-40 ~ 70°C) | CE, cUL, TUV, UL | 2.3 lbs (1 kg) |
|
OA172LFGH221TXCFAN AXIAL 207X112.3MM 230VAC |
3,871 |
|
规格书 |
OA172LFGH XC | Box | Active | 230VAC | Square - 207mm L x 207mm H | 112.3mm | 300.0 CFM (8.40m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Capacitor, Kit | 61.0dB | 50.0W | 3300 RPM | 2 Terminals or 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
1673302-1FAN,220VAC |
2,626 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

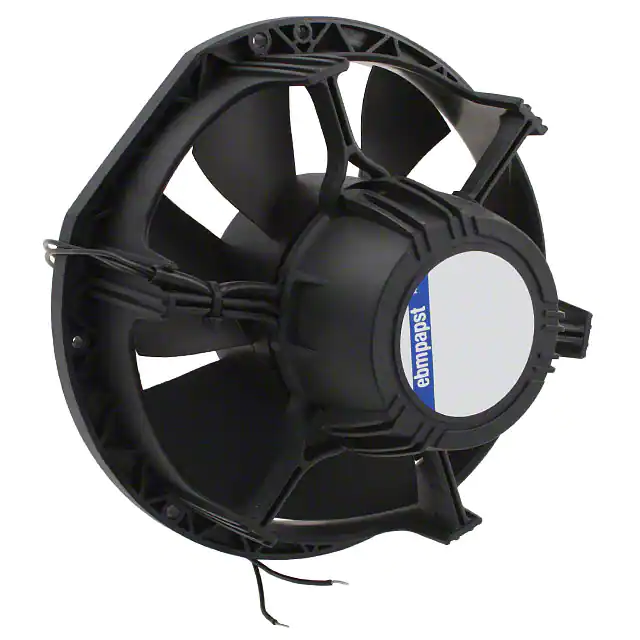

AC6100NMFAN AXIAL 165X51MM 85/265VAC |
4,521 |
|
规格书 |
Green Tech ACmaxx, AC6100N | Bulk | Obsolete | 115VAC | Rectangular/Rounded - 165mm L x 178mm H | 51.00mm | 206.0 CFM (5.77m³/min) | - | Ball | Tubeaxial | Electronic Commutation (EC), Locked Rotor Protection | 52.0dB(A) | 14.00W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CCC, CE, CSA, UL, VDE | 1.7 lbs (771.1 g) |
|
|
4586NUAC TUBEAXIAL FAN |
1,724 |
|
- |
- | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 33.0 CFM (0.924m³/min) | 0.614 in H2O (153.0 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 16.00W | 2700 RPM | 2 Wire Leads | - | -40 ~ 185°F (-40 ~ 85°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
CF4207HBL-1000U-A99EC Fans EC Axial Fan, 200x77mm |
2,059 |
|
- |
CF | Box | Active | 100 ~ 240VAC | Round - 250mm Dia | 77.40mm | 438.0 CFM (12.26m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | - | 53.4dB(A) | 17.50W | 2100 RPM | 2 Wire Leads | - | -40 ~ 122°F (-40 ~ 50°C) | CE, cUL, TUV, UKCA, UL | - |
|
|
11938MB-A0N-EP-00FAN AXIAL 119X38MM 100VAC TERM |
4,124 |
|
规格书 |
MS | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 14.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.2 lbs (544.3 g) |
|
|
11938MB-B0N-EP-00FAN AXIAL 119X38MM 200VAC TERM |
1,442 |
|
规格书 |
MS | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.2 lbs (544.3 g) |
|
|
11938MB-B4N-EP-00FAN AXIAL 119X38MM 240VAC TERM |
1,838 |
|
规格书 |
MS | Box | Active | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 13.00W | 2900 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.2 lbs (544.3 g) |
|
|
11938MB-B4N-AP-00FAN AXIAL 119X38MM 240VAC WIRE |
3,865 |
|
- |
11938MB | Bulk | Active | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 13.00W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
11938MB-B2N-EP-00FAN AXIAL 119X38MM 220VAC TERM |
4,810 |
|
- |
11938MB | Bulk | Active | 220VAC | Square - 119mm L x 119mm H | 38.00mm | 103.6 CFM (2.90m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 41.0dB | 13.00W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
OA172LFGS221TFAN AXIAL 209X101.3MM 230VAC |
4,037 |
|
规格书 |
OA172LFGS | Box | Active | 230VAC | Square - 209mm L x 209mm H | 101.3mm | 235.0 CFM (6.58m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Capacitor, Kit | 52.0dB | 35.00W | 3200 RPM | 2 Terminals or 2 Wire Leads | - | -40 ~ 158°F (-40 ~ 70°C) | cURus, TUV | - |
|
|
CF4207HBL-1000U-AA9EC Fans EC Axial Fan, 200x77mm |
3,457 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
11938TB-B4N-NP-00FAN 119MM X 38MM 240VAC TERMINAL |
1,854 |
|
规格书 |
11938TB | Bulk | Active | 240VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
|
|
11938TB-A0N-NP-00FAN 119MM X 38MM 100VAC TERMINAL |
1,899 |
|
规格书 |
11938TB | Bulk | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 116.5 CFM (3.26m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 50.0dB | 17.00W | 3100 RPM | 2 Terminals | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
