购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4530ZWFAN AXIAL 119X38MM 115VAC WIRE |
2,013 |
|
规格书 |
4000Z | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 70.5 CFM (1.97m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 12.00W | 2000 RPM | 2 Wire Leads | - | 14 ~ 167°F (-10 ~ 75°C) | - | 1.2 lbs (544.3 g) |
|
|
OA172SAP-22-3WB230VAC 172X150X51MM |
4,193 |
|
规格书 |
OA172SAP | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 33.2dB(A) | 16.00W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
OA172SAP-22-2WB230VAC 172X150X51MM |
1,928 |
|
规格书 |
OA172SAP | Bulk | Active | 230VAC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 170.0 CFM (4.76m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Capacitor, Thermal Overload Protector (TOP) | 39.8dB(A) | 20.00W | 2300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UR | - |
|
|
4580ZWFAN AXIAL 119X38MM 230VAC WIRE |
4,060 |
|
规格书 |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 67.7 CFM (1.90m³/min) | - | Sintec | Tubeaxial | - | 30.0dB(A) | 13.00W | 1900 RPM | 2 Wire Leads | - | 14 ~ 149°F (-10 ~ 65°C) | - | 1.2 lbs (544.3 g) |
_Series.jpg)
|
8800TVFAN AXIAL 76X37MM 115VAC WIRE |
1,518 |
|
规格书 |
8000TV | Bulk | Active | 115VAC | Round - 76mm Dia | 37.00mm | 21.2 CFM (0.594m³/min) | - | Sintec | Tubeaxial | - | 24.0dB(A) | 11.00W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|

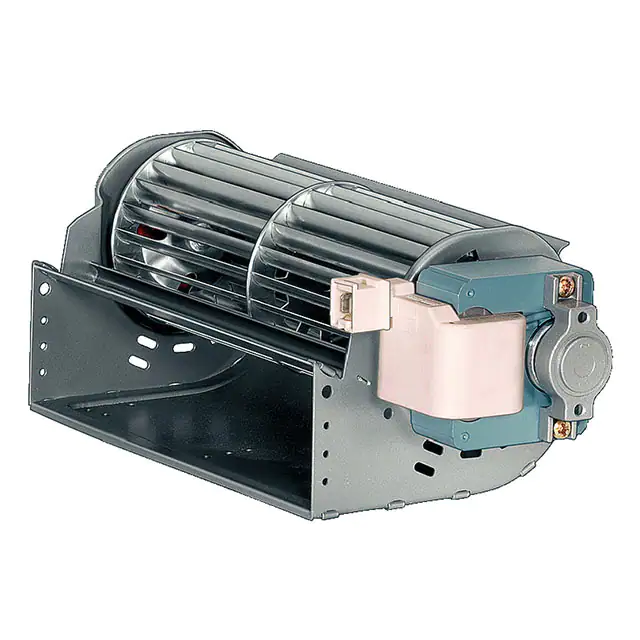

55410.91190FAN BLWR CF 180X96MM 115VAC TERM |
2,411 |
|
规格书 |
QLZ06 | Bulk | Active | 115VAC | Rectangular - 260mm L x 83mm H (60mm Dia) | 96.00mm | 72.0 CFM (2.02m³/min) | - | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 35.00W | - | 2 Terminals | - | - | - | - |
|
109S030FAN 80X25MM 100VAC |
2,500 |
|
规格书 |
San Ace 80 | Box | Active | 100VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 7.00W | 2700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.595 lb (269.89 g) |
|
|
109S033FAN 80X25MM 115VAC |
4,266 |
|
规格书 |
San Ace 80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 7.00W | 2700 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.595 lb (269.89 g) |
|
|
109S050FAN 80X25MM 100VAC |
4,833 |
|
规格书 |
San Ace 80 | Box | Active | 100VAC | Square - 80mm L x 80mm H | 25.00mm | 26.9 CFM (0.753m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 7.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.595 lb (269.89 g) |
|
|
109S053FAN 80X25MM 115VAC |
2,367 |
|
规格书 |
San Ace 80 | Box | Active | 115VAC | Square - 80mm L x 80mm H | 25.00mm | 26.9 CFM (0.753m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 7.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.595 lb (269.89 g) |
|
|
109S031FAN AXIAL 80X25MM 200VAC WIRE |
4,337 |
|
规格书 |
San Ace 80 | Box | Active | 200VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.114 in H2O (28.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 7.00W | 2700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.597 lb (270.79 g) |
|
3666FAN AXIAL 92X38MM 115/230VAC |
1,583 |
|
规格书 |
3000 | Bulk | Obsolete | 115/230VAC | Square - 92mm L x 92mm H | 38.00mm | 46.0 CFM (1.29m³/min) | - | Ball | Tubeaxial | Dual Voltage | 37.0dB(A) | 12.00W | 2700 RPM | 2 Wire Leads | - | - | - | 0.93 lb (421.84 g) |
|
|
55410.81390FAN BLWR CF 180X96MM 120VAC TERM |
1,907 |
|
规格书 |
QLZ06 | Bulk | Active | 120VAC | Rectangular - 260mm L x 83mm H (60mm Dia) | 96.00mm | 72.0 CFM (2.02m³/min) | - | Sleeve | Blower, Cross Flow | - | 49.0dB(A) | 35.00W | - | 2 Terminals | - | - | - | - |
|
|
OA162AP-11-2WB1855115VAC 172X55MM METAL |
3,785 |
|
规格书 |
OA162AP | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150.5mm H | 55.00mm | 189.0 CFM (5.29m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 43.2dB(A) | 20.00W | 2390 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -22 ~ 176°F (-30 ~ 80°C) | CE, cURus, UR | - |
|
|
9900AC TUBEAXIAL FAN |
4,207 |
|
- |
9900 | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 25.40mm | 79.5 CFM (2.23m³/min) | - | Ball | Tubeaxial | - | 42.0dB(A) | 12.00W | 2850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, CE, VDE, UL | - |
|
|
CF4113HBL-000U-ABDFAN AXIAL 120X38MM 100/240VAC |
4,677 |
|
规格书 |
CF | Bulk | Active | 100/240VAC | Square - 120mm L x 120mm H | 38.00mm | 109.0 CFM (3.05m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 44.9dB(A) | 5.10W | 3500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
CF4113LBL-000U-ABDFAN AXIAL 120X38MM 100/240VAC |
1,765 |
|
规格书 |
CF | Bulk | Active | 100/240VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
CF4113LBT-000U-ABDFAN AXIAL 120X38MM 100/240VAC |
1,796 |
|
- |
CF | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 64.3 CFM (1.80m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 31.4dB(A) | 1.80W | 2000 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
CF4113MBT-000U-ABDFAN AXIAL 120X38MM 100/240VAC |
2,687 |
|
- |
CF | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 90.1 CFM (2.52m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Dual Voltage, Electronic Commutation (EC) | 40.2dB(A) | 3.40W | 3000 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -13 ~ 158°F (-25 ~ 70°C) | ATEX, CE, CUR, TUV, UL | 0.699 lb (317.06 g) |
|
|
OA172SAPL-11-2TBIP55115VAC 150X172X38MM IP55 |
3,046 |
|
规格书 |
OA172SAPL | Bulk | Active | 115VAC | Rectangular/Rounded - 172mm L x 150mm H | 38.50mm | 162.0 CFM (4.54m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Capacitor, Thermal Overload Protector (TOP) | 50.0dB(A) | 27.00W | 2750 RPM | 2 Terminals | IP55 - Dust Protected, Water Resistant | -4 ~ 176°F (-20 ~ 80°C) | cURus, TUV | - |
