购物车交流风扇
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1123-HBT.(7).GNFAN AXIAL 119.5X38.5MM 115VAC |
2,306 |
|
规格书 |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 21.00W | 2750 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
MA1062-HVL.GNFAN AXIAL 60X25MM 115VAC WIRE |
3,108 |
|
规格书 |
MagLev® MA | Box | Obsolete | 115VAC | Square - 60mm L x 60mm H | 25.00mm | 18.0 CFM (0.504m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | Tubeaxial | - | 31.0dB(A) | 3.60W | 4200 RPM | 2 Wire Leads | - | - | CUR, TUV, UL | 0.18 lb (81.65 g) |
|
|
UF12A12/23-BWMR-CCFAN AXIAL 120X38MM 115/230VAC |
3,621 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A2123-HBL.(7).GNFAN AXL 119.5X38.5MM 220/240VAC |
3,780 |
|
规格书 |
A | Bulk | Active | 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 22.00W | 2750 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A2123-HBT.(7).GNFAN AXL 119.5X38.5MM 220/240VAC |
3,039 |
|
规格书 |
A | Bulk | Active | 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 22.00W | 2750 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A2123-HSL.(7).GNFAN AXL 119.5X38.5MM 220/240VAC |
2,856 |
|
规格书 |
A | Bulk | Active | 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Tubeaxial | - | 46.0dB(A) | 22.00W | 2750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A2123-HST.(7).GNFAN AXL 119.5X38.5MM 220/240VAC |
4,164 |
|
规格书 |
A | Bulk | Active | 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 123.9 CFM (3.47m³/min) | 0.280 in H2O (69.7 Pa) | Sleeve | Tubeaxial | - | 46.0dB(A) | 22.00W | 2750 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
SF1212AD-SL.GNThermal Products |
3,252 |
|
规格书 |
SF | Bulk | Active | 115/240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | Dual Voltage | 49.0dB(A) | 19.00W | 3100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cUR, UL | - |
|
19028171AFAN AXIAL 120X38MM 230VAC WR3A1 |
2,770 |
|
规格书 |
Whisper AC | - | Obsolete | 230VAC | Square - 120mm L x 120mm H | 38.00mm | 62.0 CFM (1.74m³/min) | - | Sleeve | Tubeaxial | - | - | 12.00W | 2000 RPM | 2 Terminals | - | - | - | 1.1 lbs (499.0 g) |
|
|
LPH12B99-BWHR-B1EC FAN 120X38MM 100-240VAC TACH |
3,095 |
|
规格书 |
LPH12B99 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.50mm | 79.0 CFM (2.21m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach) | 44.0dB(A) | 6.00W | 3000 RPM | 3 Wire Leads | - | - | - | 0.325 lb (147.42 g) |
|
LPH12A99-BWER5EC FAN AXIAL 120X120X38MM 100-24 |
2,164 |
|
规格书 |
LPH12A99-5 | Bulk | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.470 in H2O (117.1 Pa) | Ball | Tubeaxial | Auto Restart, Electronic Commutation (EC) | 47.0dB(A) | 15.00W | 3500 RPM | 2 Wire Leads | IP54 - Dust Protected, Water Resistant | - | - | 0.573 lb (260.00 g) |
|
|
A1123-HBL.GNFAN AXIAL 119.5X38.5MM 115VAC |
4,538 |
|
规格书 |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3100 RPM | 2 Wire Leads | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A2123-HBT.GNFAN AXL 119.5X38.5MM 220/240VAC |
3,195 |
|
规格书 |
A | Bulk | Active | 220 ~ 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 117.0 CFM (3.28m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | - | 50.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A1123-HSL.GNFAN AXIAL 119.5X38.5MM 115VAC |
1,364 |
|
规格书 |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
A1123-HST.GNFAN AXIAL 119.5X38.5MM 115VAC |
4,236 |
|
规格书 |
A | Bulk | Active | 115VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|

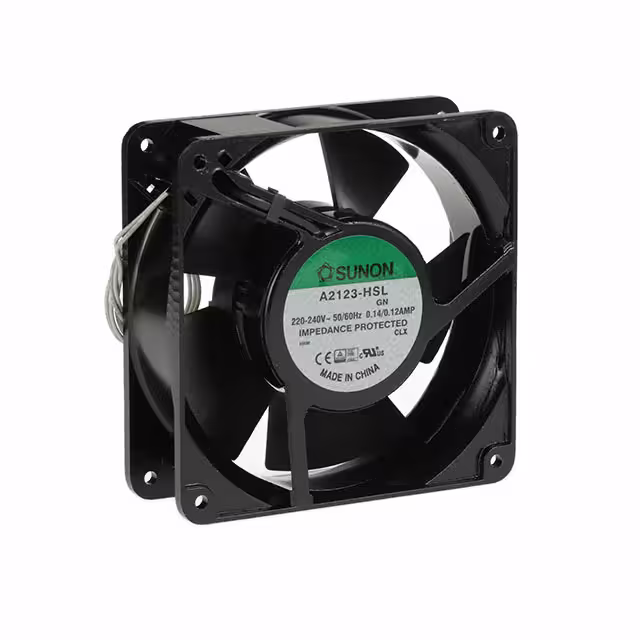

A2123-HSL.GNFAN AXL 119.5X38.5MM 220/240VAC |
4,086 |
|
规格书 |
A | Bulk | Active | 220 ~ 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
A2123-HST.GNFAN AXL 119.5X38.5MM 220/240VAC |
2,725 |
|
规格书 |
A | Bulk | Active | 240VAC | Square - 119.5mm L x 119.5mm H | 38.50mm | 115.0 CFM (3.22m³/min) | 0.380 in H2O (94.6 Pa) | Sleeve | Tubeaxial | - | 49.0dB(A) | 20.00W | 3100 RPM | 2 Terminals | - | - | CE, CUR, TUV, UL | 1.2 lbs (544.3 g) |
|
|
OA119AP-11-3WB115VAC 127X38MM |
4,365 |
|
规格书 |
OA119AP | Bulk | Active | 115VAC | Square - 127mm L x 127mm H | 38.50mm | 74.0 CFM (2.07m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.2dB(A) | 7.00W | 1400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | - |
|
|
OA119AP-22-3WB230VAC 127X38MM |
4,649 |
|
规格书 |
OA119AP | Bulk | Active | 230VAC | Square - 127mm L x 127mm H | 38.50mm | 74.0 CFM (2.07m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | - | 28.2dB(A) | 7.00W | 1400 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, cURus, TUV, UR | - |
|
|
4650AFAN AXIAL 119X38MM 230VAC WIRE |
1,154 |
|
规格书 |
4000 | - | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Sleeve | Tubeaxial | - | - | 18.00W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | - |
