购物车紧急停止（E-Stop）开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 复位操作 | 电路 | 开关功能 | 特性 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 面板开孔尺寸 | 端接样式 | 防护等级 | 工作温度 | 照明电压（额定值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SSA-EB1PL-12ECQ8SW ESTOP PULL/TWIST RESET 2A 24V |
4,170 |
|
规格书 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Illuminated (Red) | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLXR-02ECQ5ASW ESTOP PULL/TWIST RESET 2A 24V |
2,778 |
|
规格书 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | Illuminated (Red) | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
SSA-EB1PLGR-12ED1Q8SW ESTOP PULL/TWIST RESET 2A 24V |
4,917 |
|
规格书 |
SSA-EB | Box | Active | Chassis Mount | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | - | 2A (DC) | - | 24 V | - | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
XB4BS8445GEXSWITCH ESTOP TWIST RESET 6A 120V |
2,621 |
|
规格书 |
Harmony XB4 | Box | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 6A (AC), 550mA (DC) | 120 V | 125 V | Circular - 22.00mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -20°C ~ 65°C | - |
|
SSA-EB1PLXR-12ECQ8-WCSW ESTOP PULL/TWIST RESET 2A 24V |
3,730 |
|
规格书 |
SSA-EB | Box | Active | Panel Mount, Front | Pull or Twist | 3PST-2NC/1NO | On-Off, Off-On | Control Box Enclosure, Illuminated (Red), Washdown Cover | 2A (DC) | - | 24 V | Circular - 30.00mm Dia | Connector | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VDC |
|
ECBTTF002ASWITCH E-STOP 3A 120V |
3,854 |
|
规格书 |
EC | Tray | Active | Panel Mount, Front | - | SPST-NC | On-Off | - | 3A (AC), 220mA (DC) | 120 V | 125 V | Circular - 22.30mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -35°C ~ 70°C | - |
|
84-5320.0020SWITCH ESTOP TWIST RESET 5A 250V |
4,672 |
|
规格书 |
84 | Bag | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 65°C | - |
|
51-252.0268SW E-STOP TWIST RESET 100MA 42V |
1,289 |
|
规格书 |
51 | Bulk | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 100mA (AC/DC) | 42 V | 42 V | Circular - 16.00mm Dia | PC Pin, Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | - |
|
|
84-5340.0020SWITCH ESTOP TWIST RESET 5A 250V |
3,965 |
|
规格书 |
84 | Bag | Active | Panel Mount, Front | Twist | DPST-NC | On-Off | - | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 65°C | - |
|
84-5120.0040SWITCH ESTOP TWIST RESET 5A 250V |
4,974 |
|
规格书 |
84 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Cable Leads | IP65 - Dust Tight, Water Resistant | -25°C ~ 65°C | - |
|
|
84-5321.2B20SWITCH ESTOP TWIST RESET 5A 250V |
2,212 |
|
规格书 |
84 | Bag | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Illuminated (Red) | 5A (AC/DC) | 250 V | 250 V | Circular - 22.30mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 65°C | - |
|
1.15.213.001/0000SWITCH E-STOP TWIST RESET 5A 35V |
4,155 |
|
规格书 |
LUMOTAST 16 | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | Status Indicator | 5A (AC), 2A (DC) | 35 V | 35 V | Circular - 16.20mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
PBES16N60RSWITCH ESTOP TWIST RESET 3A 125V |
3,278 |
|
规格书 |
PBES16 | Tray | Active | Panel Mount, Front | Twist | SPST-NC x 2 | On-Off | Push Marking | 3A (AC), 220mA (DC) | 125 V | - | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C | - |
|
XA1E-BV302V-RSW ESTOP PULL/TWST RESET 3A 125V |
3,610 |
|
规格书 |
XA | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | - | 3A (AC), 2A (DC) | 125 V | 30 V | Circular - 16.20mm Dia | PC Pin | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|

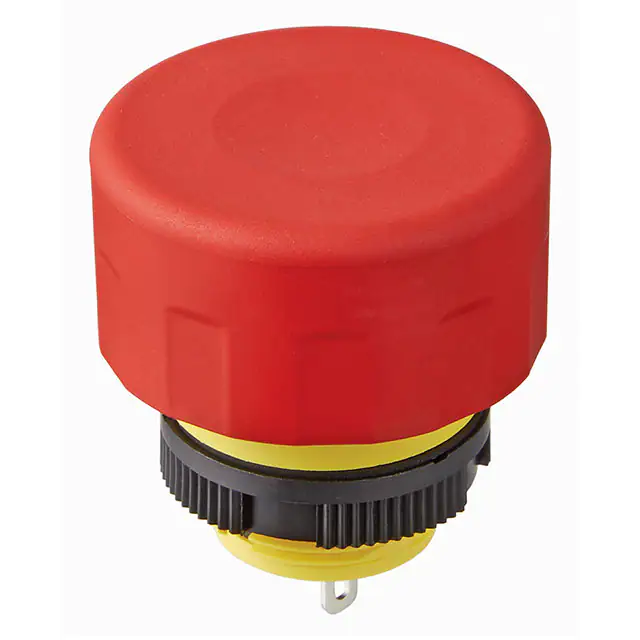

FF0116BBCEEA01SW E-STOP TWIST RESET 500MA 24V |
4,760 |
|
规格书 |
FF01 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Solder Lug | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
.jpg)
|
A165E-S-01(STOP)SWITCH ESTOP TWIST RESET 5A 125V |
3,522 |
|
规格书 |
A165E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 5A (AC), 3A (DC) | 125 V | 30 V | Circular - 16.00mm Dia | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Oil and Water Resistant | -10°C ~ 55°C | - |
|
XW1E-LV402Q4M-RSW ESTOP PULL/TWST RESET 5A 125V |
4,895 |
|
规格书 |
XW | Bulk | Active | Panel Mount, Front | Pull or Twist | DPST-NC | On-Off | Illuminated (Red) | 5A (AC), 2A (DC) | 125 V | 30 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Water Resistant | -25°C ~ 55°C | 24 VAC/DC |
|
FF0116BBCAEA01-WLSW E-STOP TWIST RESET 500MA 24V |
1,667 |
|
规格书 |
FF01 | Box | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 500mA (DC) | - | 24 V | Circular - 16.20mm Dia | Wire Leads | IP65 - Dust Tight, Water Resistant | -25°C ~ 60°C | - |
|
A22E-S-11SW E-STOP TWIST RESET 10A 110V |
3,614 |
|
规格书 |
A22E | Bulk | Active | Panel Mount, Front | Twist | DPST-NO/NC | On-Off, Off-On | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
|
A22E-L-01SW E-STOP TWIST RESET 10A 110V |
1,036 |
|
规格书 |
A22E | Bulk | Active | Panel Mount, Front | Twist | SPST-NC | On-Off | - | 10A (AC/DC) | 110 V | 24 V | Circular - 22.30mm Dia | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | -20°C ~ 70°C | - |
