购物车电动执行器/气缸
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPCC-BS-32-100-8P-AELECTRO-CYLINDER |
4,445 |
|
规格书 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 3.937" (100.00mm) | - | - | 19.69 in/s (500.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-32-150-8P-AELECTRO-CYLINDER |
2,200 |
|
规格书 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 5.906" (150.00mm) | - | - | 19.69 in/s (500.0 mm/s) | - | - | Ball Screw | ±20µm | 15.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
|
EPCC-BS-32-150-3P-AELECTRO-CYLINDER |
4,666 |
|
规格书 |
- | Bulk | Active | Linear Actuator (Without Motor) | - | 5.906" (150.00mm) | - | - | 7.40 in/s (188.0 mm/s) | - | - | Ball Screw | ±20µm | 5.00 m/s² | - | - | - | - | 0°C ~ 60°C | IP40 | - |
|
AER13.6X10X10DFPIEZO ACTUATOR, AER, RESIN, 9.1M |
3,730 |
|
规格书 |
AER | Box | Active | Linear Actuator | Piezoelectric | 0.0004" (9.10µm) | 494.58lbf (2200.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|

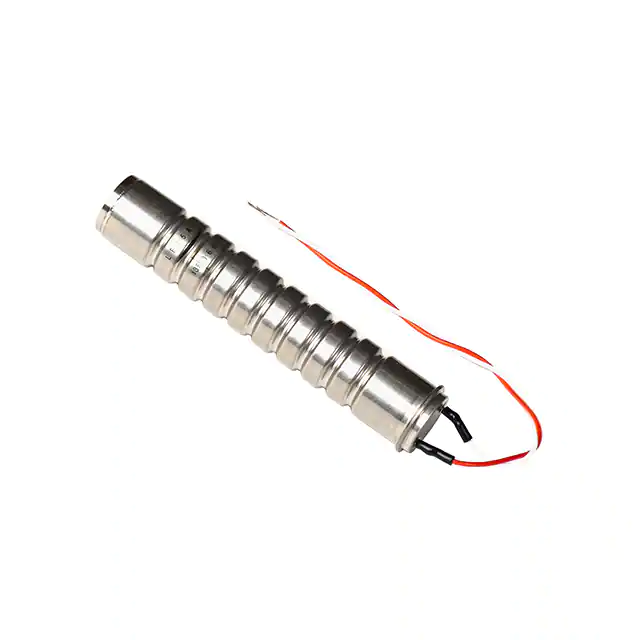

ASB170C801ND0LFSOLENOID PIEZO 17UM 150V |
3,654 |
|
规格书 |
ASB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0007" (17.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
|
AER13.6X10X13.5DFPIEZO ACTUATOR, AER, RESIN, 13.2 |
1,915 |
|
规格书 |
AER | Box | Active | Linear Actuator | Piezoelectric | 0.0005" (13.20µm) | 494.58lbf (2200.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
AE1414D16DFKEMET, AE, RESIN, 18.4UM, 7000N |
3,619 |
|
规格书 |
AE | Bulk | Active | Linear Actuator | Piezoelectric | 0.0007" (18.40µm) | 1573.66lbf (7000.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
EGSC-BS-KF-32-100-8PMINI SLIDE |
2,077 |
|
规格书 |
Mini slide | Bulk | Active | Linear Actuator (Without Motor) | - | 0.0039" (100.00µm) | 13.48lbf (60.0N) | - | - | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|

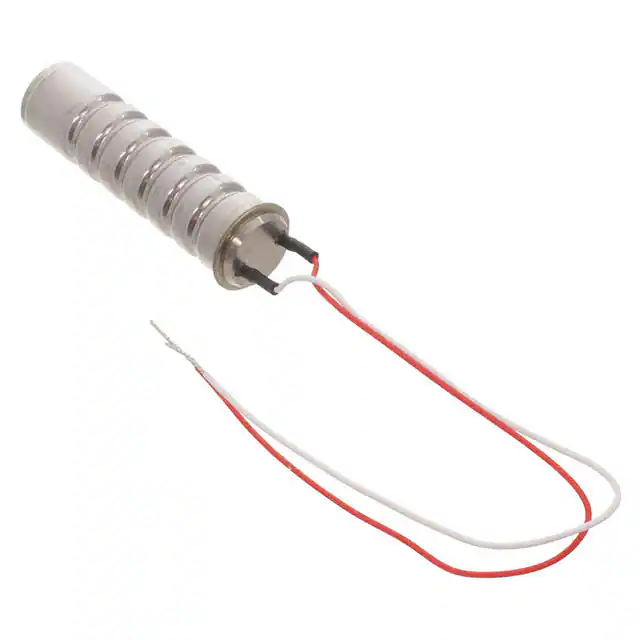

AHB550C801WD1-A0LFAHB, METAL SEALD, 55UM,800N, WIT |
2,427 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0022" (55.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
EGSC-BS-KF-45-150-10PMINI SLIDE |
4,903 |
|
规格书 |
Mini slide | Bulk | Active | Linear Actuator (Without Motor) | - | 5.906" (150.00mm) | 26.97lbf (120.0N) | - | - | 100% | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-32-100-8PSPINDLE AXIS |
3,225 |
|
规格书 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 3.937" (100.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
AHB700C801WD1-A0LFAHB, METAL SEALD, 70UM, 800N, WI |
4,544 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0028" (70.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
EPCS-BS-32-200-8P-A-ST-M-H1-PLK-AAELECTRIC CYLINDER UNIT |
4,237 |
|
规格书 |
- | Bulk | Active | Linear Actuator | Stepper | 7.874" (200.00mm) | 52.91lbf (235.4N) | 33.72lbf (150.0N) | 8.27 in/s (210.0 mm/s) | 100% | 24VDC | Ball Screw | ±20µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Wire Leads with Connector | 0°C ~ 50°C | IP40 | - |
|

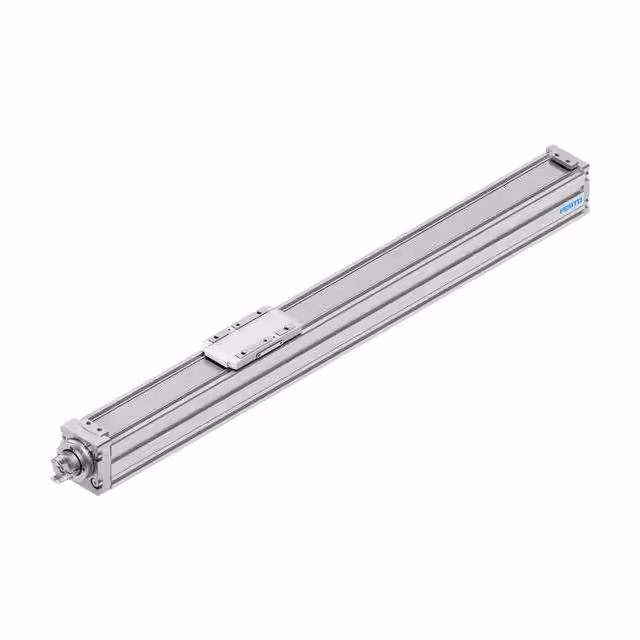

ELGC-BS-KF-32-300-8PSPINDLE AXIS |
2,787 |
|
规格书 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 11.811" (300.00mm) | - | - | 23.62 in/s (600.0 mm/s) | - | - | Ball Screw | ±15µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|
ELGC-BS-KF-60-200-12PSPINDLE AXIS |
1,473 |
|
规格书 |
- | Bulk | Active | Linear Axis (Without Motor) | - | 7.874" (200.00mm) | - | - | 31.50 in/s (800.0 mm/s) | - | - | Ball Screw | ±10µm | 15.00 m/s² | - | - | - | - | 0°C ~ 50°C | IP40 | - |
|

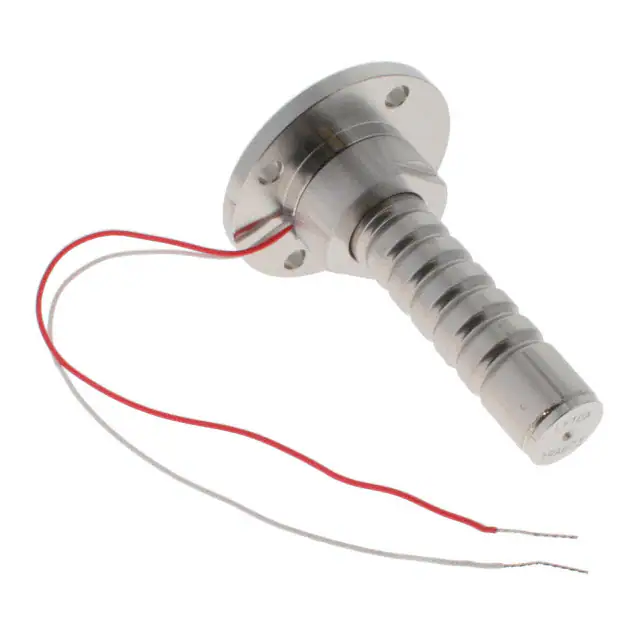

AHB550C801FD0LFAHB, METAL SEALD, 55UM, 800N, FL |
1,655 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0022" (55.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|

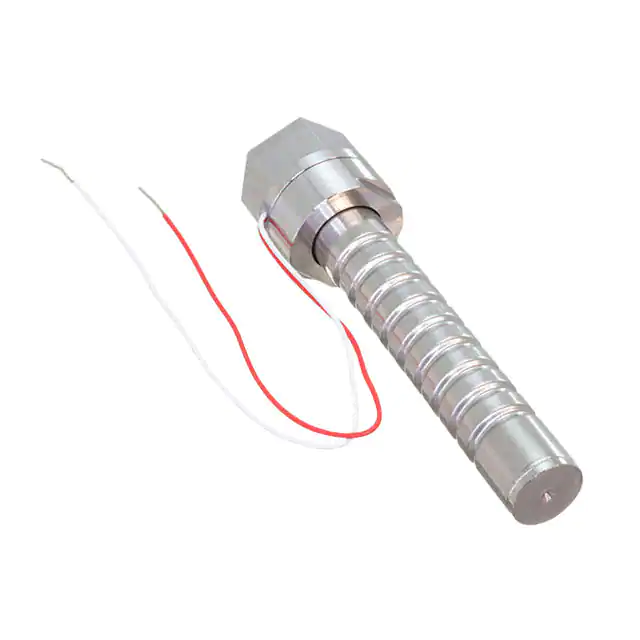

ASL510C801ND0LFASL, METAL SEALD, HIGH TEMPERATU |
2,855 |
|
规格书 |
ASL | Bulk | Active | Linear Actuator | Piezoelectric | 0.0023" (58.00µm) | 179.85lbf (800.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -40°C ~ 150°C | - | - |
|
|
AHB550C172WD1-A0LFAHB, METAL SEALD, 52UM, 1700N, W |
3,191 |
|
规格书 |
AHB | Bulk | Active | Linear Actuator | Piezoelectric | 0.0020" (52.00µm) | 382.18lbf (1700.0N) | - | - | - | 150VDC | - | - | - | - | - | - | Wire Leads | -25°C ~ 85°C | - | - |
|
EGSS-BS-KF-32-25-8P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
4,312 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 0.984" (25.00mm) | 13.48lbf (60.0N) | - | 7.48 in/s (190.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
|
EGSS-BS-KF-32-50-8P-ST-M-H1-PLK-AAMINI-SLIDE UNIT |
3,998 |
|
规格书 |
Electric slide drive | Bulk | Active | Linear Axis | Stepper | 1.969" (50.00mm) | 13.48lbf (60.0N) | - | 7.48 in/s (190.0 mm/s) | 100% | 24VDC | Ball Screw | ±15µm | 5.00 m/s² | Integrated Controller, Limit Switches | - | Absolute Encoder | Connector | 0°C ~ 50°C | IP40 | - |
