购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76PSB06TSWITCH PIANO DIP SPST 0.15A 30V |
363 |
|
规格书 |
76 | Tube | Active | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SMRR7116C-1SW ROTARY DIP HEX COMP 0.03A 15V |
276 |
|
规格书 |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.319" (8.10mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
90B10STSWITCH SLIDE DIP SPST 0.025A 24V |
672 |
|
规格书 |
90B | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76RSB12TSWITCH ROCKER DIP SPST 0.15A 30V |
4,892 |
|
规格书 |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6CV-10RSWITCH ROTARY DIP BCD 0.1A 30V |
1,038 |
|
规格书 |
A6C | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.358" (9.10mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
MRSSV0DG16THTSW ROTARY DIP GRY CODE 0.4VA 20V |
3,402 |
|
规格书 |
MRSS | Tube | Active | Gray Code | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

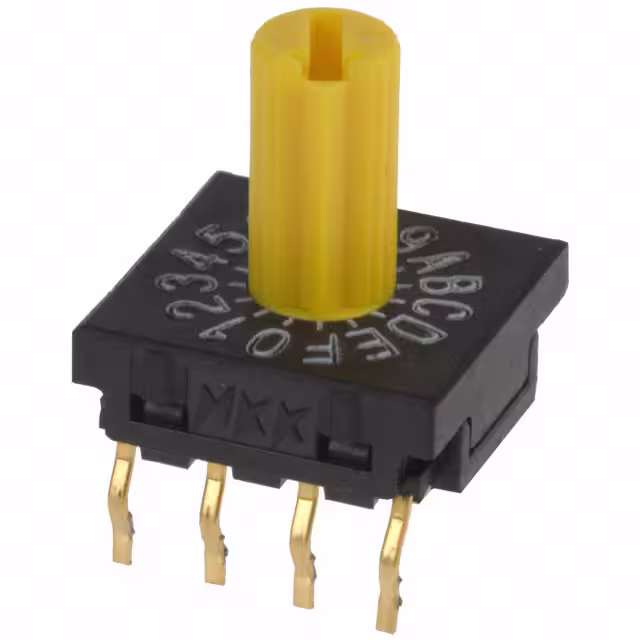

FR01KC16P-SSW ROTARY DIP HEX COMP 0.1A 5V |
215 |
|
规格书 |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

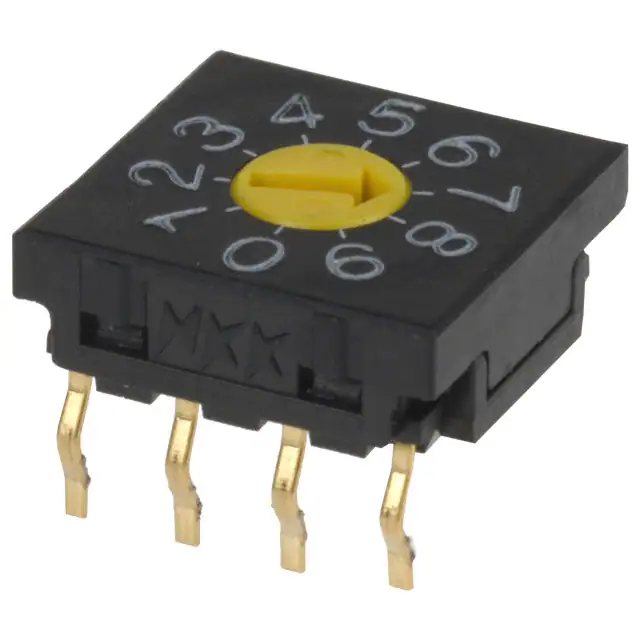

FR01FC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
183 |
|
规格书 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR16P-SSWITCH ROTARY DIP HEX 0.1A 5V |
127 |
|
规格书 |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
78H01STSWITCH SLIDE DIP 4PST 0.15A 30V |
468 |
|
规格书 |
78 | Tube | Active | 4PST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB07TSWITCH PIANO DIP SPST 0.15A 30V |
657 |
|
规格书 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
SD10H0SBSWITCH SLIDE DIP SPST 0.1A 25V |
402 |
|
规格书 |
SD | Tube | Active | SPST | 10 | 100mA | 25VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB06STSWITCH PIANO DIP SPST 0.15A 30V |
322 |
|
规格书 |
76 | Tube | Active | SPST | 6 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
5435166-5SW ROCKER DIP SPST 0.025A 24V |
5,104 |
|
规格书 |
7000 | Tube | Active | SPST | 8 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
A6RV-101RSSWITCH ROTARY DIP BCD 0.025A 24V |
102 |
|
规格书 |
A6RV | Tube | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
|
76PSB07STSWITCH PIANO DIP SPST 0.15A 30V |
4,022 |
|
规格书 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
FR01FR10P-W-SSWITCH ROTARY DIP BCD 0.1A 5V |
2,388 |
|
规格书 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.150" (3.81mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR02FC16P-RSW ROTARY DIP HEX COMP 0.1A 5V |
1,705 |
|
规格书 |
FR02 | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.154" (3.90mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR02KR10P-RSWITCH ROTARY DIP BCD 0.1A 5V |
371 |
|
规格书 |
FR02 | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.430" (10.92mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6RS-161RS-PSWITCH ROTARY DIP HEX 0.025A 24V |
295 |
|
规格书 |
A6RS | Tape & Reel (TR) | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.472" (12.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 80°C |
