购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

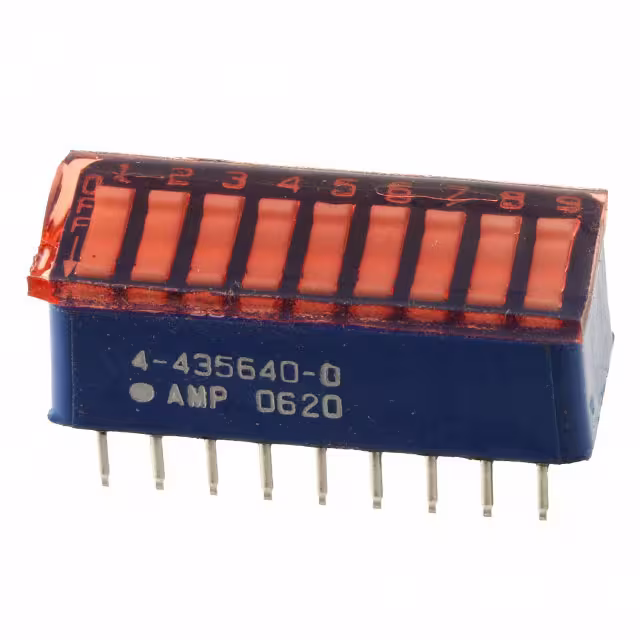

4-435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
1,406 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 9 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|

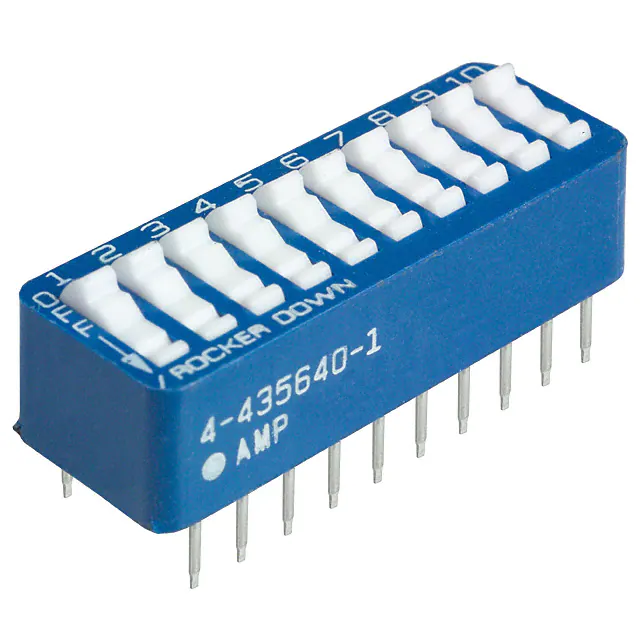

4-435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
4,181 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 10 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|

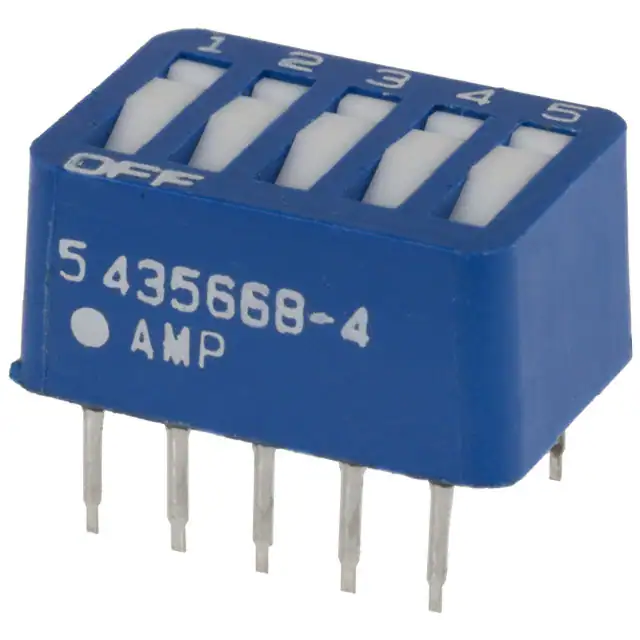

435668-4SWITCH ROCKER DIP SPST 0.06A 5V |
3,687 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
3-435668-5SWITCH ROCKER DIP SPST |
4,895 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 5 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
2-435668-7SWITCH ROCKER DIP SPST 0.06A 5V |
4,412 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
1-435802-8SWITCH PIANO DIP SPST 0.025A 24V |
2,375 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

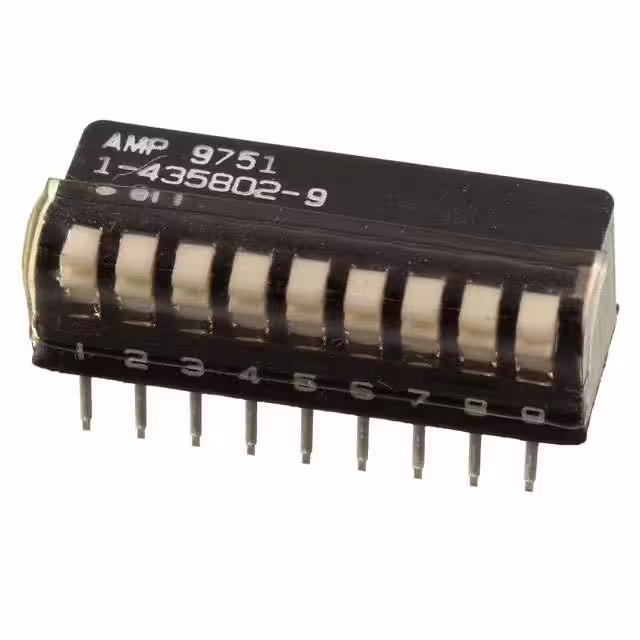

1-435802-9SWITCH PIANO DIP SPST 0.025A 24V |
1,639 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 9 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
76SB02SSWITCH ROCKER DIP SPST 0.15A 30V |
4,071 |
|
规格书 |
76 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB03SSWITCH ROCKER DIP SPST 0.15A 30V |
2,439 |
|
规格书 |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB04SSWITCH ROCKER DIP SPST 0.15A 30V |
2,981 |
|
规格书 |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
206-223STSWITCH SLIDE DIP DPDT 0.05A 24V |
2,589 |
|
规格书 |
206 | Tube | Obsolete | DPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
76SB05SSWITCH ROCKER DIP SPST 0.15A 30V |
3,004 |
|
规格书 |
76 | Bag | Obsolete | SPST | 5 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB06SSWITCH ROCKER DIP SPST 0.15A 30V |
2,253 |
|
规格书 |
76 | Bag | Obsolete | SPST | 6 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB08SSWITCH ROCKER DIP SPST 0.15A 30V |
1,252 |
|
规格书 |
76 | Bag | Obsolete | SPST | 8 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB09SSWITCH ROCKER DIP SPST 0.15A 30V |
2,504 |
|
规格书 |
76 | Bag | Obsolete | SPST | 9 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB10SSWITCH ROCKER DIP SPST 0.15A 30V |
3,762 |
|
规格书 |
76 | Bag | Obsolete | SPST | 10 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76SB12SSWITCH ROCKER DIP SPST 0.15A 30V |
2,299 |
|
规格书 |
76 | Bag | Obsolete | SPST | 12 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
76SB02SWITCH ROCKER DIP SPST 0.15A 30V |
3,211 |
|
规格书 |
76 | Bag | Obsolete | SPST | 2 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76SB03SWITCH ROCKER DIP SPST 0.15A 30V |
4,158 |
|
规格书 |
76 | Bag | Obsolete | SPST | 3 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76SB04SWITCH ROCKER DIP SPST 0.15A 30V |
2,155 |
|
规格书 |
76 | Bag | Obsolete | SPST | 4 | 150mA | 30VDC | Rocker | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
