| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76PRB03STSWITCH PIANO DIP SPST 0.15A 30V |
2,583 |
|
规格书 |
76 | Tube | Active | SPST | 3 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
90HBW08TSWITCH SLIDE DIP SPST 0.025A 24V |
3,341 |
|
规格书 |
90HB | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

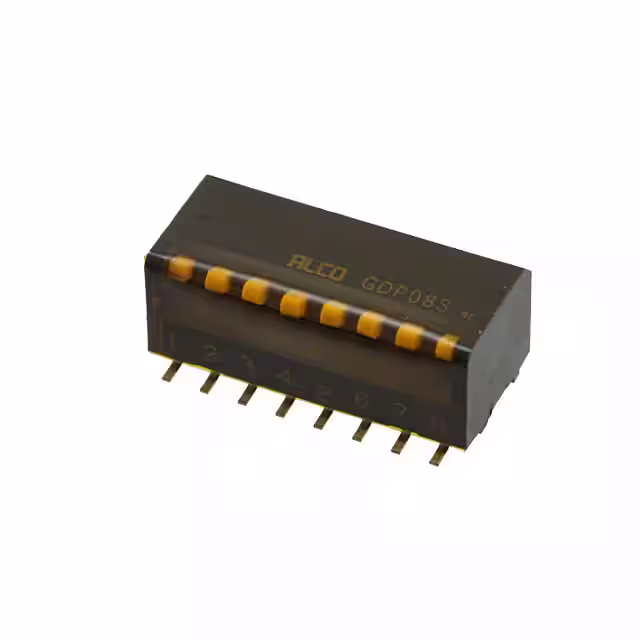

1-1571998-6SWITCH PIANO DIP SPST 0.025A 24V |
3,959 |
|
- |
GDP | Tape & Reel (TR) | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.343" (8.70mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
78HJ03GWRTSWITCH SLIDE DIP SPDT 0.15A 30V |
4,773 |
|
规格书 |
78H | Tape & Reel (TR) | Active | SPDT | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDS09VDIP SWITCH ND STANDARD |
2,986 |
|
规格书 |
NDS | Bulk | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.270" (6.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
ND3KR16P-RSWITCH ROTARY DIP HEX 0.1A 5V |
3,612 |
|
规格书 |
ND3 | Bulk | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
78F02STSWITCH SLIDE DIP DPST 0.15A 30V |
4,102 |
|
规格书 |
78 | Tube | Active | DPST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
DPU04SWITCH PIANO DIP SPST 0.4VA 20V |
4,673 |
|
- |
DPU | Tube | Obsolete | SPST | 4 | 0.4VA | 20VDC | Piano | Raised | Copper Alloy | Gold | 0.370" (9.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
8-435626-6SW ROCKER DIP SPST 0.025A 24V |
2,062 |
|
规格书 |
7000 | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
76HPSB04GWTSWITCH PIANO DIP SPST 0.15A 30V |
3,291 |
|
规格书 |
76HP | Tube | Active | SPST | 4 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
78G02TSWITCH SLIDE DIP 3PST 0.15A 30V |
1,269 |
|
规格书 |
78 | Tube | Active | 3PST | 2 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
3-435668-3SWITCH ROCKER DIP SPST 0.06A 5V |
3,475 |
|
规格书 |
7100 | Tube | Active | SPST | 3 | 60mA | 5VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
76PRB05TSWITCH PIANO DIP SPST 0.15A 30V |
4,566 |
|
规格书 |
76 | Tube | Active | SPST | 5 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

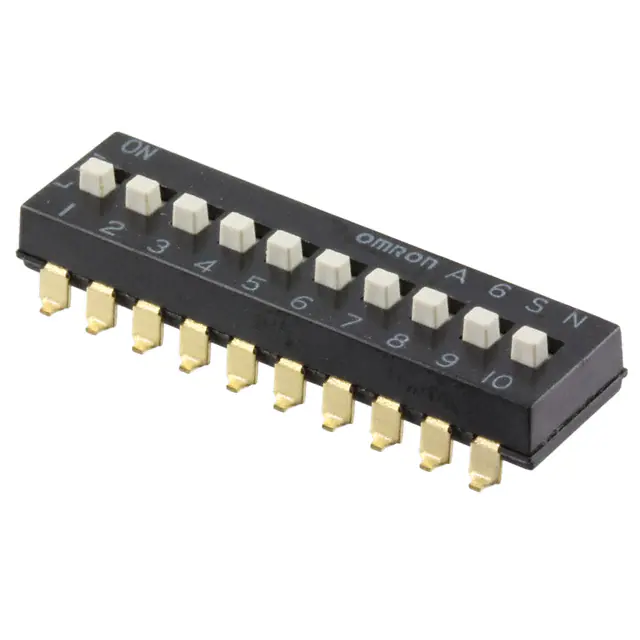

A6SN-0104SWITCH SLIDE DIP SPST 0.025A 24V |
3,405 |
|
规格书 |
A6SN | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
1571983-9SWITCH SLIDE DIP SPST 0.025A 24V |
1,585 |
|
规格书 |
GDH | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ND3FR16B-RSWITCH ROTARY DIP HEX 0.1A 5V |
2,329 |
|
规格书 |
ND3 | Tape & Reel (TR) | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
DHS4ADIPTRONICS HALF PITCH DIP |
4,430 |
|
规格书 |
DHS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | - | -40°C ~ 85°C |
|
|
78F03TSWITCH SLIDE DIP DPST 0.15A 30V |
2,164 |
|
规格书 |
78 | Tube | Active | DPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6ER-7104SWITCH PIANO DIP SPST 0.025A 24V |
4,788 |
|
规格书 |
A6ER | Tube | Obsolete | SPST | 7 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
SSH10SWITCH SLIDE DIP SPST 0.4VA 20V |
4,530 |
|
规格书 |
SSH | Tube | Obsolete | SPST | 10 | 0.4VA | 20VAC/DC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.169" (4.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -30°C ~ 85°C |
