购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P36SSG11DIP ROTARY SWITCH P25 7MM LOW |
3,201 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DMR08TVTRDIP SWITCH DM LOW PROFILE |
2,200 |
|
规格书 |
DM | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
FD01KR16P-SSW ROTARY DIP HEX COMP 100MA 5V |
4,398 |
|
规格书 |
FD01 | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.417" (10.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FD01KR10P-SSW ROTARY DIP BCD COMP 100MA 5V |
2,390 |
|
规格书 |
FD01 | Tube | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Brass | Gold | 0.417" (10.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
90HGBW10PRTSWITCH SLIDE DIP SPST 0.01A 30V |
1,757 |
|
- |
90HGB | Tape & Reel (TR) | Obsolete | SPST | 10 | 10mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
P36S103TRSWITCH ROTARY DIP HEX 0.1A 24V |
4,614 |
|
规格书 |
P36S | Tape & Reel (TR) | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
P36S106TRSW ROTARY DIP HEX COMP 0.1A 24V |
4,800 |
|
规格书 |
P36S | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
|
1-1825008-6SWITCH ROTARY DIP HEX 0.4VA 20V |
1,159 |
|
规格书 |
DR | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.413" (10.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
|
76RSB04SLTSWITCH ROCKER DIP SPST 0.15A 30V |
2,395 |
|
规格书 |
76 | Tube | Active | SPST | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Position Identification Line, Tape Seal | -40°C ~ 85°C |
|
76RSB07TSWITCH ROCKER DIP SPST 0.15A 30V |
3,497 |
|
规格书 |
76 | Tube | Active | SPST | 7 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
FR01AC10PB-WSW ROTARY DIP BCD COMP 0.1A 5V |
1,303 |
|
规格书 |
FR01 | Bulk | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
FR01AC10PB-W-SSW ROTARY DIP BCD COMP 0.1A 5V |
3,025 |
|
规格书 |
FR01 | Tube | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 1.104" (28.05mm) | Panel Mount | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
|
DMR10TVTRDIP SWITCH DM LOW PROFILE |
2,215 |
|
规格书 |
DM | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
2-2396234-8SWITCH ROTARY DIP VERT GW |
1,002 |
|
规格书 |
MRD | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2396234-8SWITCH ROTARY DIP 16P VERT SMD |
1,366 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | Hexadecimal Complement | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2396234-3SWITCH ROTARY DIP 10P VERT SMD |
2,825 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
2-2396234-3SWITCH ROTARY DIP 10P VERT SMD |
1,026 |
|
规格书 |
MRSS | Tape & Reel (TR) | Active | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
76HPSB08GWRSWITCH PIANO DIP SPST 0.15A 30V |
3,657 |
|
规格书 |
76HP | Tape & Reel (TR) | Obsolete | SPST | 8 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78HJ01GWRTSWITCH SLIDE DIP SPDT 0.15A 30V |
2,205 |
|
规格书 |
78H | Tape & Reel (TR) | Active | SPDT | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

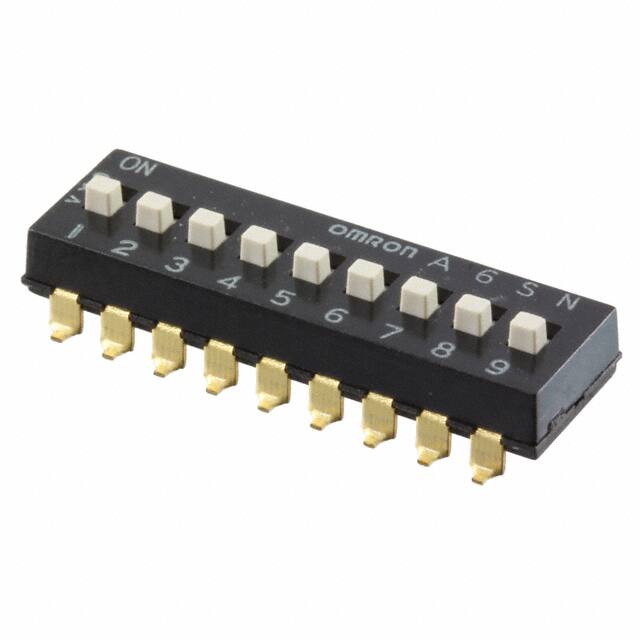

A6SN-9104-R100SWITCH SLIDE DIP SPST 0.025A 24V |
4,288 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
