购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
78RB05TSWITCH SLIDE DIP SPST 0.15A 30V |
4,035 |
|
规格书 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DMR08TVDIP SWITCH DM LOW PROFILE |
2,511 |
|
规格书 |
DM | Bulk | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
DMR07TTRDIP SWITCH DM LOW PROFILE |
3,450 |
|
规格书 |
DM | Bulk | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
97R06TSWITCH SLIDE DIP SPST 0.025A 24V |
4,718 |
|
规格书 |
97 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
RDMBR10R2TSWITCH ROTARY DIP BCD 0.1A 42V |
4,239 |
|
规格书 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary with Shaft | Raised | - | Gold | 0.291" (7.39mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
|
90HBJ03PRTSWITCH SLIDE DIP SPST 0.025A 24V |
2,041 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

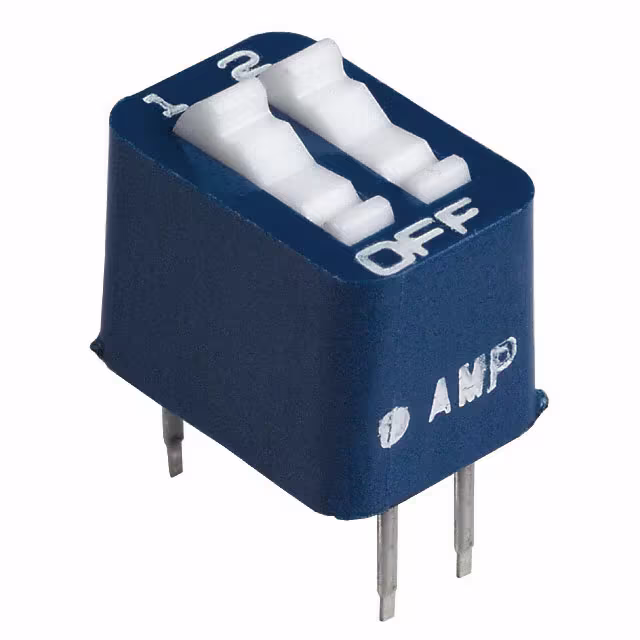

2-435640-9SWITCH ROCKER DIP SPST 0.06A 5V |
4,490 |
|
规格书 |
7100 | Tube | Active | SPST | 2 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
97C06TSWITCH SLIDE DIP SPST 0.025A 24V |
3,325 |
|
规格书 |
97 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
3-1825033-1SWITCH ROTARY DIP HEX 0.4VA 20V |
2,157 |
|
规格书 |
DR | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Knob | Raised | Copper Alloy | Gold | 0.386" (9.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -30°C ~ 85°C |
|
90HBJ02RTSWITCH SLIDE DIP SPST 0.025A 24V |
3,812 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

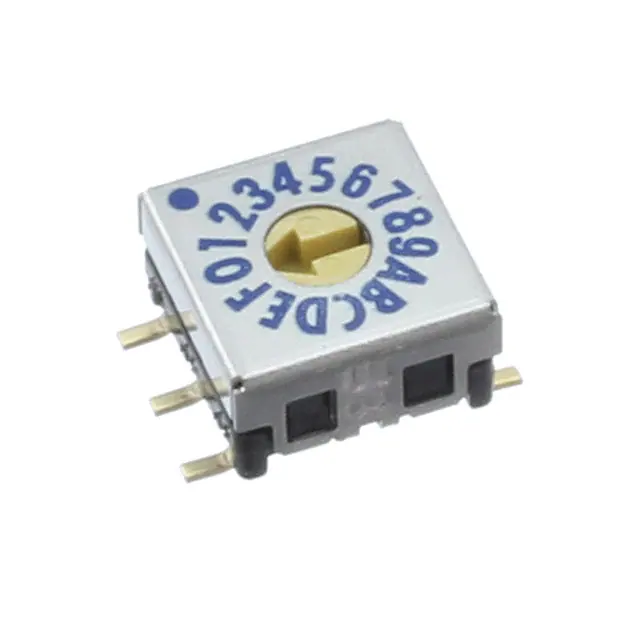

SMR7016C-1SWITCH ROTARY DIP HEX 0.03A 15V |
3,588 |
|
规格书 |
SMR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

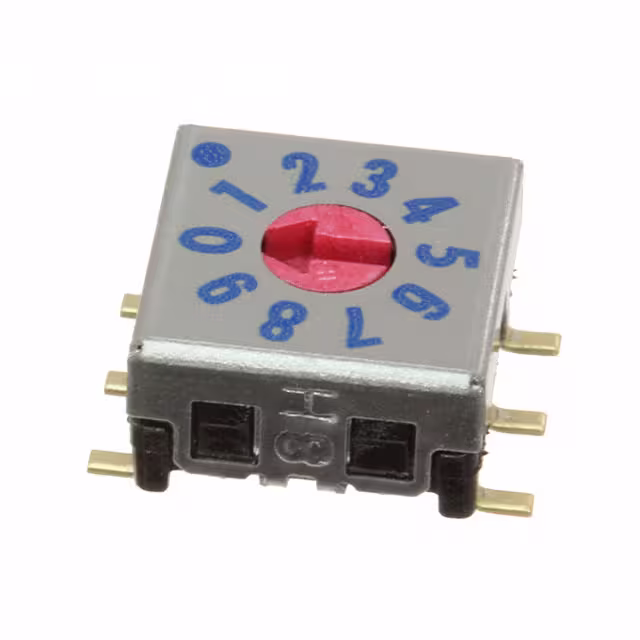

SMR7110C-1SW ROTARY DIP BCD COMP 0.03A 15V |
1,505 |
|
规格书 |
SMR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|

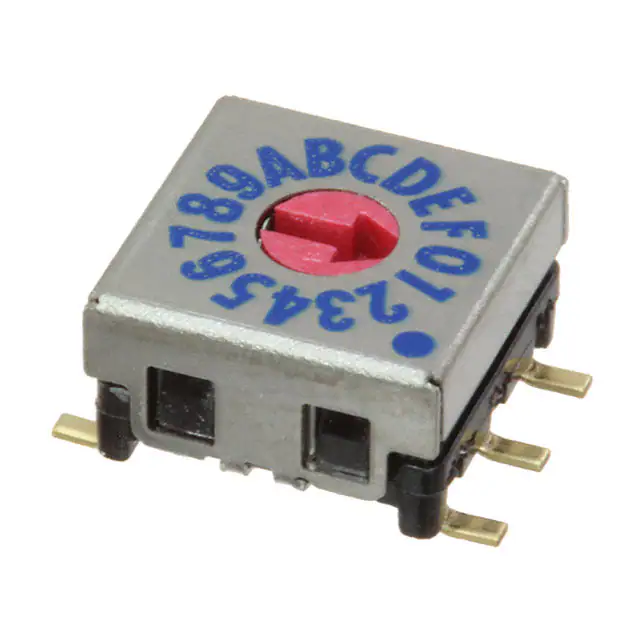

SMR7116C-1SW ROTARY DIP HEX COMP 0.03A 15V |
3,762 |
|
规格书 |
SMR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
FR01KC10P-SSW ROTARY DIP BCD COMP 0.1A 5V |
1,297 |
|
规格书 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8116CSW ROTARY DIP HEX COMP 0.03A 15V |
2,198 |
|
- |
DR | Tube | Active | Hexadecimal Complement | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8016CSWITCH ROTARY DIP HEX 0.03A 15V |
2,101 |
|
- |
DR | Tube | Active | Hexadecimal | 16 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8110CSW ROTARY DIP BCD COMP 0.03A 15V |
2,910 |
|
- |
DR | Tube | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
DRS8010CSWITCH ROTARY DIP BCD 0.03A 15V |
3,247 |
|
- |
DR | Tube | Active | BCD | 10 | 30mA | 15VDC | Rotary with Shaft | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
90B06TSWITCH SLIDE DIP SPST 0.025A 24V |
2,505 |
|
规格书 |
90B | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
90HBJ05PRTSWITCH SLIDE DIP SPST 0.025A 24V |
1,784 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
