购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
193-3MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
1,906 |
|
规格书 |
193 | Tube | Active | SPST | 3 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-9ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,111 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-9ESDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,834 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-9ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,841 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-9ESFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,700 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-9LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,981 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

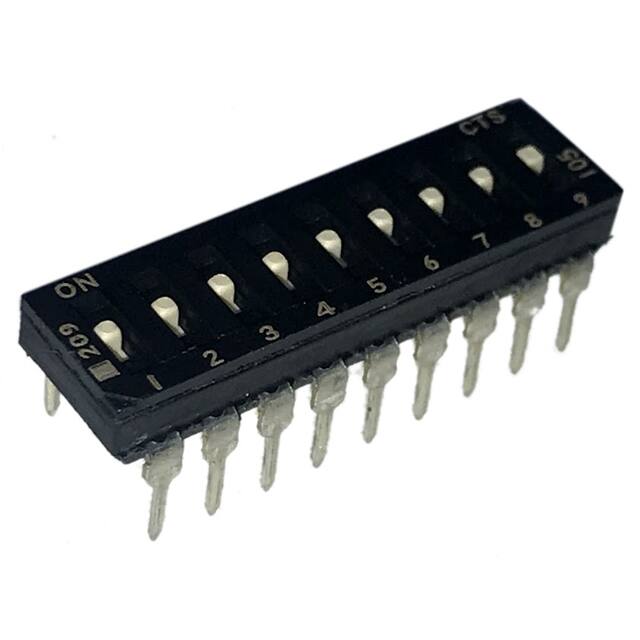

209-9LPSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,804 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

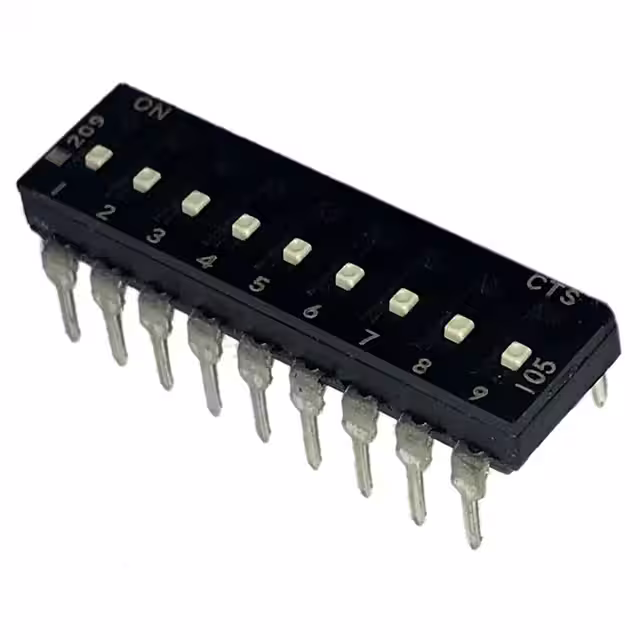

209-9LPSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,080 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

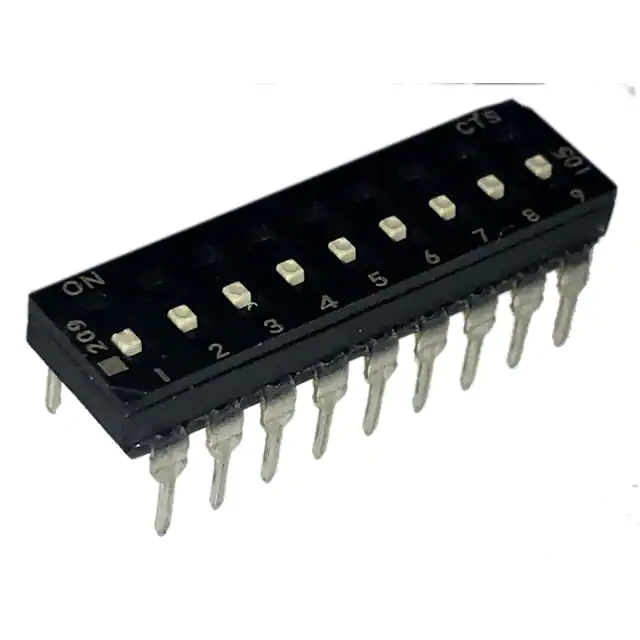

209-9LPSFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,985 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-9MSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,689 |
|
规格书 |
209 | Tube | Active | SPST | 9 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
