购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
210-10LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
2,463 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

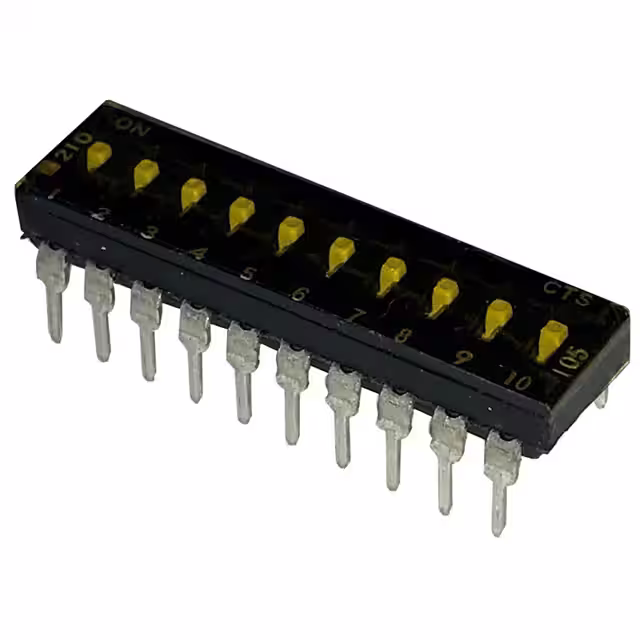

210-10MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,701 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
210-10LPSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,118 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

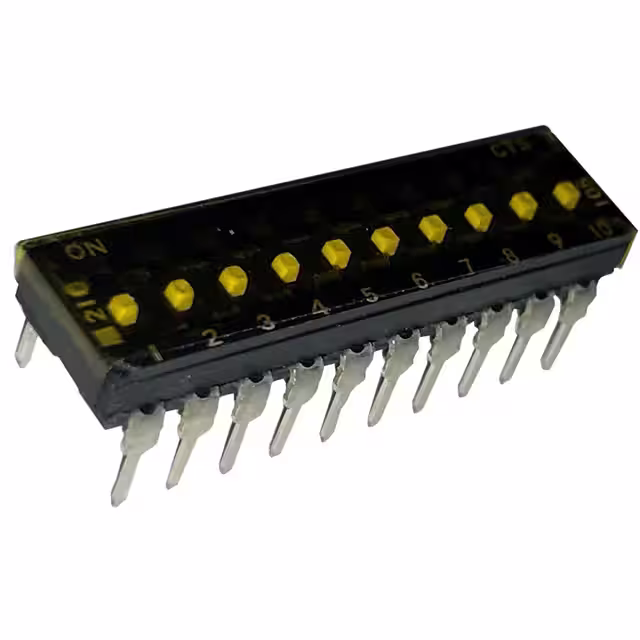

210-10MSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,486 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
210-10LPSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,077 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

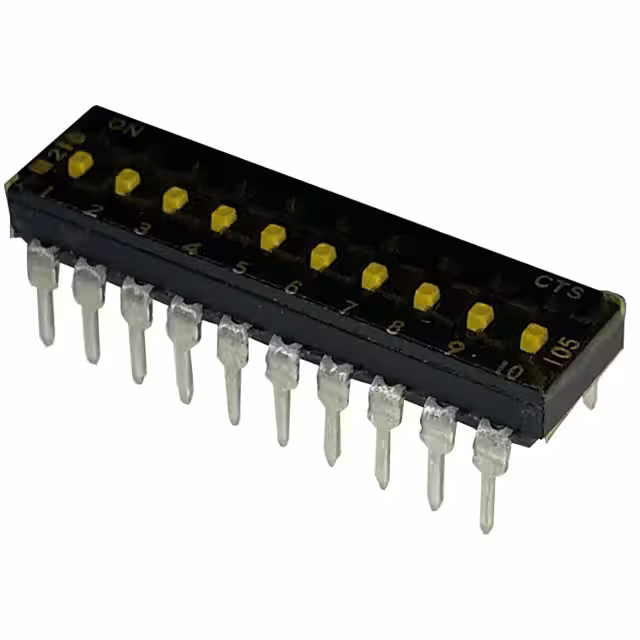

210-10MSTFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,925 |
|
规格书 |
210 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|

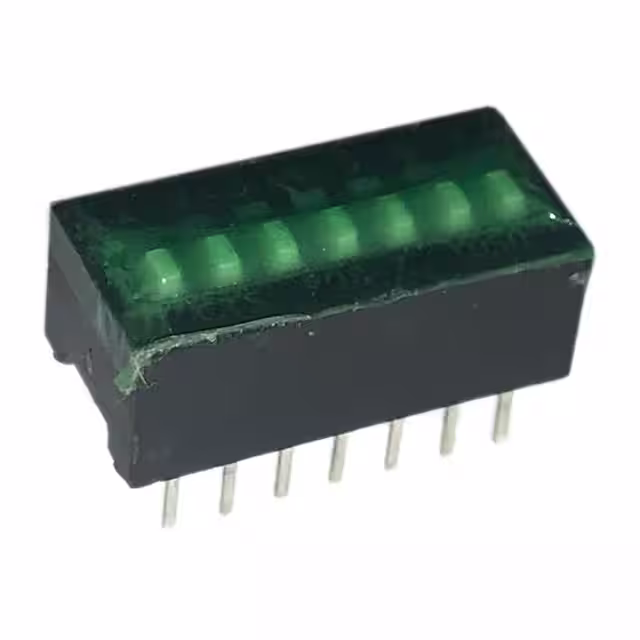

208-7LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,214 |
|
规格书 |
208 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
208-7STSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,875 |
|
规格书 |
208 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-3LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,733 |
|
规格书 |
206 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-4LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,040 |
|
规格书 |
206 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
