购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

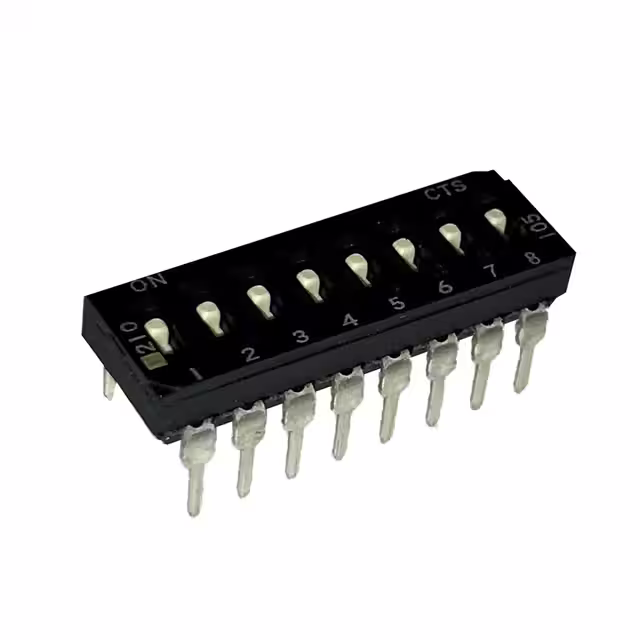

210-8LPSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,824 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

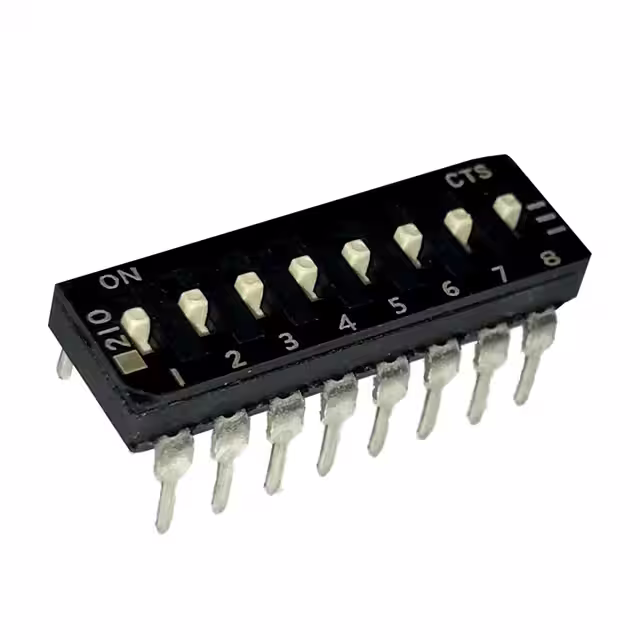

210-8MSDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,227 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
210-8ESDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,662 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

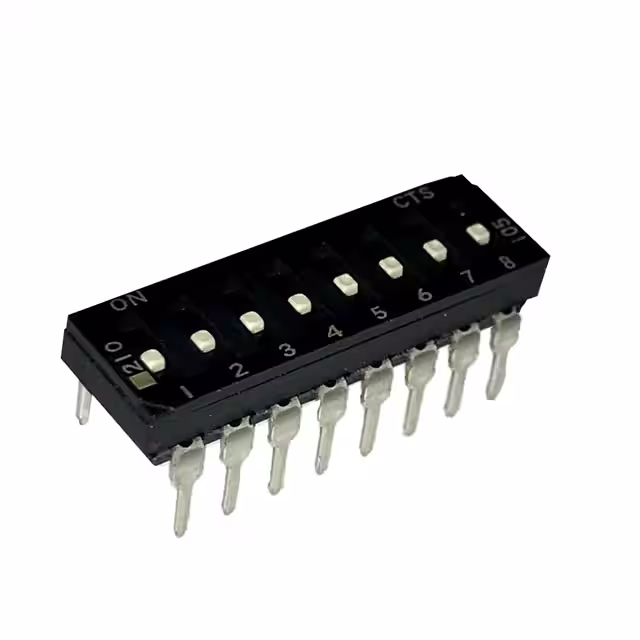

210-8LPSFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,629 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

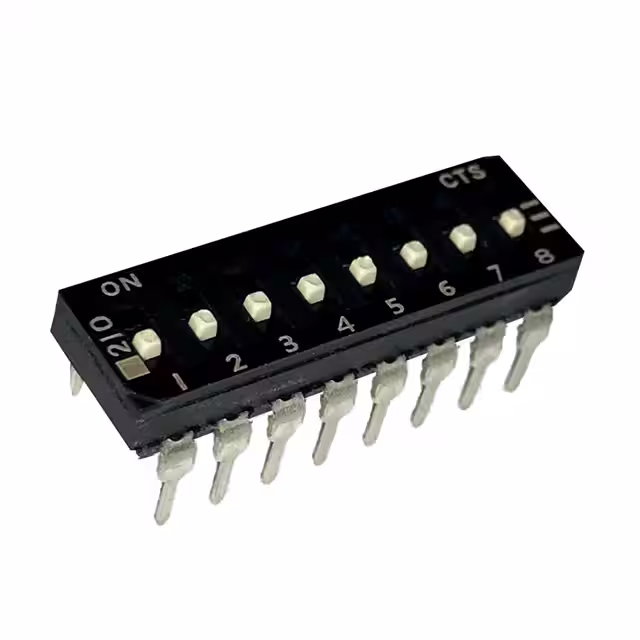

210-8MSFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,162 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
210-8ESFDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,924 |
|
规格书 |
210 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
208-3LPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,134 |
|
规格书 |
208 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Tin | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
208-3STSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,898 |
|
规格书 |
208 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
209-5ESSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,090 |
|
规格书 |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-5ESDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,757 |
|
规格书 |
209 | Tube | Active | SPST | 5 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
