购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-12ESFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,885 |
|
规格书 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.184" (4.67mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,403 |
|
规格书 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,360 |
|
规格书 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,592 |
|
规格书 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12MSFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,879 |
|
规格书 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
195-9MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,835 |
|
规格书 |
195 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

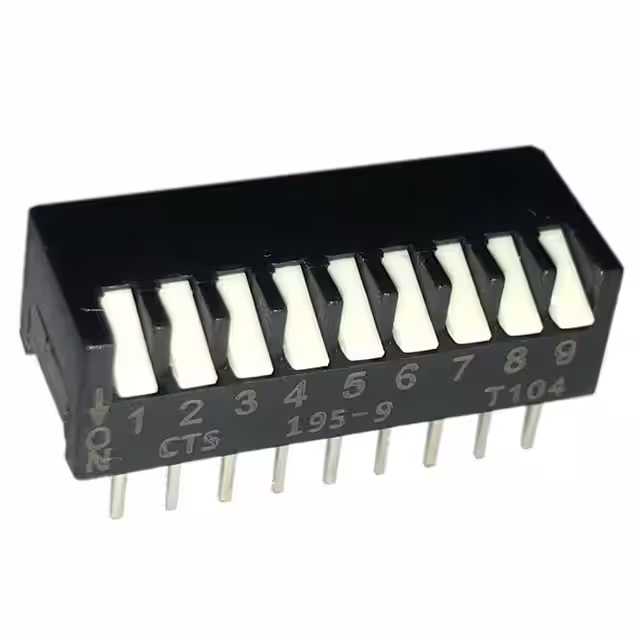

195-9MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,846 |
|
规格书 |
195 | Tube | Active | SPST | 9 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
209-12LPSTDSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,115 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-12LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,939 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.180" (4.57mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
|
|
209-12MSTSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
3,351 |
|
规格书 |
209 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -40°C ~ 85°C |
