购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

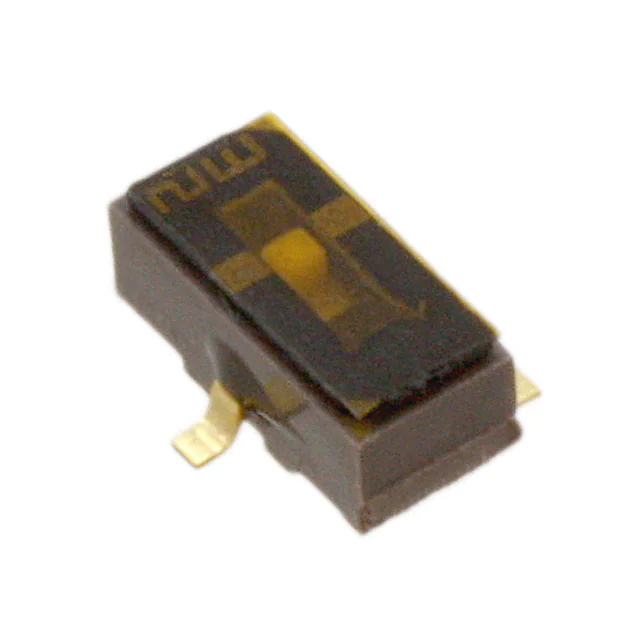

CJS-1200TBSWITCH SLIDE SPDT 100MA 6V |
37,306 |
|
规格书 |
CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | Tape Seal | -40°C ~ 85°C |
|

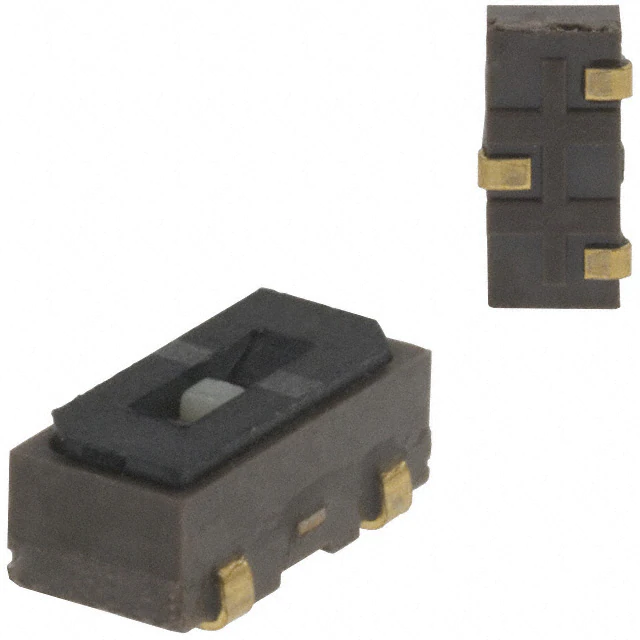

CJS-1200TASWITCH SLIDE SPDT 100MA 6V |
28,111 |
|
规格书 |
CJS | Tape & Reel (TR) | Active | SPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | Tape Seal | -40°C ~ 85°C |
|
206-5STSWITCH SLIDE DIP SPST 0.05A 24V |
13,295 |
|
规格书 |
206 | Tube | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-8STSWITCH SLIDE DIP SPST 0.05A 24V |
26,700 |
|
规格书 |
206 | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
218-2LPSTSWITCH SLIDE DIP SPST 0.025A 24V |
8,759 |
|
规格书 |
218 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
218-2LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
17,586 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-8LPSTRSWITCH SLIDE DIP SPST 0.1A 20V |
52,992 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-3STSWITCH SLIDE DIP SPST 0.05A 24V |
4,927 |
|
规格书 |
204 | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-6STSWITCH SLIDE DIP SPST 0.05A 24V |
7,546 |
|
规格书 |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
.jpg)
|
219-8MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
26,688 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

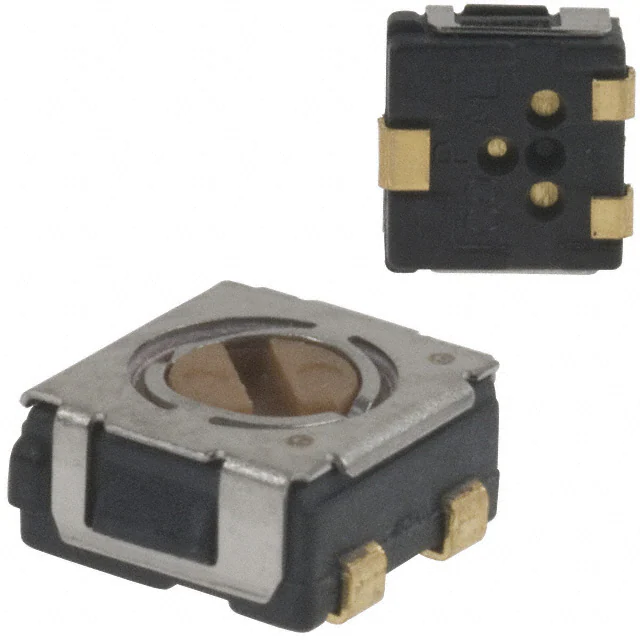

CS-4-12XTASWITCH ROTARY DIP SPDT 0.1A 16V |
8,927 |
|
规格书 |
CS-4 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | - | Yes | - | -25°C ~ 70°C |
|
219-6MSTRSWITCH SLIDE DIP SPST 0.1A 20V |
2,412 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-8LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
10,204 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
204-4STSWITCH SLIDE DIP SPST 0.05A 24V |
8,197 |
|
规格书 |
204 | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

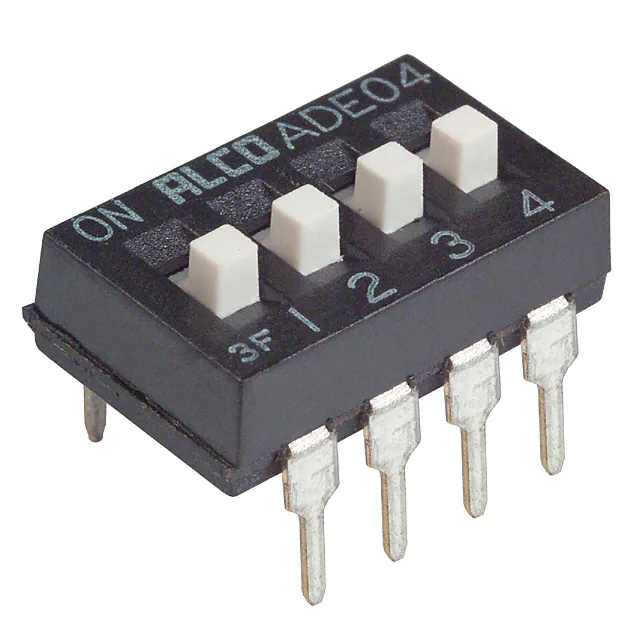

1825057-3SWITCH SLIDE DIP SPST 0.1A 24V |
27,895 |
|
规格书 |
ADE | Tube | Active | SPST | 4 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
.jpg)
|
218-4LPSTRSWITCH SLIDE DIP SPST 0.025A 24V |
9,707 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

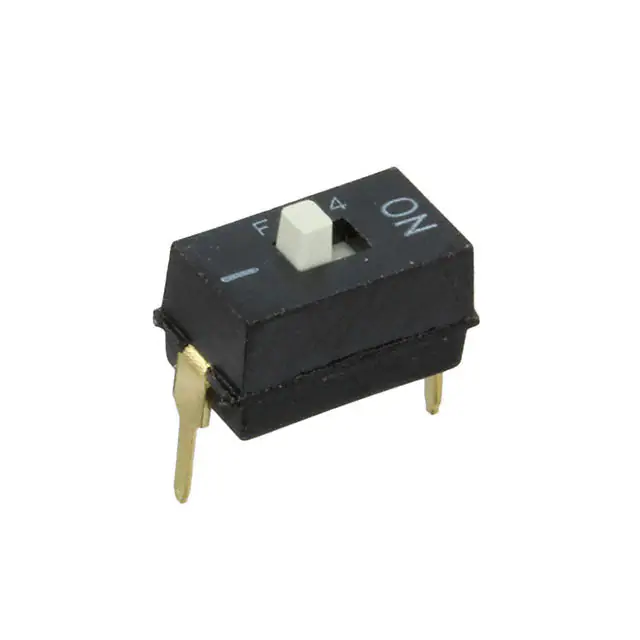

A6TN-1104SWITCH SLIDE DIP SPST 0.025A 24V |
2,830 |
|
规格书 |
A6TN | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

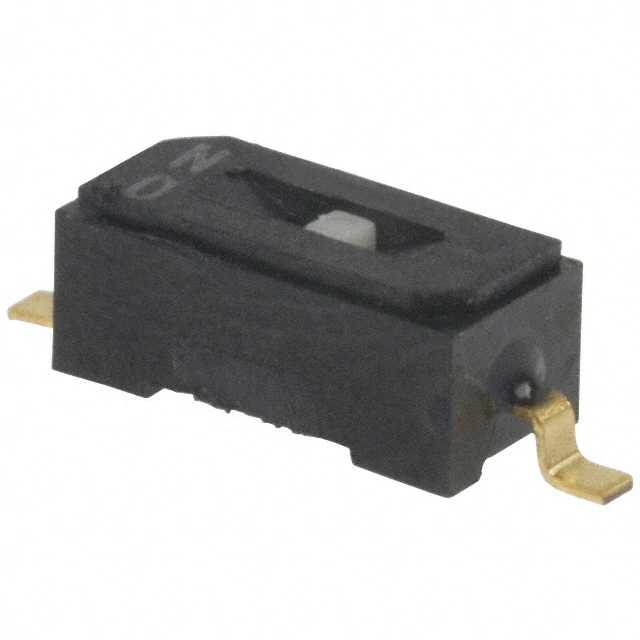

CHS-01TBSWITCH SLIDE DIP SPST 0.1A 6V |
35,939 |
|
规格书 |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|

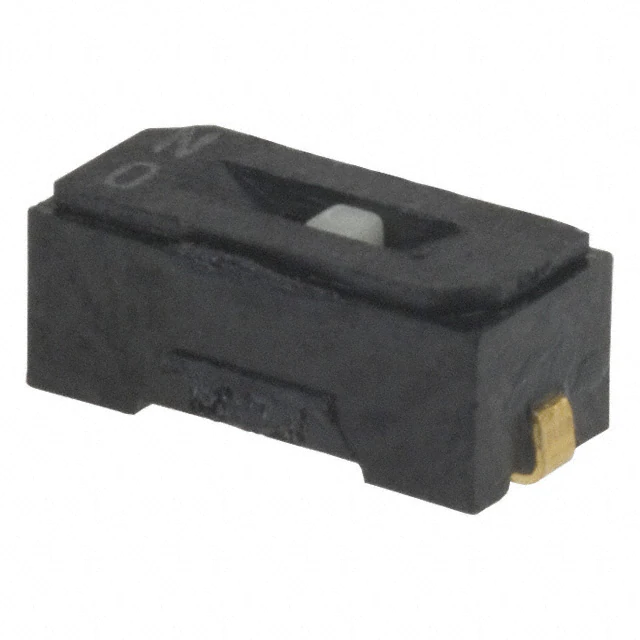

CHS-01TASWITCH SLIDE DIP SPST 0.1A 6V |
14,636 |
|
规格书 |
CHS | Tape & Reel (TR) | Active | SPST | 1 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
.jpg)
|
219-10MSTSWITCH SLIDE DIP SPST 0.1A 20V |
9,659 |
|
规格书 |
219 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
