购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CRE10RRDP0SRSW ROTARY DIP BCD 150MA 42VDC |
4,259 |
|
规格书 |
CRE | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.307" (7.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
RDMAC16P1TSW ROTARY DIP HEX COMP 0.1A 42V |
1,992 |
|
规格书 |
RDM | Tube | Active | Hexadecimal Complement | 16 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
|
RDMAR10P1TSWITCH ROTARY DIP BCD 0.1A 42V |
4,186 |
|
规格书 |
RDM | Tube | Active | BCD | 10 | 100mA | 42VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -60°C ~ 125°C |
|
SD04H1SBRSWITCH SLIDE DIP SPST 0.1A 25V |
1,954 |
|
规格书 |
SD | Tape & Reel (TR) | Active | SPST | 4 | 100mA | 25VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.180" (4.57mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

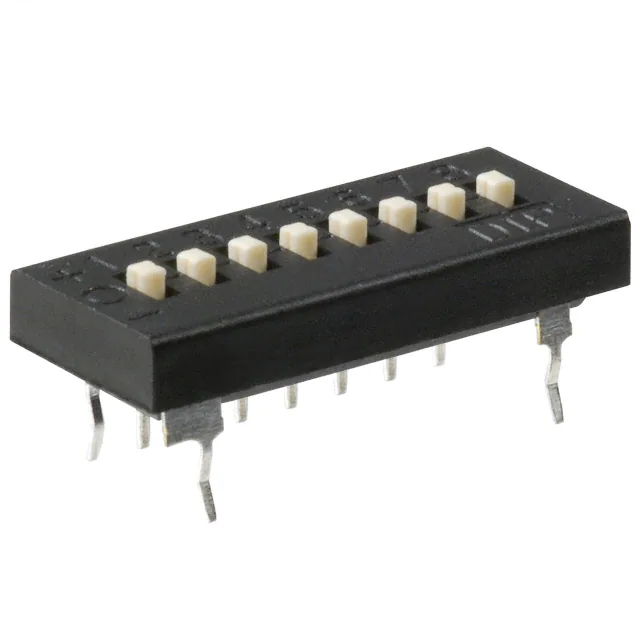

KAT1108ESWITCH SLIDE DIP SPDT 0.025A 24V |
4,212 |
|
规格书 |
KAT | Tube | Obsolete | SPDT | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
RTE1000G34SW ROTARY DIP GRAY CODE 0.1A 30V |
2,199 |
|
规格书 |
RTE | Bulk | Active | Gray Code | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE10B0G14SWITCH ROTARY DIP BCD 0.1A 30V |
1,360 |
|
规格书 |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE10F0G14SWITCH ROTARY DIP BCD 0.1A 30V |
3,203 |
|
规格书 |
RTE | Bulk | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | Bronze | Gold | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
RTE1602G44SWITCH ROTARY DIP HEX 0.1A 30V |
2,935 |
|
规格书 |
RTE | Bulk | Active | Hexadecimal | 16 | 100mA | 30VDC | Rotary with Shaft | Raised | Bronze | Gold | 0.322" (8.18mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
CHS-08TB2SWITCH SLIDE DIP SPST 0.1A 6V |
4,066 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
|
CHS-08TA2SWITCH SLIDE DIP SPST 0.1A 6V |
2,528 |
|
- |
CHS | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.098" (2.50mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
CVS-03TB-1SWITCH SLIDE DIP SPST 0.1A 6V |
3,441 |
|
规格书 |
CVS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Raised | Stainless Steel | Gold | 0.057" (1.45mm) | Surface Mount | Gull Wing | 0.039" (1.00mm) | No | - | -40°C ~ 85°C |
|
|
ADP10SWITCH PIANO DIP SPST 0.025A 24V |
4,619 |
|
规格书 |
ADP | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADPA10SWITCH PIANO DIP SPST 0.025A 24V |
3,776 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 10 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
CRE10RRDM0CSW ROTARY DIP BCD 150MA 42VDC |
4,024 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CRE10RRDM1CSW ROTARY DIP BCD 150MA 42VDC |
3,793 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Brass | Gold | 0.331" (8.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CRE16RRDL0SRSW ROTARY DIP HEX 150MA 42VDC |
1,890 |
|
规格书 |
CRE | Tape & Reel (TR) | Active | Hexadecimal | 16 | 150mA | 42VDC | Rotary with Shaft | Raised | Brass | Gold | 0.555" (14.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
|
CAS-220A2SWITCH SLIDE DPDT 0.1A 6V |
1,075 |
|
- |
CAS | Bulk | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
|
CAS-220B2SWITCH SLIDE DPDT 0.1A 6V |
2,705 |
|
- |
CAS | Bulk | Active | DPDT | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
KAN1106RSWITCH SLIDE DIP SPST 0.025A 24V |
1,300 |
|
规格书 |
KAN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
