| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPL04TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,659 |
|
规格书 |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DPL04SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,458 |
|
规格书 |
DPL | Tube | Obsolete | SPST | 4 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL03SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,314 |
|
规格书 |
DPL | Tube | Obsolete | SPST | 3 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|

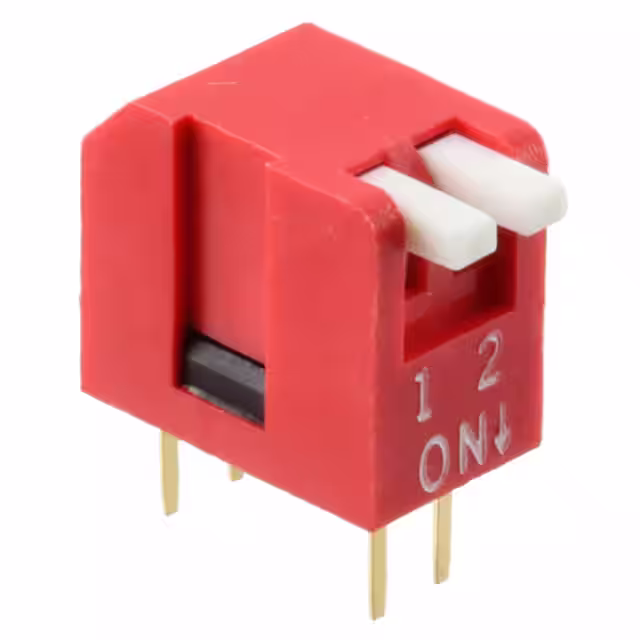

DPL02TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,198 |
|
规格书 |
DPL | Tube | Obsolete | SPST | 2 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP08TSWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
1,048 |
|
规格书 |
DP | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -20°C ~ 70°C |
|
|
DP10SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,644 |
|
规格书 |
DP | Tube | Obsolete | SPST | 10 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DPL06SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
3,079 |
|
规格书 |
DPL | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP08SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,465 |
|
规格书 |
DP | Tube | Obsolete | SPST | 8 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP07SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
4,085 |
|
规格书 |
DP | Tube | Obsolete | SPST | 7 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
|
|
DP06SWITCH PIANO DIP SPST 0.05A 24V APEM Inc. |
2,034 |
|
规格书 |
DP | Tube | Obsolete | SPST | 6 | 50mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -20°C ~ 70°C |
