购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

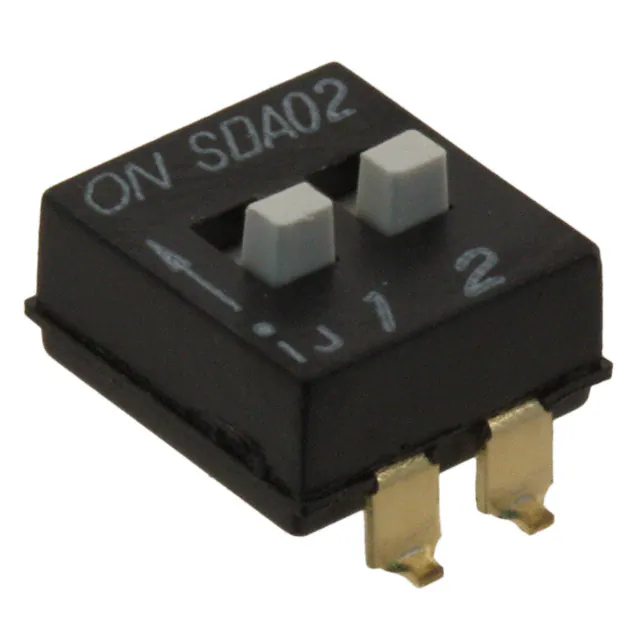

SDA02H1SBDSWITCH SLIDE DIP SPST 0.025A 24V |
21,316 |
|
规格书 |
SDA | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.214" (5.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0603TBSWITCH SLIDE DIP SPST 0.1A 6V |
288 |
|
规格书 |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
7814J-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
208 |
|
规格书 |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
DS05-127-2-08BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
238 |
|
规格书 |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

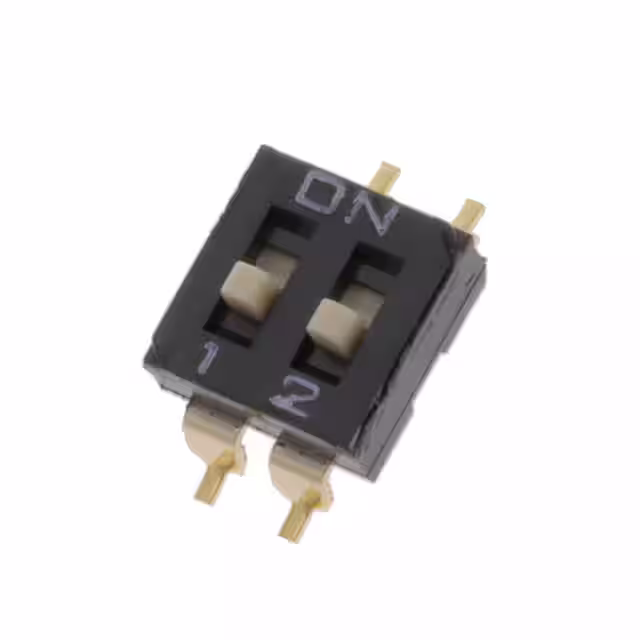

DM02SWITCH SLIDE DIP SPST 0.025A 24V |
3,444 |
|
规格书 |
DM | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
DS05-127-2-04BK-SMT-TRSWITCH SLIDE DIP SPST 0.025A 24V |
5,191 |
|
规格书 |
DS05-127-SMT | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.094" (2.40mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|
193-8MSSWITCH PIANO DIP SPST 0.05A 24V |
666 |
|
规格书 |
193 | Tube | Active | SPST | 8 | 50mA | 24VDC | Piano | Raised | - | Gold | 0.359" (9.12mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
1571999-1SWITCH PIANO DIP SPST 0.025A 24V |
11,556 |
|
规格书 |
ADP | Bulk | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.287" (7.30mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
206-124STSWITCH SLIDE DIP SPDT 0.05A 24V |
1,105 |
|
规格书 |
206 | Tube | Active | SPDT | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
A6S-4101-PHSWITCH SLIDE DIP SPST 0.025A 24V |
1,338 |
|
规格书 |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-2104-HSWITCH SLIDE DIP SPST 0.025A 24V |
5,449 |
|
规格书 |
A6S-H | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

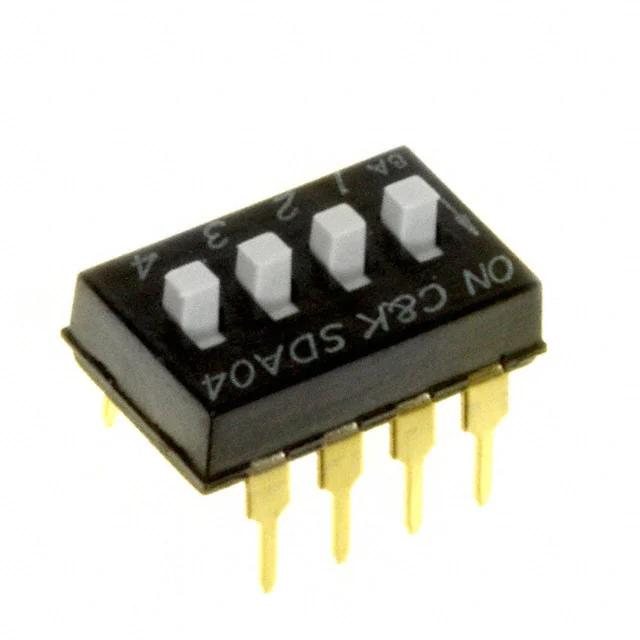

SDA04H1BDSWITCH SLIDE DIP SPST 0.025A 24V |
44,137 |
|
规格书 |
SDA | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DMR04TTRSWITCH SLIDE DIP SPST 0.025A 24V |
12,049 |
|
规格书 |
DM | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
76RSB08STSWITCH ROCKER DIP SPST 0.15A 30V |
5,027 |
|
规格书 |
76 | Tube | Active | SPST | 8 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
A6S-4102-PHSWITCH SLIDE DIP SPST 0.025A 24V |
726 |
|
规格书 |
A6S-H | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 70°C |
|
ADE08A04SWITCH SLIDE DIP SPST 0.1A 24V |
773 |
|
规格书 |
ADE | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
7813J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
7,555 |
|
规格书 |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.087" (2.20mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
7814J-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
4,815 |
|
规格书 |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
A6FR-8104SWITCH PIANO DIP SPST 0.025A 24V |
2,080 |
|
规格书 |
A6FR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

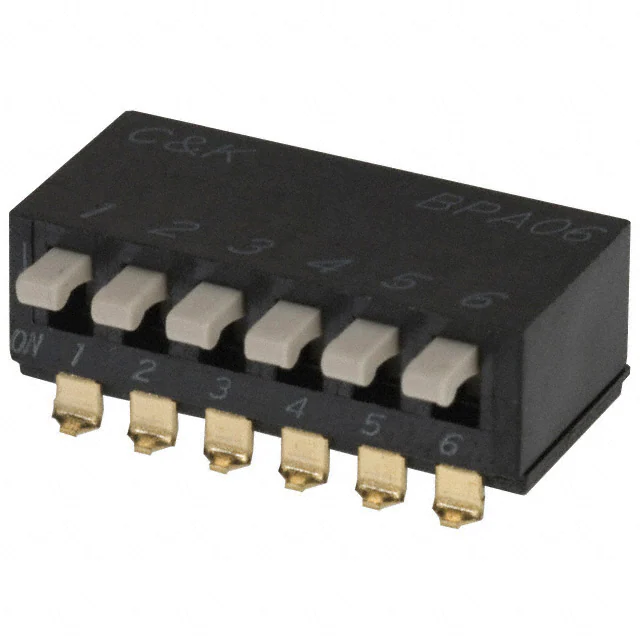

BPA06SBRSWITCH PIANO DIP SPST 0.1A 5V |
1,618 |
|
规格书 |
BPA | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 5VDC | Piano | Raised | Beryllium Copper | Gold | 0.274" (6.95mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
