购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KAE12TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,158 |
|
规格书 |
KAE | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
SDA06H0SBDRSWITCH SLIDE DIP SPST 100MA 5VDC |
3,798 |
|
规格书 |
SDA | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 5VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
GDP02SWITCH PIANO DIP SPST 0.025A 24V |
3,515 |
|
规格书 |
GDP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
ADPA05SWITCH PIANO DIP SPST 0.025A 24V |
1,183 |
|
规格书 |
ADPA | Tube | Obsolete | SPST | 5 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
ADF12SSWITCH SLIDE DIP SPST 0.025A 24V |
2,371 |
|
规格书 |
ADF | Tube | Obsolete | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.181" (4.60mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
IKE0403101DIP SWITCH IKH HALF PITCH |
3,304 |
|
规格书 |
IKE | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CS-4-14NASWITCH ROTARY DIP SP4T 0.1A 16V |
4,409 |
|
规格书 |
CS-4 | Bulk | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | J Lead | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
|
CS-4-14NBSWITCH ROTARY DIP SP4T 0.1A 16V |
3,132 |
|
规格书 |
CS-4 | Bulk | Active | SP4T | 4 | 100mA | 16VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.051" (1.30mm) | Yes | - | -25°C ~ 70°C |
|
TDS08SGNNTR04SWITCH SLIDE DIP SPST 0.025A 24V |
1,435 |
|
- |
TDS | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
CFS-0603MBSWITCH SLIDE DIP SPST 0.1A 6V |
4,779 |
|
规格书 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
CFS-0603MCSWITCH SLIDE DIP SPST 0.1A 6V |
2,589 |
|
规格书 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.217" (5.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
NDA10TVDIP SWITCH DA RIGHT ANGLE |
1,609 |
|
规格书 |
NDA | Bulk | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 70°C |
|
|
4-1825059-0SWITCH STANDARD DIP SPST |
3,278 |
|
规格书 |
ADF | Tape & Reel (TR) | Active | SPST | 8 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|

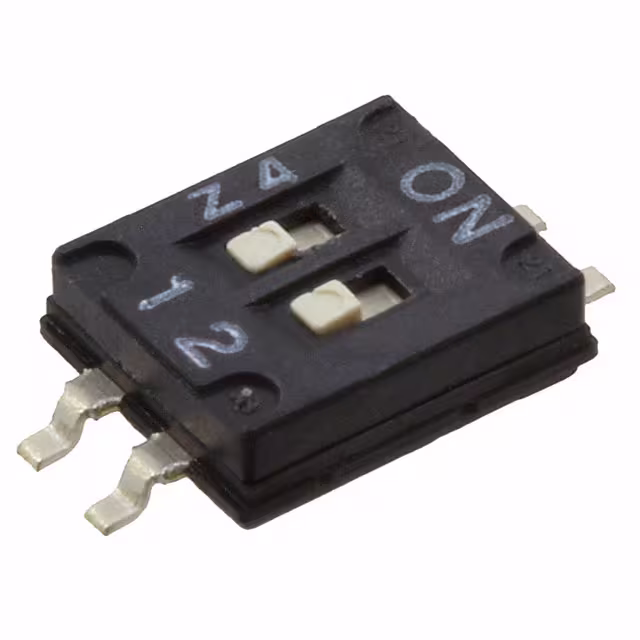

KAN1102RSWITCH SLIDE DIP SPST 0.025A 24V |
2,564 |
|
规格书 |
KAN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

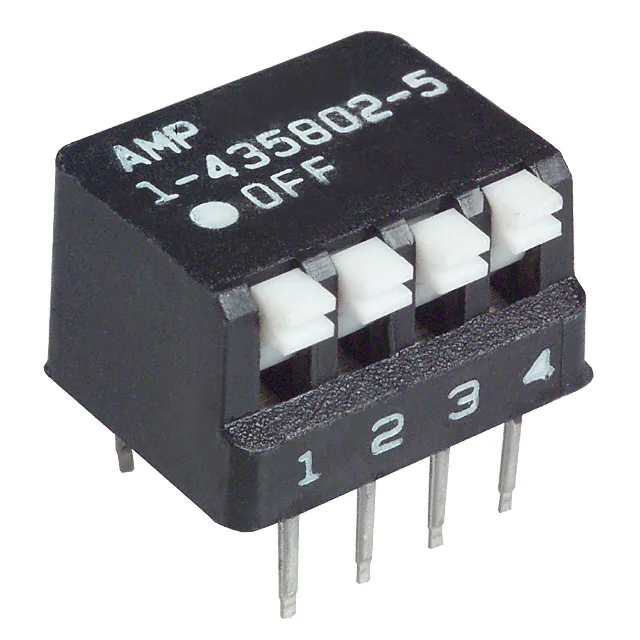

1-435802-5SWITCH PIANO DIP SPST 0.025A 24V |
1,986 |
|
规格书 |
7000 | Tube | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|
|
RDS3-4S-1012-RA-254-DSWITCH ROTARY DIP SPST 0.15A 42V |
1,239 |
|
规格书 |
RDS3-1012-RA | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS6-4S-1011-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
3,237 |
|
规格书 |
RDS6-1011-RA | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS2-4S-1012-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
3,469 |
|
规格书 |
RDS2-1012-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS5-4S-1011-RA-508-D-67SWITCH ROTARY DIP SPST 0.15A 42V |
2,634 |
|
规格书 |
RDS5-1011-RA-67 | Tube | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
RDS3-4S-1012-RA-508-DSWITCH ROTARY DIP SPST 0.15A 42V |
1,766 |
|
规格书 |
RDS3-1012-RA | Tape & Reel (TR) | Active | SPST | - | 150mA | 42VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
