购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-10RASSWITCH SLIDE DIP SPST 0.05A 24V |
3,442 |
|
规格书 |
206RA | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-8LPSTJRSWITCH SLIDE DIP SPST 0.025A 24V |
3,852 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
218-8LPSTJRFSWITCH SLIDE DIP SPST 0.025A 24V |
3,934 |
|
规格书 |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
ADP02SWITCH PIANO DIP SPST 0.025A 24V |
3,114 |
|
- |
ADP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

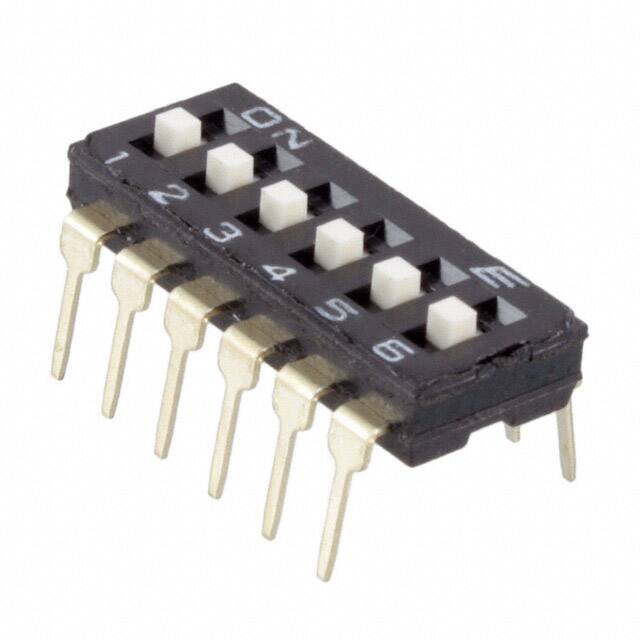

KAE06LAGTSWITCH SLIDE DIP SPST 0.025A 24V |
2,767 |
|
规格书 |
KAE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.169" (4.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
KAE06LGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,496 |
|
规格书 |
KAE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper | Gold | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE06SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
4,178 |
|
规格书 |
KAE | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
KAE05TGGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,402 |
|
规格书 |
KAE | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
KT10ETHSWITCH SLIDE DIP SPST 0.025A 24V |
1,479 |
|
规格书 |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.167" (4.25mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KT10RTHSWITCH SLIDE DIP SPST 0.025A 24V |
2,189 |
|
规格书 |
KT | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
206-125SWITCH SLIDE DIP SPDT 0.05A 24V |
1,508 |
|
规格书 |
206 | Tube | Active | SPDT | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
NDIR02STSWITCH SLIDE DIP SPST 0.025A 24V |
3,972 |
|
规格书 |
NDI | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
NDIR03STSWITCH SLIDE DIP SPST 0.025A 24V |
2,337 |
|
规格书 |
NDI | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
CFS-0602TASWITCH SLIDE DIP SPST 0.1A 6V |
2,772 |
|
规格书 |
CFS | Tape & Reel (TR) | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KAE09TGGTSWITCH SLIDE DIP SPST 0.025A 24V |
1,847 |
|
规格书 |
KAE | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper | Gold | 0.148" (3.75mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|
|
KAJ10SGGTSWITCH SLIDE DIP SPST 0.025A 24V |
3,918 |
|
规格书 |
KAJ | Tape & Reel (TR) | Obsolete | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KE02RXGRSWITCH SLIDE DIP SPST 0.025A 24V |
1,052 |
|
规格书 |
KE | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

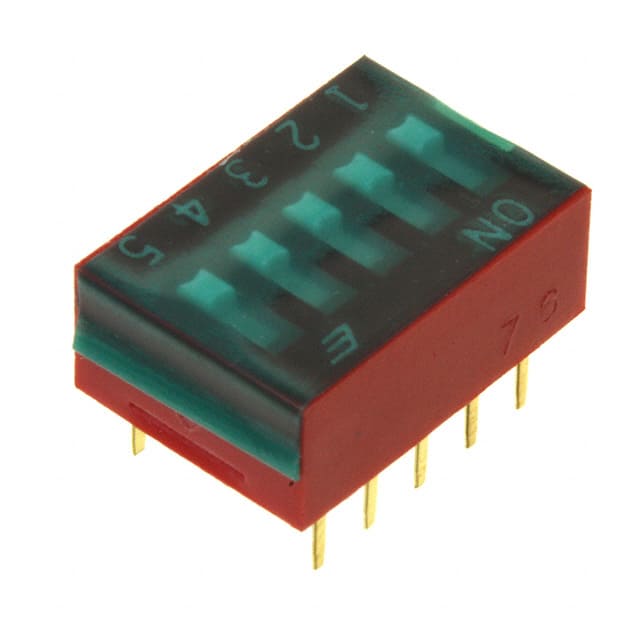

KAS1105RTSWITCH SLIDE DIP SPST 0.025A 24V |
4,508 |
|
规格书 |
KAS | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.236" (6.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
KJ07EXTSWITCH SLIDE DIP SPST 0.025A 24V |
2,382 |
|
规格书 |
KJ | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ07RXTSWITCH SLIDE DIP SPST 0.025A 24V |
1,387 |
|
规格书 |
KJ | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
