购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KG10ESWITCH SLIDE DIP SPST 0.025A 24V |
216 |
|
规格书 |
KG | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.258" (6.55mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01C-254-L-05BESWITCH SLIDE DIP SPST 0.025A 24V |
160 |
|
规格书 |
DS01-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01C-254-S-06BESWITCH SLIDE DIP SPST 0.025A 24V |
355 |
|
规格书 |
DS01-254 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

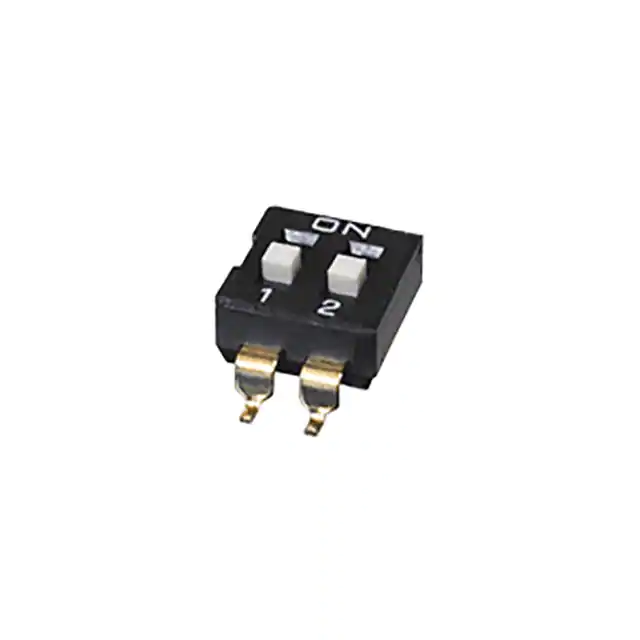

DS04-254-1-02BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
772 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

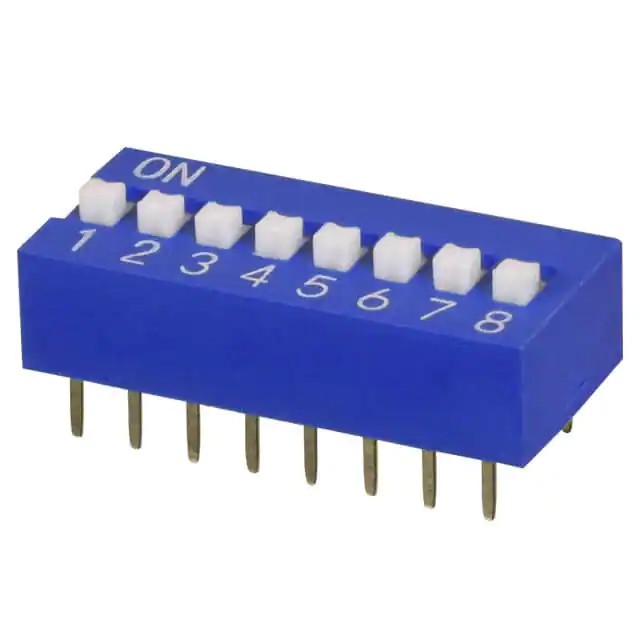

DS01C-254-L-08BESWITCH SLIDE DIP SPST 0.025A 24V |
3,993 |
|
规格书 |
DS01-254 | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
209-4MSSWITCH SLIDE DIP SPST 0.1A 20V |
964 |
|
规格书 |
209 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

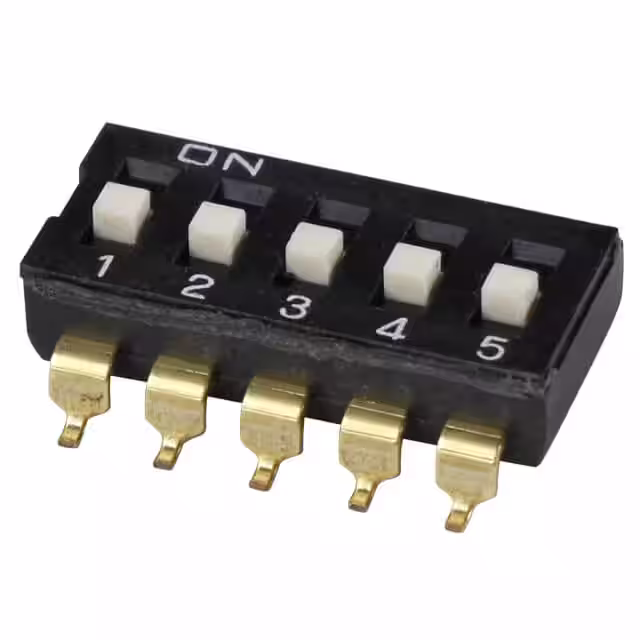

DS04-254-2-05BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
805 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.167" (4.25mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-1-03BK-SMTSWITCH SLIDE DIP SPST 0.025A 24V |
669 |
|
规格书 |
DS04-254-SMT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.189" (4.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-2SWITCH SLIDE DIP SPST 0.05A 24V |
605 |
|
规格书 |
206 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
219-3LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
1,793 |
|
规格书 |
219 | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
418117170902SWITCH SLIDE DIP SPST 0.025A 24V |
4,367 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
7814G-1-023ESWITCH ROTARY DIP SPDT 0.1A 16V |
1,646 |
|
规格书 |
7814 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.100" (2.54mm) | Surface Mount | Gull Wing | - | No | - | -55°C ~ 125°C |
|
418117270910SWITCH SLIDE DIP SPST 0.025A 24V |
2,680 |
|
规格书 |
WS-DITV | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
204-126STSWITCH SLIDE DIP SPDT 0.05A 24V |
4,904 |
|
规格书 |
204 | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
A6SR-6104-PSWITCH PIANO DIP SPST 0.025A 24V |
2,155 |
|
规格书 |
A6SR | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6S-3101-HSWITCH SLIDE DIP SPST 0.025A 24V |
3,540 |
|
规格书 |
A6S-H | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
428527520916SWITCH ROTARY DIP HEX 0.15A 24V |
4,965 |
|
规格书 |
WS-ROTV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
BD05AVSWITCH SLIDE DIP SPST 0.1A 5V |
3,752 |
|
规格书 |
BD | Tube | Active | SPST | 5 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428527320910SWITCH ROTARY DIP BCD 0.15A 24V |
3,367 |
|
规格书 |
WS-ROTV | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
429427320910SWITCH ROTARY DIP BCD 0.15A 24V |
1,112 |
|
规格书 |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
