购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
76RSB04TSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
132 |
|
规格书 |
76 | Tube | Active | SPST | 4 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB02TSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
189 |
|
规格书 |
78 | Tube | Active | SPST | 2 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78B03TSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
5,410 |
|
规格书 |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

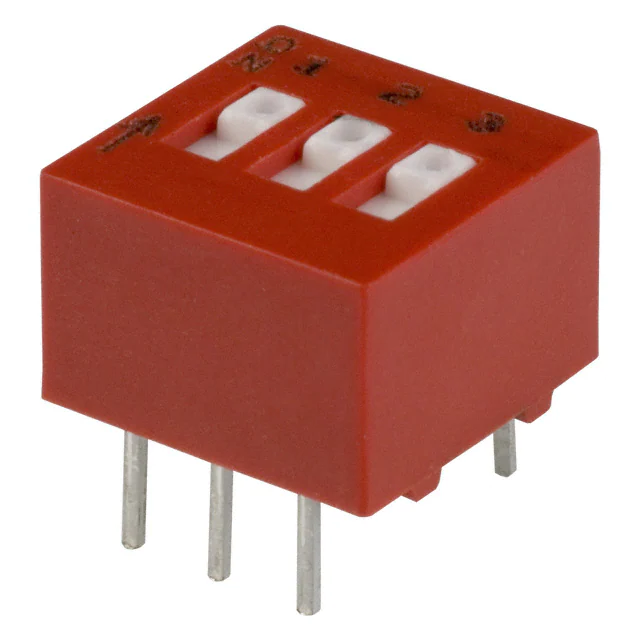

78RB03STSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
7,959 |
|
规格书 |
78 | Tube | Active | SPST | 3 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

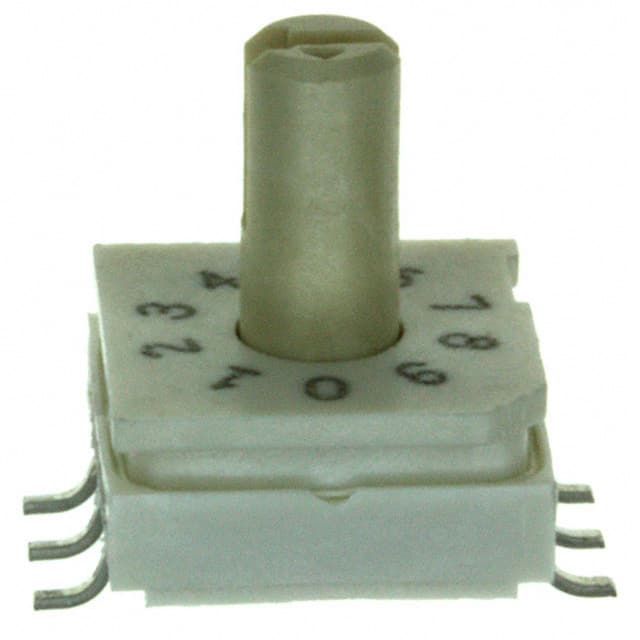

94HBB10WTSWITCH ROTARY DIP BCD 0.1A 50V Grayhill Inc. |
2,137 |
|
规格书 |
94H | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|

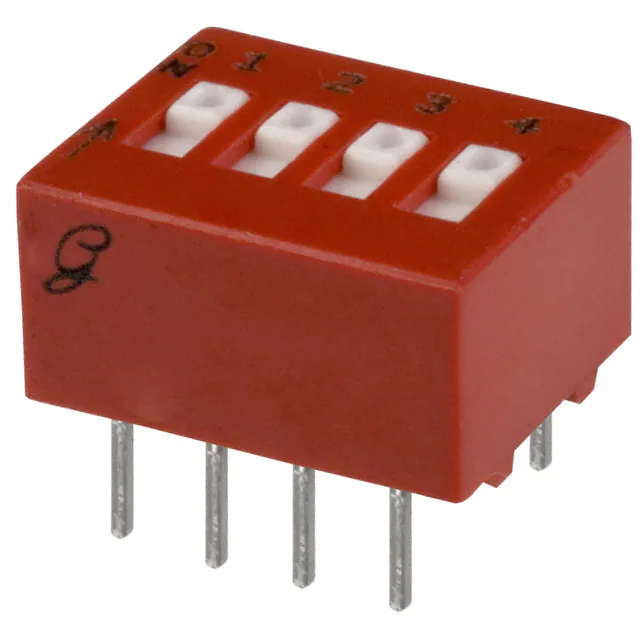

78RB04STSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
5,438 |
|
规格书 |
78 | Tube | Active | SPST | 4 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

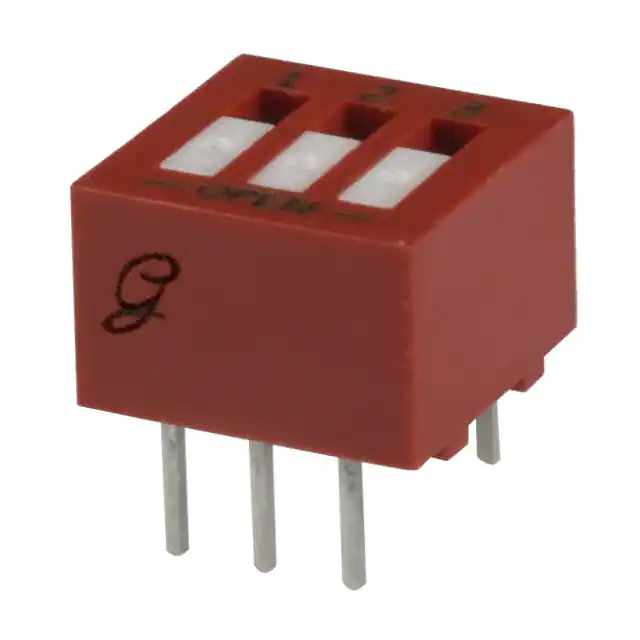

76RSB03STSWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc. |
4,482 |
|
规格书 |
76 | Tube | Active | SPST | 3 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

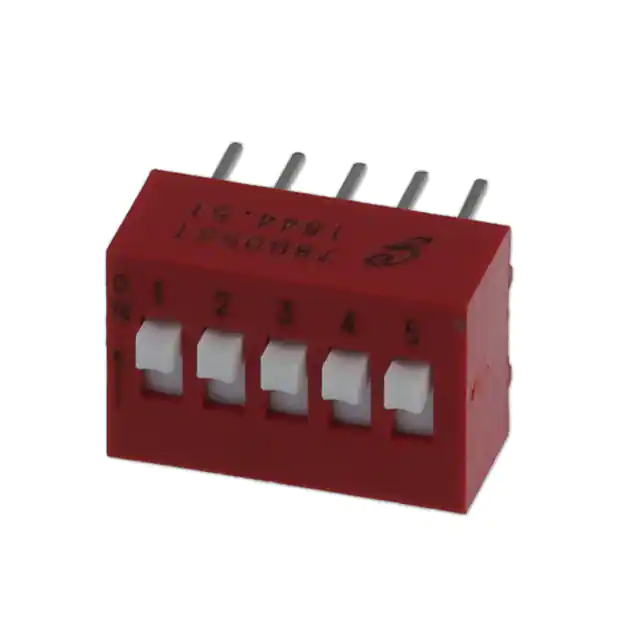

78B05STSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
4,911 |
|
规格书 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

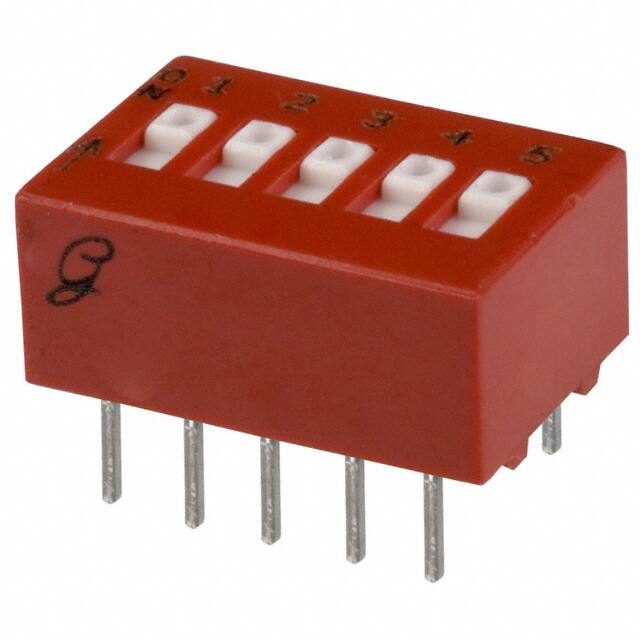

78RB05STSWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc. |
4,130 |
|
规格书 |
78 | Tube | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

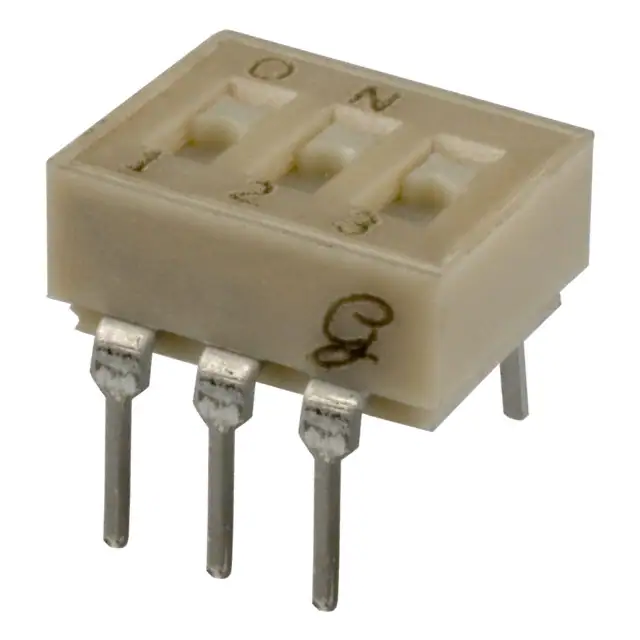

90B03STSWITCH SLIDE DIP SPST 0.025A 24V Grayhill Inc. |
4,766 |
|
规格书 |
90B | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.195" (4.95mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
