购物车DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKN0204000SWITCH SLIDE DIP SPST 0.1A 24V |
716 |
|
规格书 |
IKN | Tape & Reel (TR) | Obsolete | SPST | 2 | 100mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.112" (2.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 100°C |
|
RD07B10RVBTSWITCH ROTARY DIP BCD 0.1A 50V |
193 |
|
规格书 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.291" (7.40mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
DHS10CSWITCH SLIDE DIP SPST 0.1A 6V |
388 |
|
规格书 |
DHS | Bulk | Active | SPST | 10 | 100mA | 6VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 80°C |
|
|
1825428-6SWITCH SLIDE DIP SPST 0.1A 24V |
2,440 |
|
规格书 |
ARE | Tube | Active | SPST | 8 | 100mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

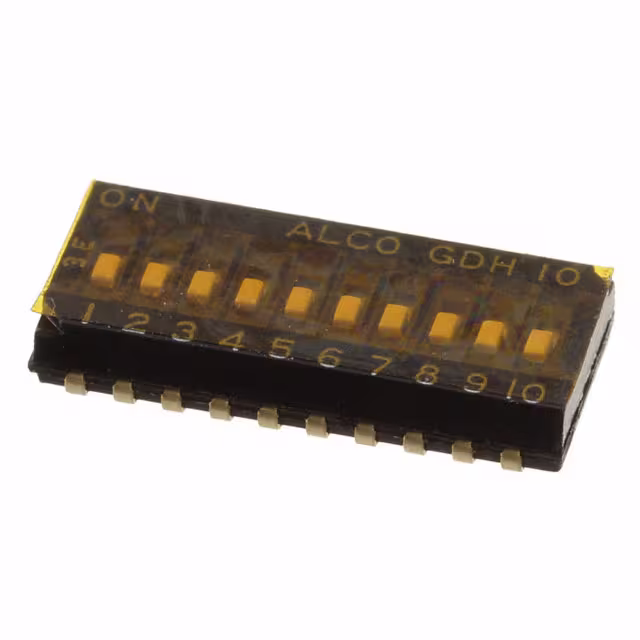

GDH10SA04SWITCH SLIDE DIP SPST 0.025A 24V |
2,289 |
|
规格书 |
GDH | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
|
5161390-5SWITCH SLIDE DIP SPST 0.025A 50V |
3,123 |
|
规格书 |
DIP | Box | Active | SPST | 5 | 25mA | 50VDC | Slide (Standard) | Raised | Phosphor Bronze | Tin | 0.335" (8.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
90HBJ08PRTSWITCH SLIDE DIP SPST 0.025A 24V |
3,751 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

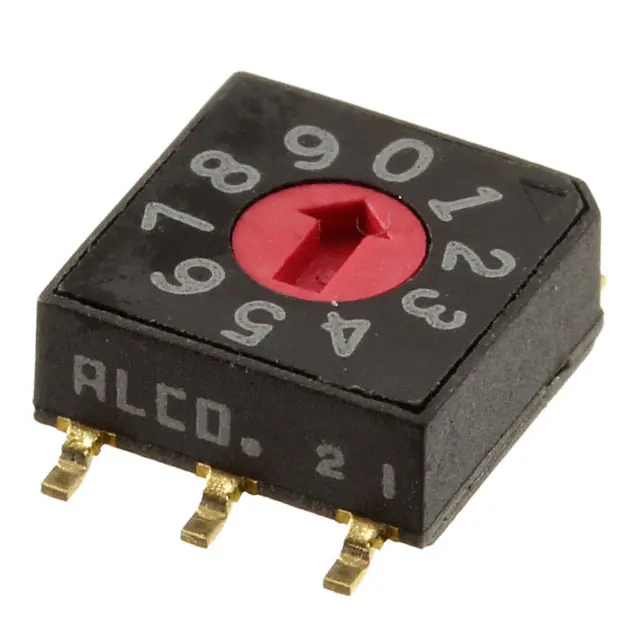

1-1825013-0SWITCH ROTARY DIP BCD 0.4VA 20V |
4,384 |
|
规格书 |
MRD | Tape & Reel (TR) | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
94HBB10WRTSWITCH ROTARY DIP BCD 0.1A 50V |
1,667 |
|
规格书 |
94H | Tape & Reel (TR) | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed | -40°C ~ 85°C |
|
|
SMR7110C-1ESW ROTARY DIP BCD COMP 0.03A 15V |
1,906 |
|
规格书 |
SMR | Tape & Reel (TR) | Active | BCD Complement | 10 | 30mA | 15VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
|
A6SN-6101-R100SWITCH SLIDE DIP SPST 0.025A 24V |
114 |
|
规格书 |
A6SN | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
90HBW05PRTSWITCH SLIDE DIP SPST 0.025A 24V |
2,185 |
|
规格书 |
90HB | Tape & Reel (TR) | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

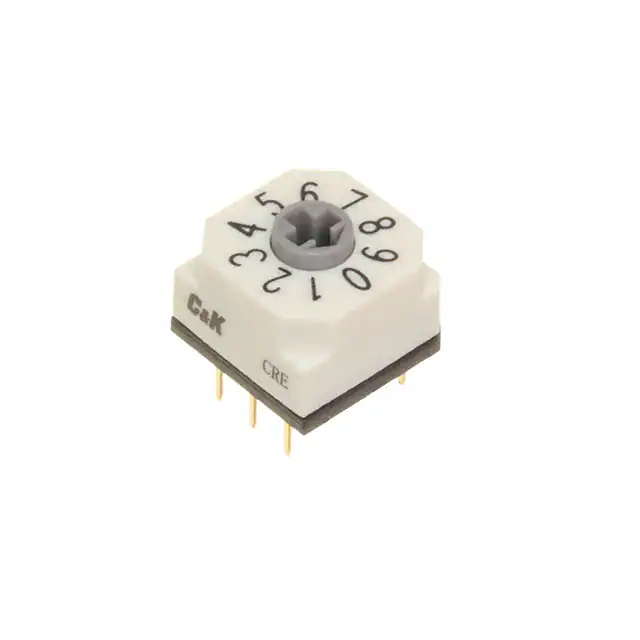

CRE10ROTP1CSWITCH ROTARY DIP BCD 0.15A 42V |
3,252 |
|
规格书 |
CRE | Bulk | Active | BCD | 10 | 150mA | 42VDC | Rotary for Tool | Raised | Brass | Gold | 0.370" (9.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
A6H-0102-R100SWITCH SLIDE DIP SPST 0.025A 24V |
1,890 |
|
规格书 |
A6H | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -20°C ~ 70°C |
|
|
JS0304PP4SWITCH PIANO DIP SPST 0.025A 24V |
4,922 |
|
规格书 |
JS | Bulk | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.362" (9.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 70°C |
|
GDH06SATR04SWITCH SLIDE DIP SPST 0.025A 24V |
7,285 |
|
规格书 |
GDH | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.093" (2.35mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|
3-5435640-0SWITCH ROCKER DIP SPST 0.06A 5V |
1,986 |
|
规格书 |
7100 | Tube | Obsolete | SPST | 3 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
76RSB06TSWITCH ROCKER DIP SPST 0.15A 30V |
1,059 |
|
规格书 |
76 | Bulk | Active | SPST | 6 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
78RB06STSWITCH SLIDE DIP SPST 0.15A 30V |
1,528 |
|
规格书 |
78 | Bulk | Active | SPST | 6 | 150mA | 30VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.265" (6.73mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78B05SRATSWITCH SLIDE DIP SPST 0.15A 30V |
3,465 |
|
规格书 |
78 | Bulk | Active | SPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
